8.2.1. Create a new punch

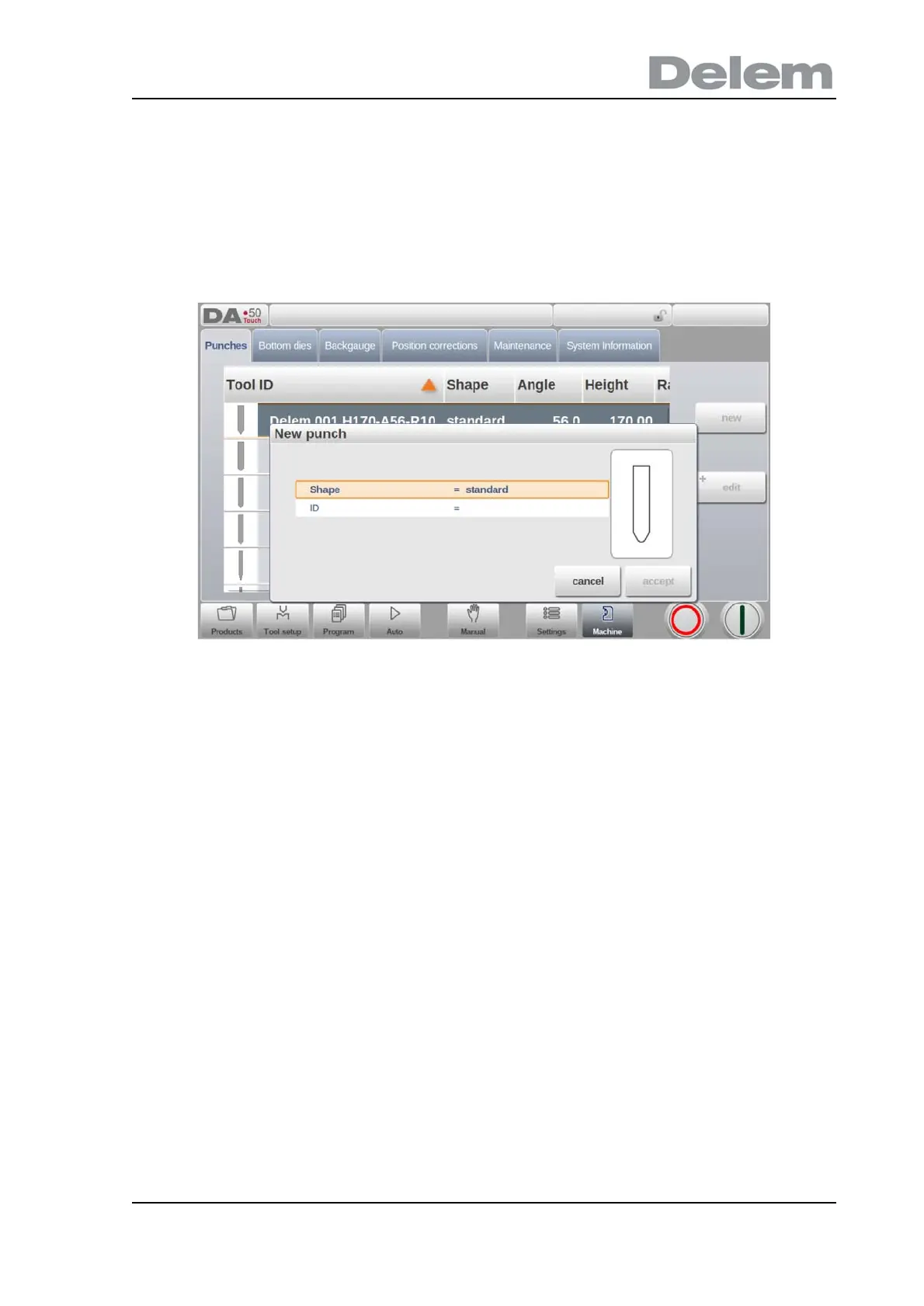

To create a new punch, tap New in the library. The punch profile can be created with help of
the programming facilities of the control.
First the shape of the punch and its ID must be programmed. After that the shape details must
be programmed following the wizard.
Shape
A selection must be done from the different available basic punch shapes corresponding
to the required punch action. Options are:
• Standard Punch shape as normally used for air bending and basic bottoming.
• Hem Bend Punch as typical tool with flat bottom for specific hem bends.
• Air + Hem Bend Punch as tool for normal air bends and hem function.
• Big Radius Punch shape especially for big radius bends.
ID
A unique name or number to identify the tool. The maximum length is 25 characters.
The ID parameter may also contain alphanumeric characters. When finished, use Accept to
leave this window and start with the tool data parameters. The control will prompt a window for
the tool properties with the dimensions of the tool.
Depending on the chosen basic shape, the parameters will differ. In the following paragraphs
the available punch shapes are described in detail.
