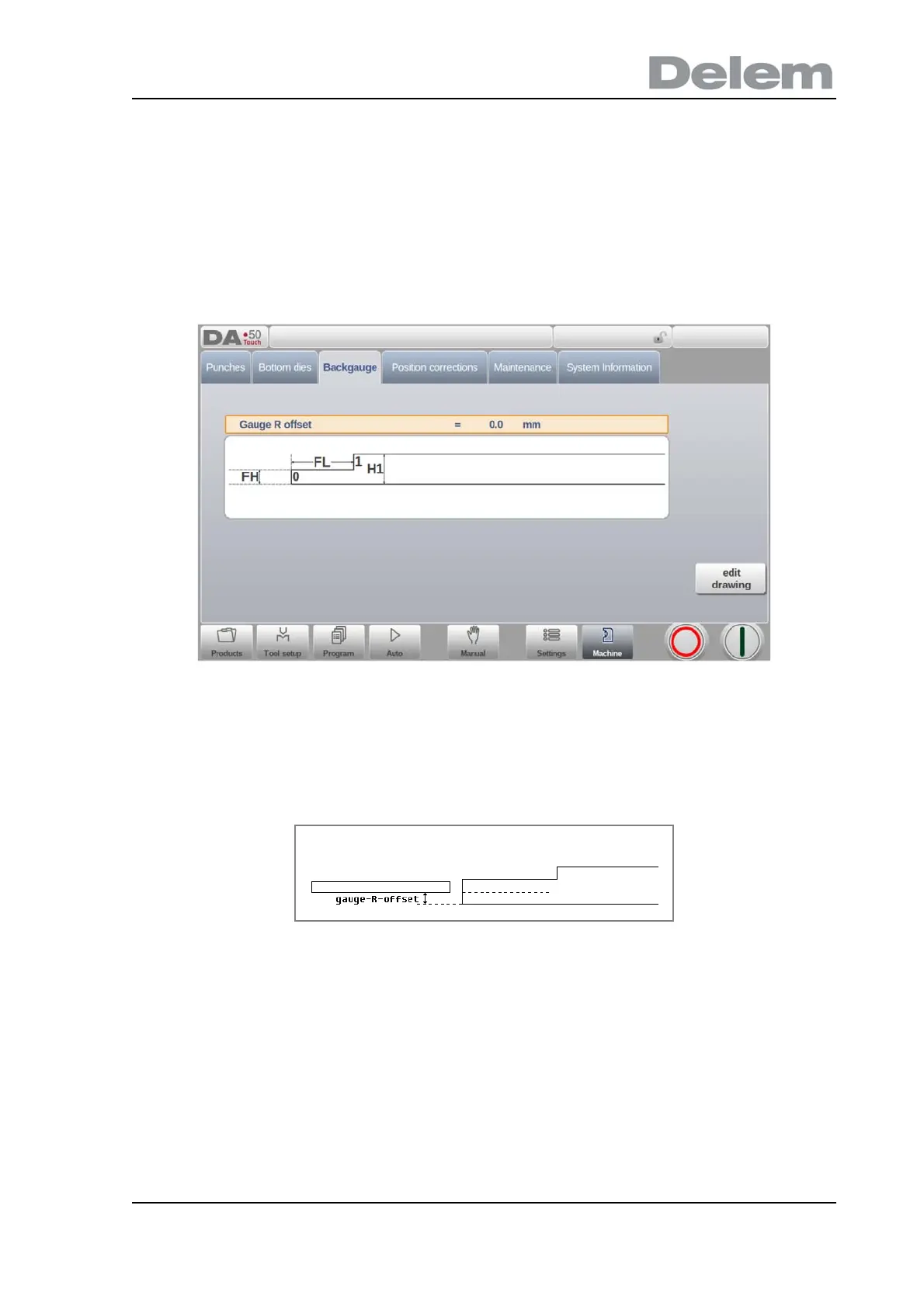

8.4. Backgauge
With the backgauge finger dimensions the R-axis movement and related X-axes movement is
taken into account. Also the workpiece / backgauge collision is computed using the
dimensions.
Gauge R offset
An offset value for the R-axis can be set if the backgauge is positioned against the sheet
edge and the X-axis position is outside the die safety zone.
A negative value gives a lower backgauge position. This offset is only valid for gauge
position 0.
Finger width
The width of the backgauge finger. Only available when an automatic Z-axis has been
