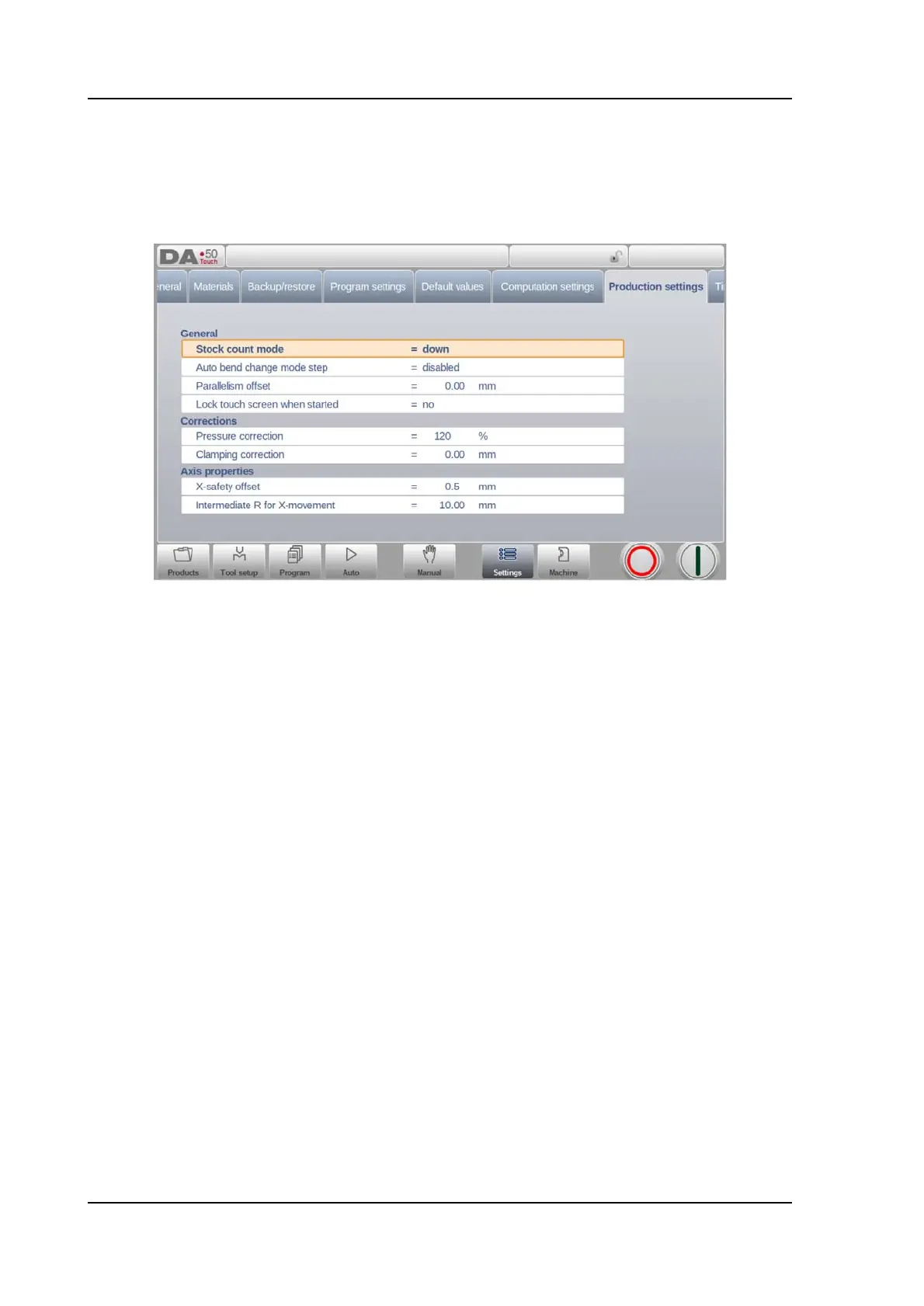

7.8. Production settings
Stock count mode
Setting for the stock counter in production mode, to have the stock counter (product
counter) count up or down.
When down counting is selected, the stock counter in production mode is decremented
after each product cycle. When the counter has reached zero, the control is stopped. On
the next start action, the stock counting value is reset to its original value.
When up counting is selected, the counter is incremented after each product cycle.
Down counting can be useful if a pre-planned quota must be produced. Up counting
could be used to give a report on production progress.
Auto bend change mode step
This parameter can be used to have automatic step change in the bending process with
the Step mode enabled.
disabled => No automatic step change (next bending parameters active) will take
place. To perform the next bending you must select the new bending and press the start
button.
enabled => The next bending parameters are loaded automatically but the axes
will start positioning after the start button has been pressed.
Parallelism offset
An overall parallelism, valid for the complete Y-axis stroke, can be programmed with this
parameter. The programmed value will be checked against the maximum allowed value
during production. The parallelism which can be programmed for each bending (Y2) is
only active below the clamping point. The parallelism below the clamping point is the
sum of the two parameters (Y2 + Parallelism offset).
