4.2.
Program mode, p
a
rameter explanation

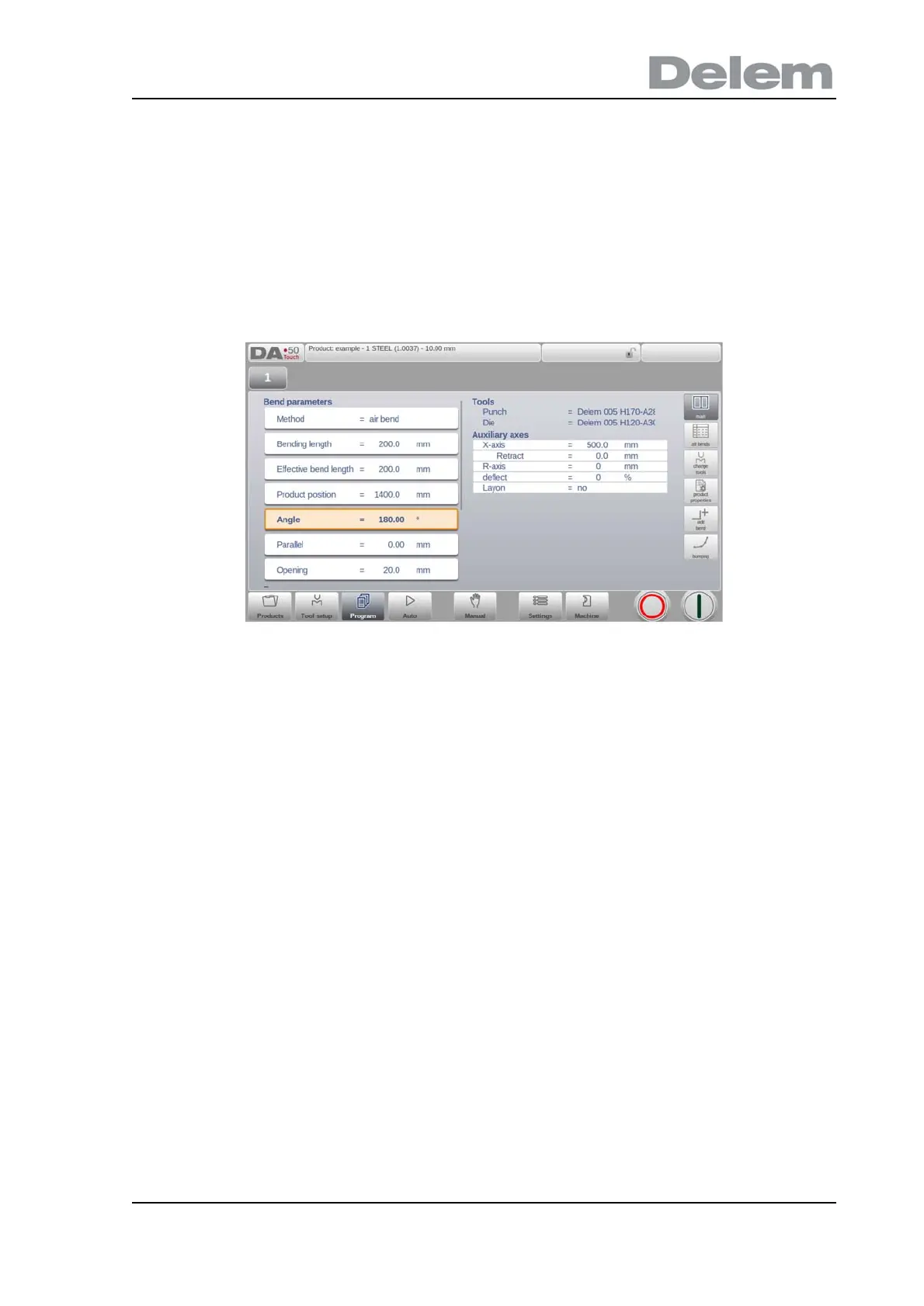

The main screen shows the avail
able bends and
from this main screen, from every availab
le
bend, specific p
aremeters can be viewed and e
dited.
The product ID and product description are di
splaye
d in the top row on the screen.
4.2.1.
Bend parameters
Method
Select the required bending method. The control su
pports the following
standard
methods:
•
air bend
•
bottoming
•
hemming
•
hemming & bottoming
32
34
Table of Contents
Table of Contents
3
Operation Overview and General Introduction
7
The Control Unit
7
Front Control Elements
8
USB Connectors
9
Operation and Programming Modes
10
Getting Started
13
Introduction
13
Preparations
13
Modifying a Program
13
The Auto Menu and Manual Menu, Production Modes
13
Back-Up Data, External Storage
14
Programming Aids
15
Listbox Functionality
15
Parameter Zoom Functionality
16
Navigation
17
Text Input and Editing
17
Typing Alphanumeric Characters Vs. Special Characters
18
Messages Centre
19
Keylock Function
19
Manual Positioning
21
Software Versions
22
Products, the Product Library
23
Introduction
23
The Main View
23
Product Selection
24
New Program, Starting a Numerical Program
25
Edit, Copying and Deleting a Product or Program
26
Product Rename
27
Tool Configuration
29
Introduction
29
Standard Procedure
29
Tool Selection
30
Product Programming
31
Introduction
31
Program Mode, Parameter Explanation
33
Bend Parameters
33
Force
36
Speed
36
Functions
36
Product Properties
37
Tools
37
Auxiliary Axes
37
Edit / View Modes
38
All Bends
38
Change Tools
40
Product Properties
41
Add Bend
44
Bumping
45
Programming Parameters
47
Automatic Mode
49
Introduction
49
Auto Mode, Parameter Explanation
50
Corrections
50
General Corrections
51
General
51
View Modes
52
Main
53
Bend Selector
53
All Bends
54
Macro
55
Manual Positioning
56
Corrections
57
Calculate Corrections, Programming of Measured Angles
58
Diagnostics
59
Bumping Correction
60
Manual Mode
61
Introduction
61
Manual Mode, Parameter Explanation
62
Bend Parameters
62
Force
64
Speed
64
Functions
64
Product Properties
64
Tools
65
Auxiliary Axes
65
Tool Setup
66
Programming Parameters & Views
67
View
67
Macro
69
Manual Movement of the Axes
70
Movement Procedure
70
Teach
71
Corrections
72
Diagnostics
73
IO Status
74
Zoomed IO
75
Settings
77
Introduction
77
General
78
Materials
80
Backup / Restore
83
Product Backup
84
Product Restore
86
Tool Backup
88
Tool Restore
89
Backup and Restore for Tables and Settings
89
Directory Navigation
90
Program Settings
91
Default Values
94
Computation Settings
96
Production Settings
98
Time Settings
101
Machine
103
Introduction
103
Programming of Punches
104
Create a New Punch
105
Standard Punch
106
Hem Bend Punch
109
Air + Hem Bend Punch
110
Big Radius Punch
112
Programming of Bottom dies
113
Create a New die
114
Standard die
115
Hem Bend die
118
Inside Hem Bend die
119
Air + Hem Bend U die
122
Backgauge
123
Position Corrections
126
Maintenance
127
System Information
128
Parameter Index
131
