V0817, 7.12
7.4.3.
T
ool backup
T
o make a
backup of tools to disk, choose ‘tools’ in the Backup section on the Backup/restore
page.

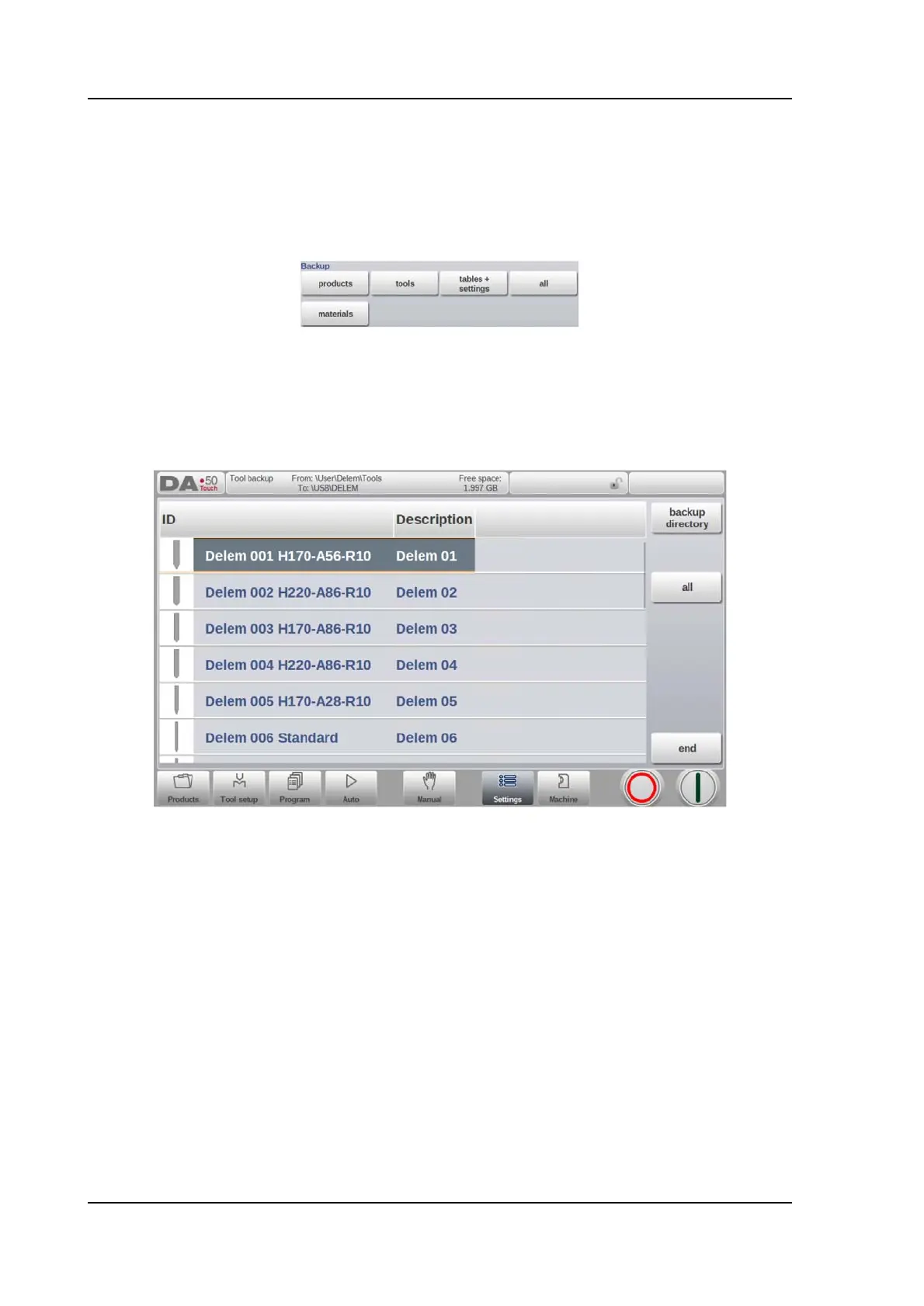

When the initial backup directory has b
een set, the tools backup screen appears.
With this menu a back-up of tools on the c
ontrol can be made: punches, dies or machine
shapes. The procedures for a tool back-up run
similar to the procedures for a product ba
ck-
up.
87
