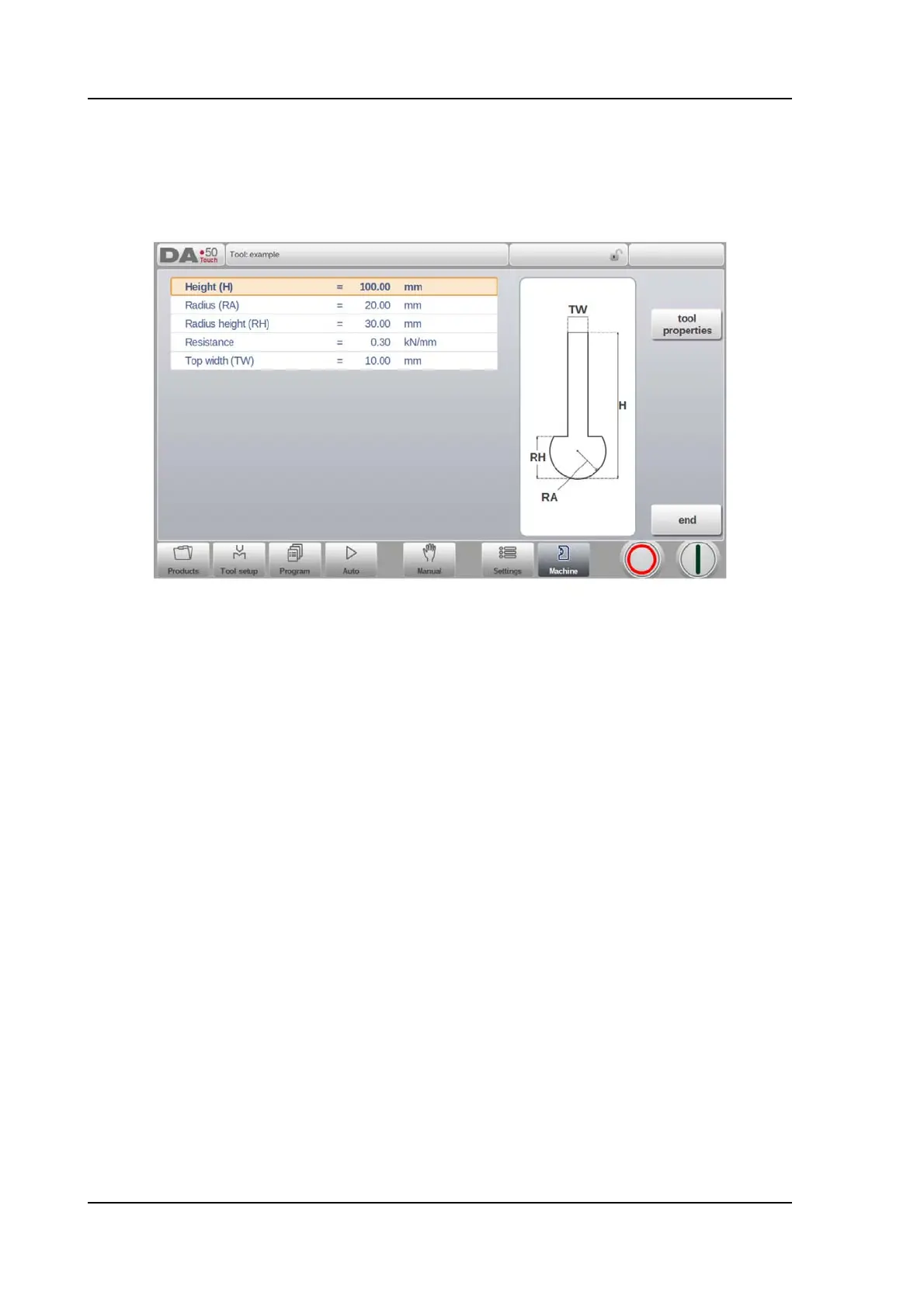

8.2.5. Big radius punch
Height
The total height of the tool. Important: this height value will be used in the bend depth
calculation.
Radius
The radius of the punch tip.
Radius height
The height of the big radius part of the tool.
Resistance
Maximum allowable force on the tool.
Top width
The width of the tool on the top side of the punch.
