V0817, 8.7

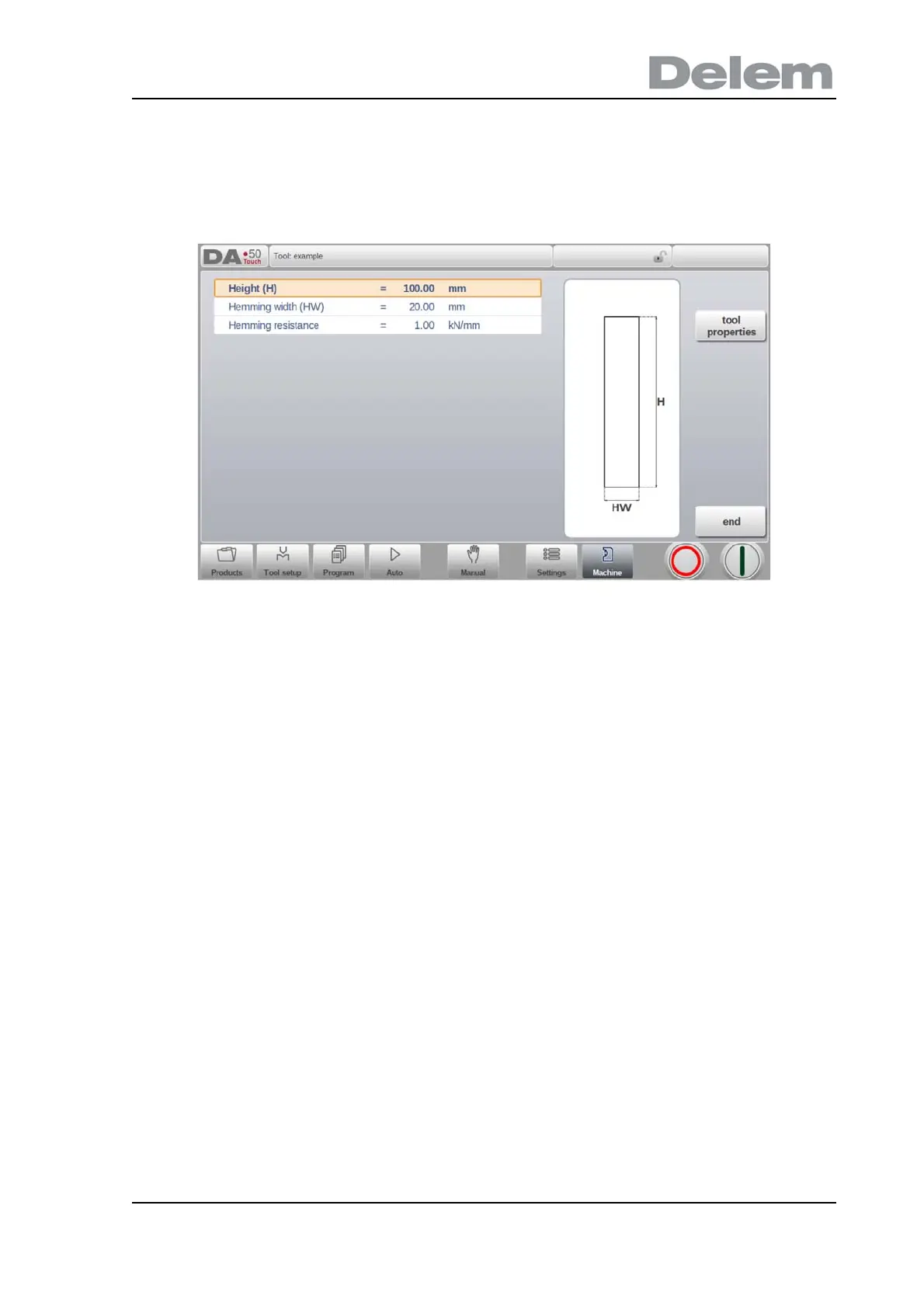

8.2.3. Hem bend punch
Height
The total height of the tool. Important: this height value will be used in the bend depth
calculation.
Hemming width
The width of the tool to program.
Hemming load opening
Depending on the construction of your machine you can program here an opening
position for your punch at which position you can put in your product to hem the
particular bend. The opening position will also take twice the sheet thickness into
account.
Hemming resistance
Maximum allowable force on the tool during hemming.
