V0817, 7.20

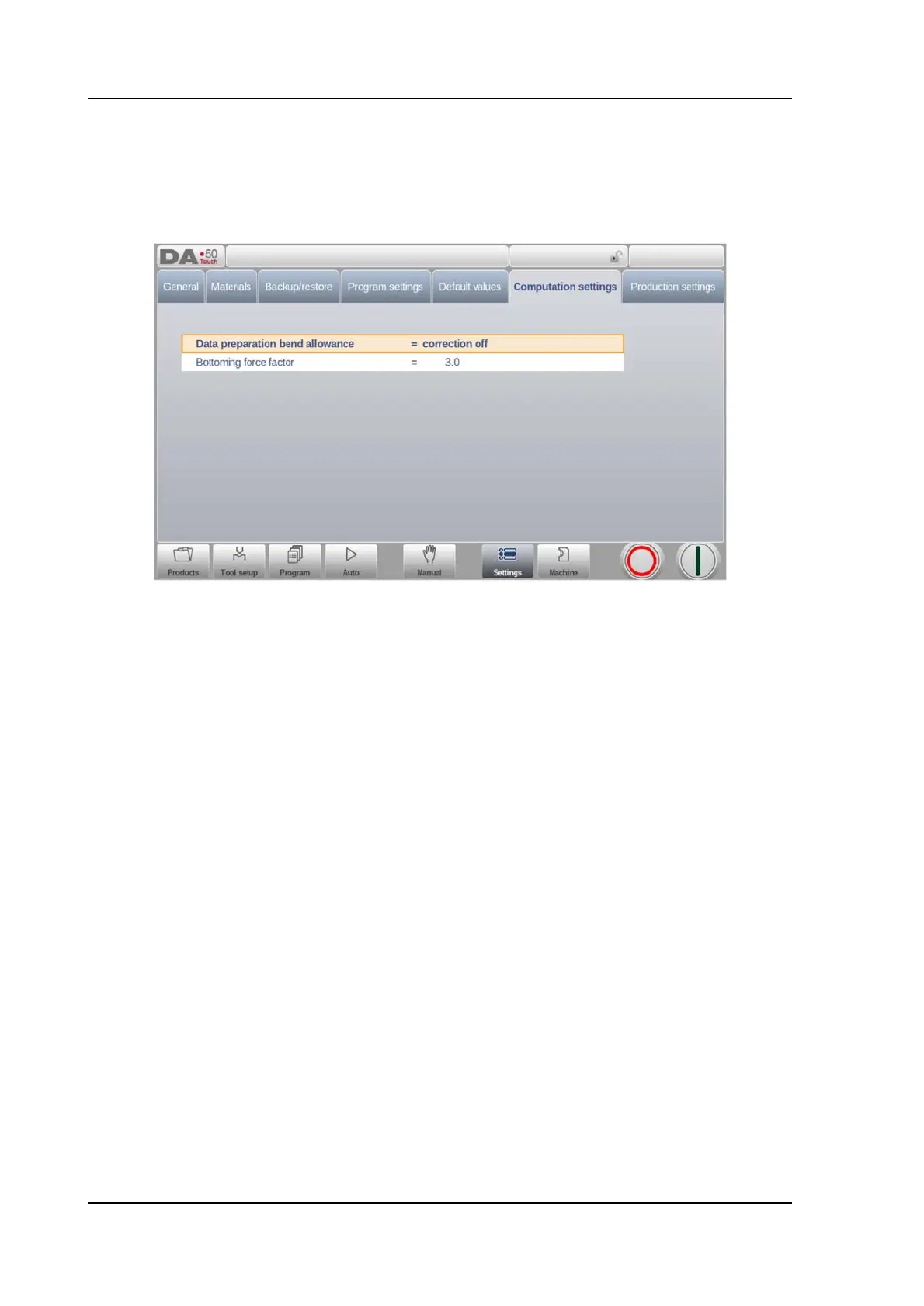

7.7. Computation settings
Data preparation bend allowance
correction off => no bend-allowance added to numerical programming
correction on => bend-allowance correction added to numerical programming
With this parameter you can choose whether or not you wish to have programmed
values corrected for bend-allowance. This setting only refers to corrections during
product programming in the Program mode. If a numeric program has been entered with
Corrections On, the axis corrections are calculated and stored in the program. These
corrections can be viewed and edited in production mode (see 'Auto mode').
Bottoming force factor
The force needed for an air bend is multiplied by this factor in order to obtain the
bottoming force.
Z-distance
The distance from the edge of the finger to the corner of the sheet.
When an automatic Z-axis has been installed, the positions of the fingers are calculated
