V0817, 4.11

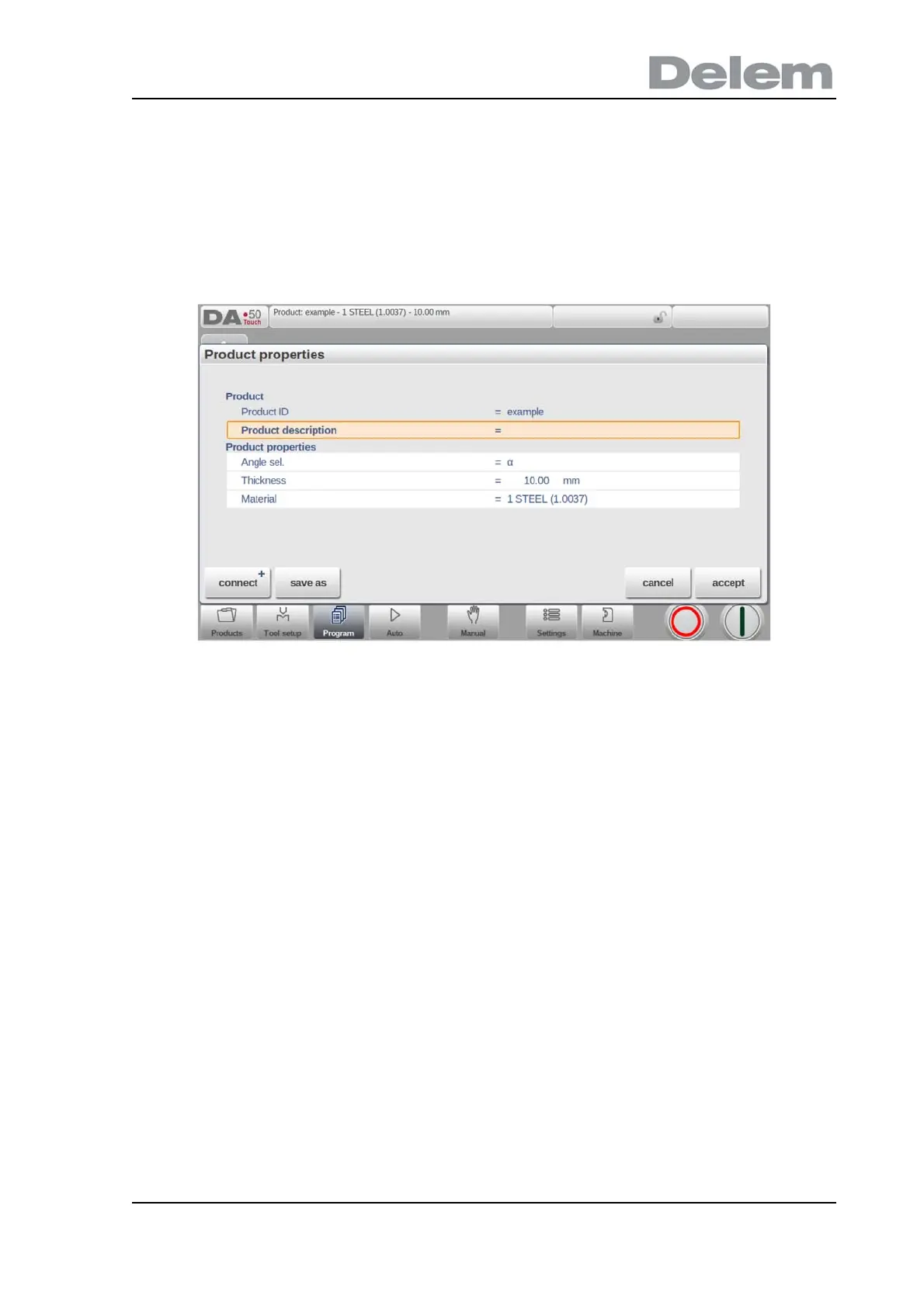

4.3.3. Product properties
To change the main product properties tap Product Properties. These parameters of the
program are the same for every bend of the program (main data of program).
Parameter explanation
Product ID
A unique name to identify a product program. The maximum length is 25 characters.
The product ID may contain letters and numbers.
Product description
A number or description of this program. The maximum length is 25 characters. The
product description may contain letters and numbers.
Angle sel.
Selection of the programming mode for the Y-axis.
0 = absolute: program the absolute Y-axis position for a bend.
1 =
program the angle to bend. The required Y-axis position is computed.
Depending on this parameter, either the parameter Angle or the parameter Bend
Position will appear in a bend step.
Thickness
Thickness of the sheet.
