V0817, 8.23

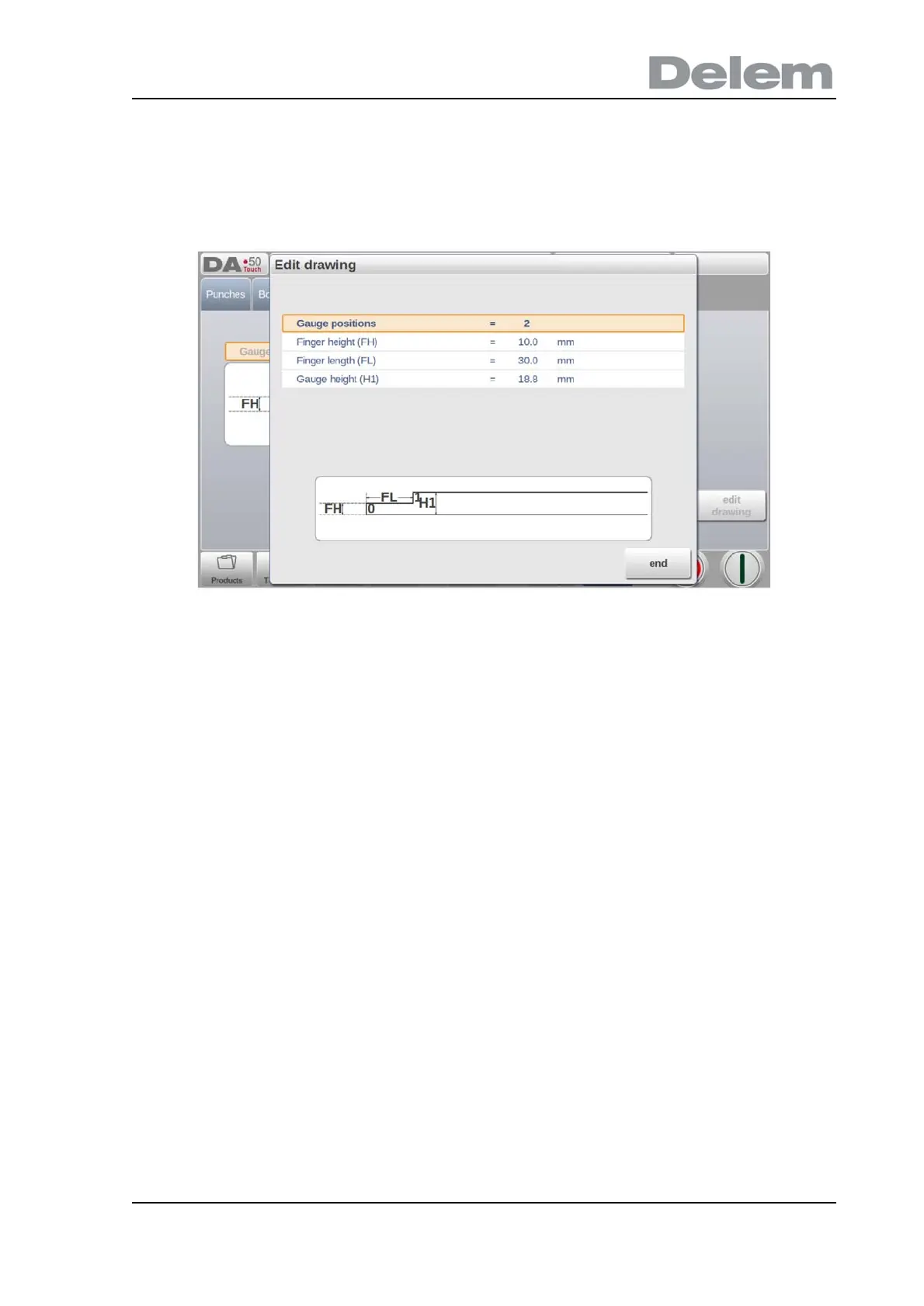

Tap Edit Drawing to make the backgauge drawing appear wherein the dimensions of the
backgauge finger can be programmed.
The following parameters describe the dimensions of the backgauge and the lay-on positions.
The number of parameters that has to be programmed depends on the number of gauge
positions. If more gauge positions are programmed, more parameters are offered. The
illustration at the bottom of the screen will change according to the number of gauge positions.
Gauge positions
The number of possible gauge positions (max. 4). When this parameter is changed, a
new finger geometry appears, and the finger dimensions can be programmed.
Finger height (FH)
The height (or thickness) of the first backgauge finger tip.
Finger length (FL)
The length of the first lay-on level.
Gauge height (H1)
The height of the first lay-on level.
