4 Keep the Phillips #2 screwdriver ready.
Steps
1 If you are using an existing heat sink, remove the thermal grease from the heat sink by using a clean lint-free cloth.
2 Use the thermal grease syringe included with your processor kit to apply the grease in a thin spiral on the top of the processor.
CAUTION: Applying too much thermal grease can result in excess grease coming in contact with and contaminating the
processor socket.
NOTE: The thermal grease syringe is intended for one-time use only. Dispose of the syringe after you use it.

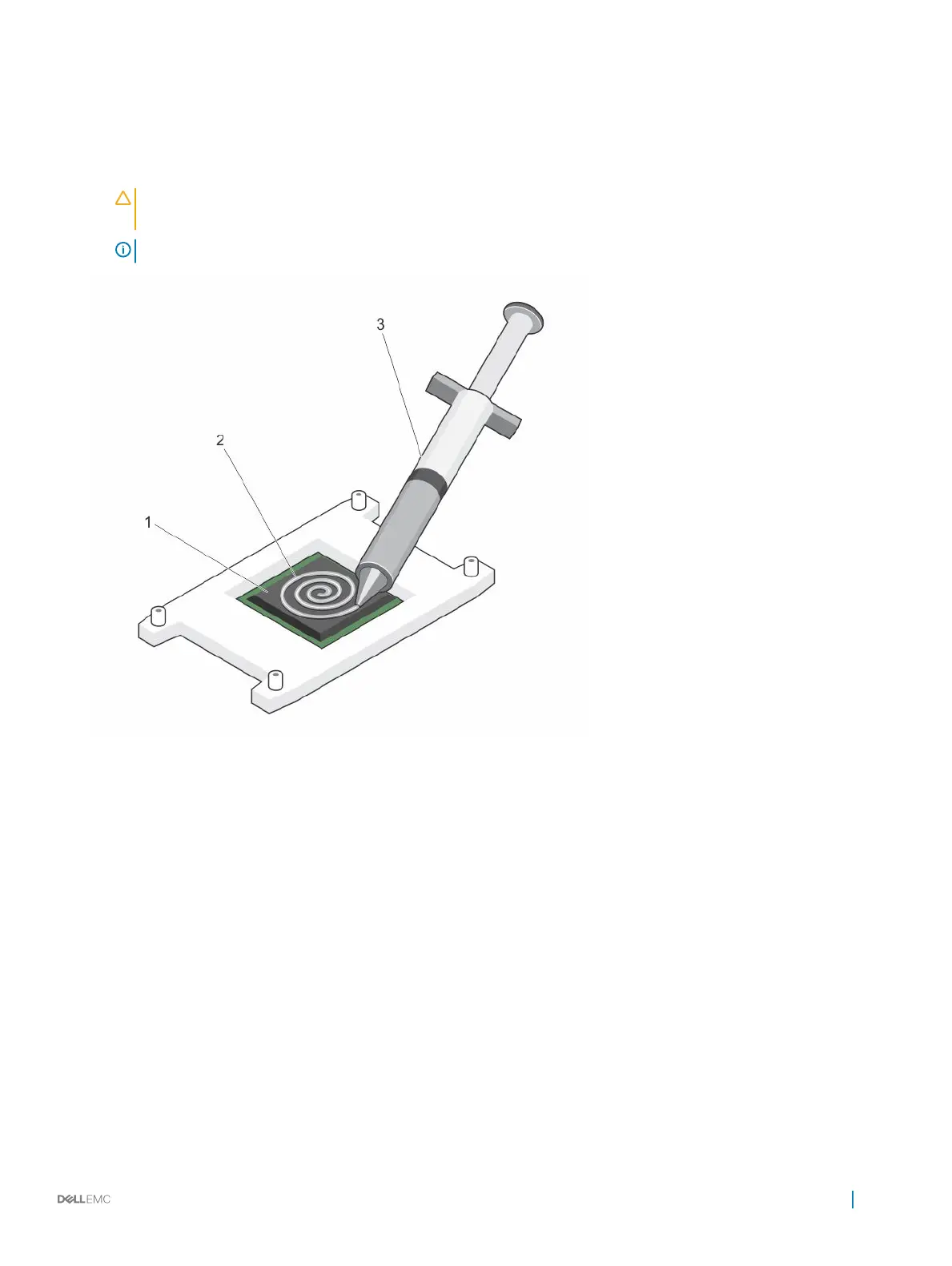

Figure 58. Applying thermal grease on the top of the processor
1
processor 2 thermal grease
3 thermal grease syringe
3 Place the heat sink onto the processor.
4 Tighten one of the four screws to secure the heat sink to the system board.
5 Repeat the procedure for the remaining two screws.
Next steps
1 Follow the procedure listed in the After working inside your appliance section.
2 While booting, press F2 to enter System Setup and verify that the processor information matches the new appliance configuration.
3 Run the system diagnostics to verify that the new processor operates correctly.
