Dell EMC VxRail P470 - Installing an Expansion Card into the Expansion Card Riser 2 or 3

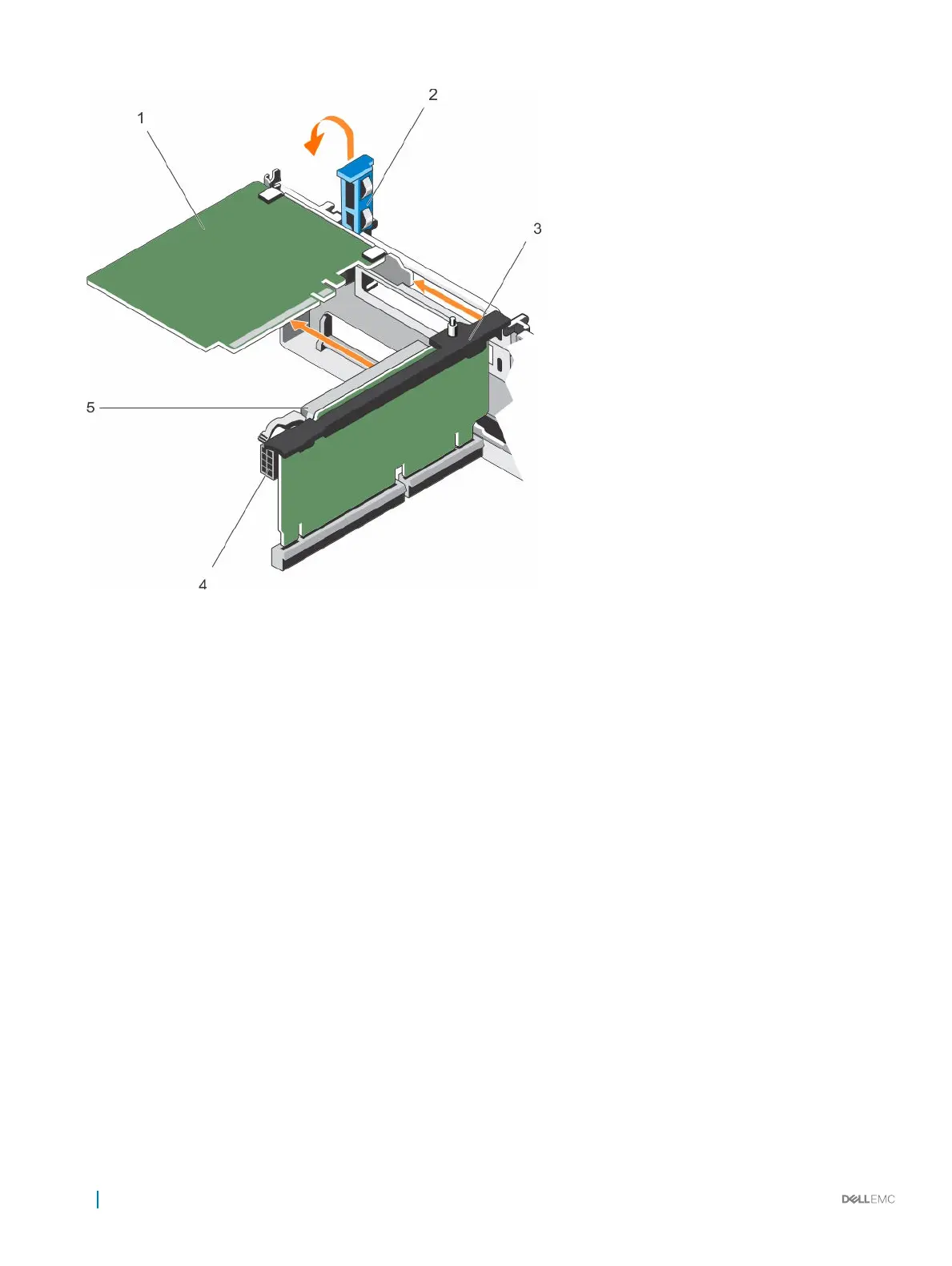

Figure 31. Removing an expansion card from expansion card riser 2 or 3
1
expansion card 2 expansion card latch
3 expansion card riser 4 power connector
5 expansion card connector
Next steps
1 Install an expansion card into the expansion card riser.
2 Follow the procedure listed in the After working inside your appliance section.
Installing an expansion card into the expansion card riser 2 or 3
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your appliance section.
Steps
1 Unpack the expansion card and prepare it for installation.
For instructions, see the documentation accompanying the card.
2 Lift the expansion card latch and remove the filler bracket.
3 Holding the card by its edges, position the card so that the connector on the expansion card aligns with the expansion card connector
on the riser.
4 Insert the card-edge connector firmly into the expansion card connector until the card is fully seated.
5 Press the touch points to open the expansion card locking tabs.
74
Installing and removing components
