Dell EMC VxRail P470 - Installing a Processor

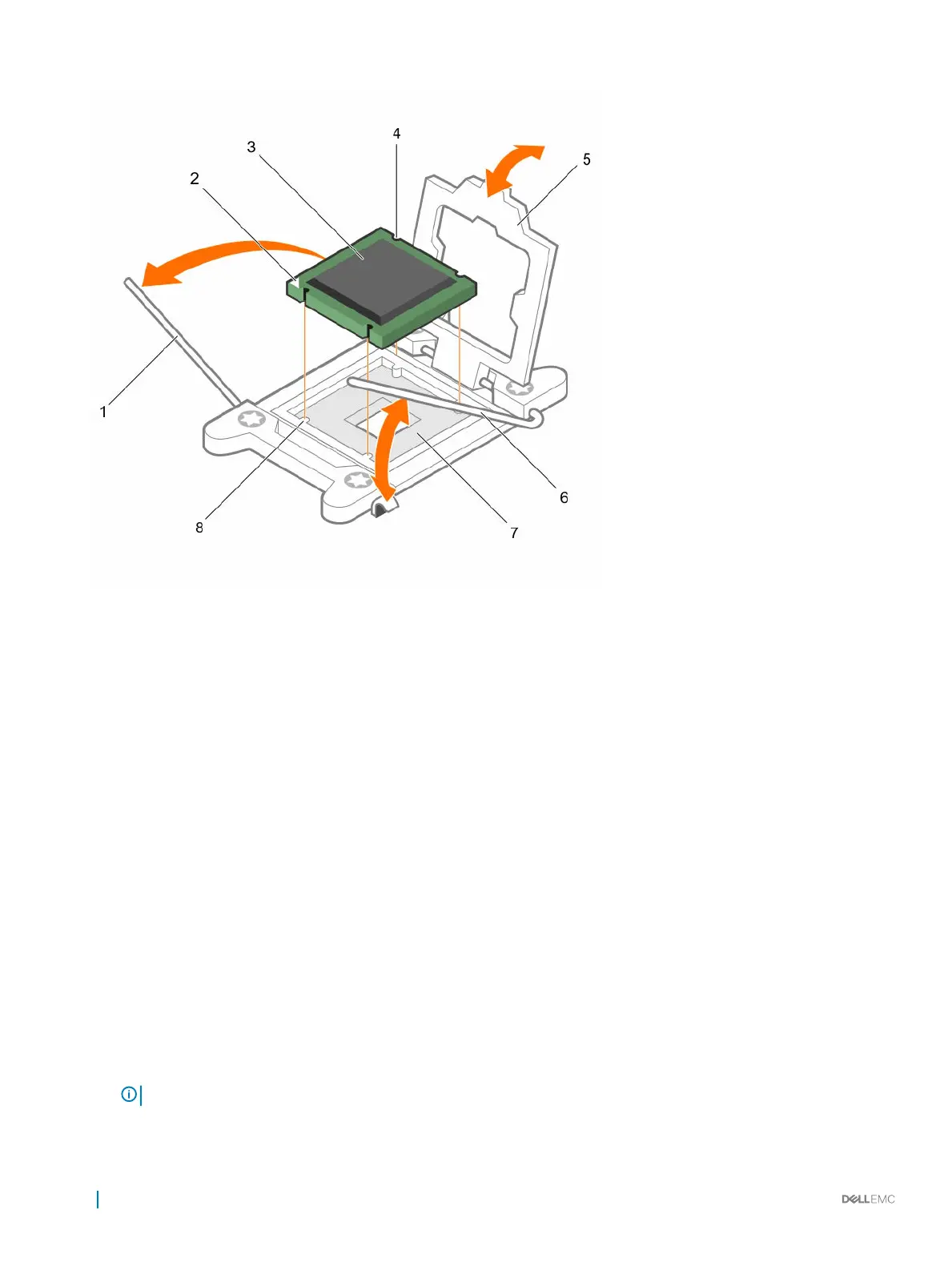

Figure 56. Removing a processor
1
close first socket-release lever 2 pin-1 indicator of processor
3 processor 4 slot (4)
5 processor shield 6 open first socket-release lever
7 socket 8 socket keys (4)
Next steps
1 Replace the processor(s).
2 Install the heat sink.
3 Reinstall the cooling shroud.
4 Follow the procedure listed in the After working inside your appliance section.
Installing a processor
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your appliance section.
3 Keep the Phillips #2 screwdriver ready.
4 Remove the cooling shroud.
NOTE
: If applicable, close the expansion card latch on the cooling shroud to release the full length card.
5 If connected, disconnect the cables from expansion card(s).
6 If installed, remove the expansion card riser.
