3 Lower the open first socket-release lever to lift the processor shield.
4 Hold the tab on the processor shield and lift the processor shield until the open first socket-release lever lifts up.
CAUTION: The socket pins are fragile and can be permanently damaged. Be careful not to bend the pins in the socket
when removing the processor out of the socket.
5 Lift the processor out of the socket and leave the open first socket-release lever up.
NOTE: If you are permanently removing the processor, you must install a socket protective cap in the vacant socket to
protect the socket pins and keep the socket free of dust.
NOTE: After removing the processor, place it in an anti-static container for reuse, return, or temporary storage. Do not
touch the bottom of the processor. Touch only the side edges of the processor.

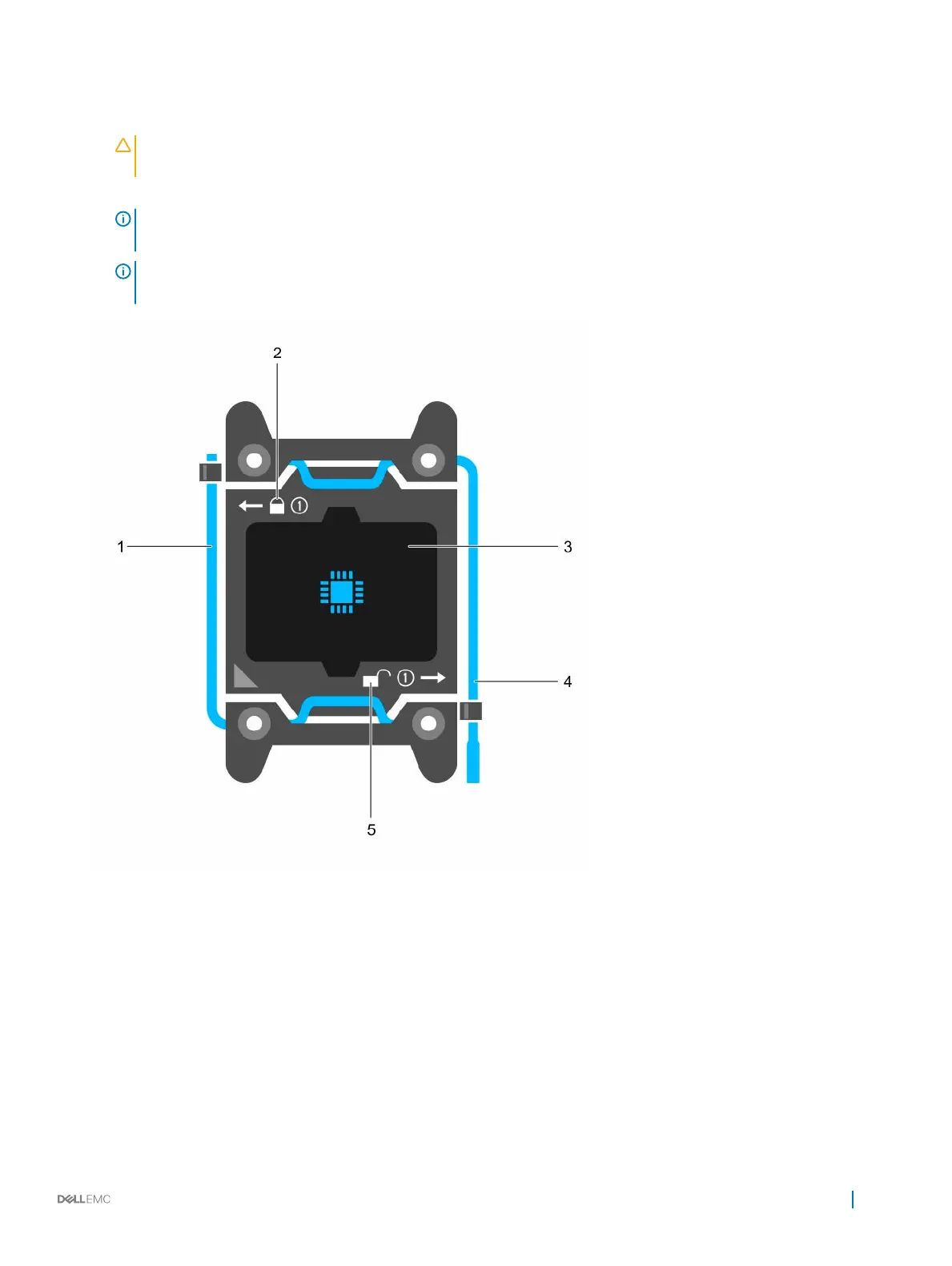

Figure 55. Processor shield
1
close first socket release lever 2 lock icon
3 processor 4 open first socket release lever
5 unlock icon
Installing and removing components 99
