Dell EMC VxRail P470 - GPU Card Installation Guidelines

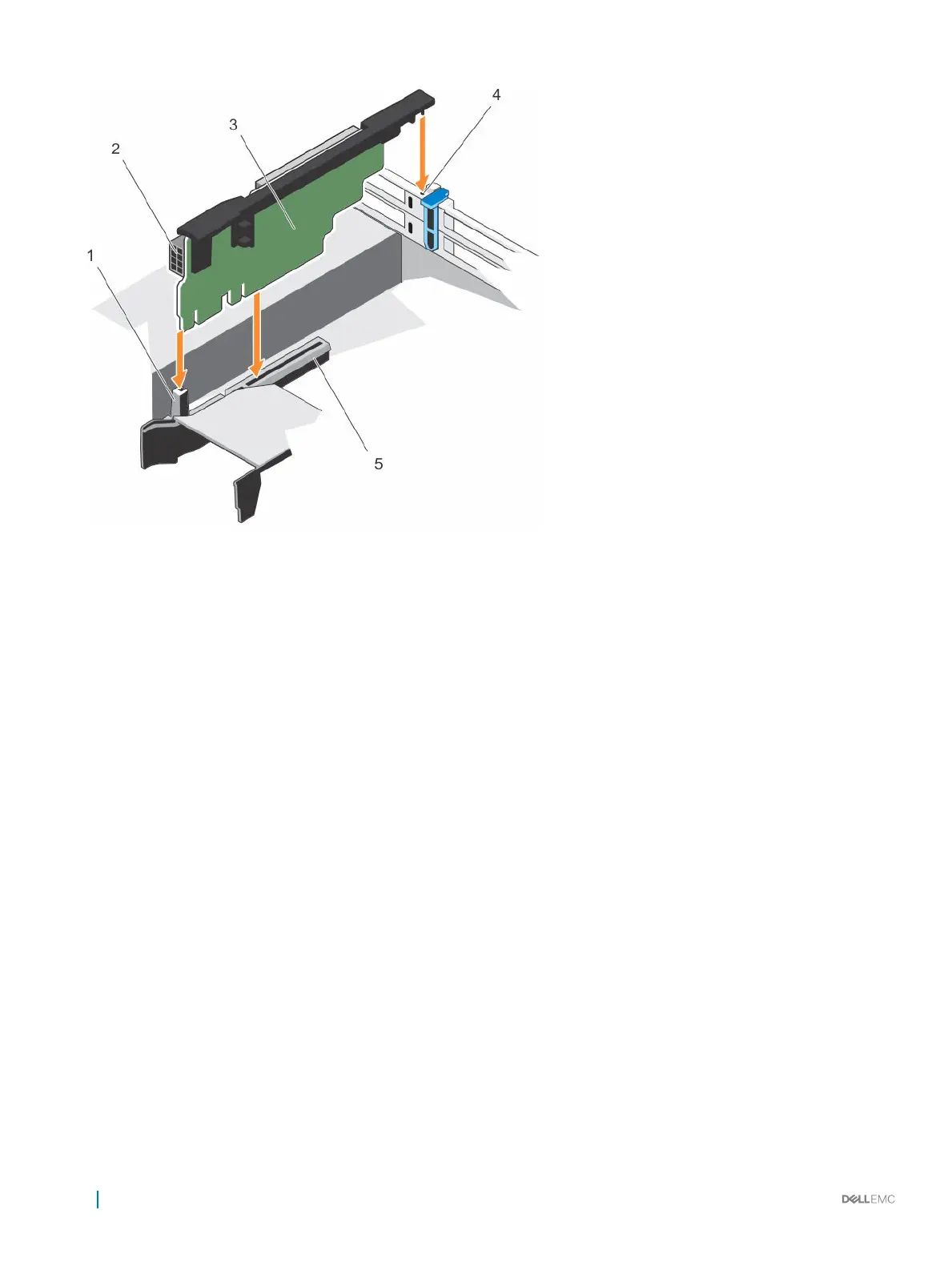

Figure 46. Installing the expansion card riser 3
1
riser guide-front 2 power connector (for GPU cards)
3 expansion card riser 3 4 riser guide-back
5 expansion card riser 3 connector
Next steps
1 Install the expansion card(s) into the expansion card risers 2 or 3.
2 Follow the procedure listed in the After working inside your appliance section.
3 Install any device drivers required for the card as described in the documentation for the card.
GPU card installation guidelines
• Ensure that both the processors are installed.
• The processor must be of 135 W or less.
• The processor must use a GPU kit low-profile heat sink.
• Due to the high power consumption of GPUs, the ambient inlet temperature is restricted to 30°C to ensure adequate cooling when
one or more GPU cards are installed.
• Ensure that the GPU enablement kit is available.
The GPU enablement kit includes:
• Low-profile heat sinks
• Power cables for the GPU cards
• Filler brackets with closeout EMI shield for unoccupied PCIe slots
• All GPU cards must be of the same type and model.
• You can install up to two double-wide GPU cards.
• You can install up to two single-wide GPU cards.
86
Installing and removing components
