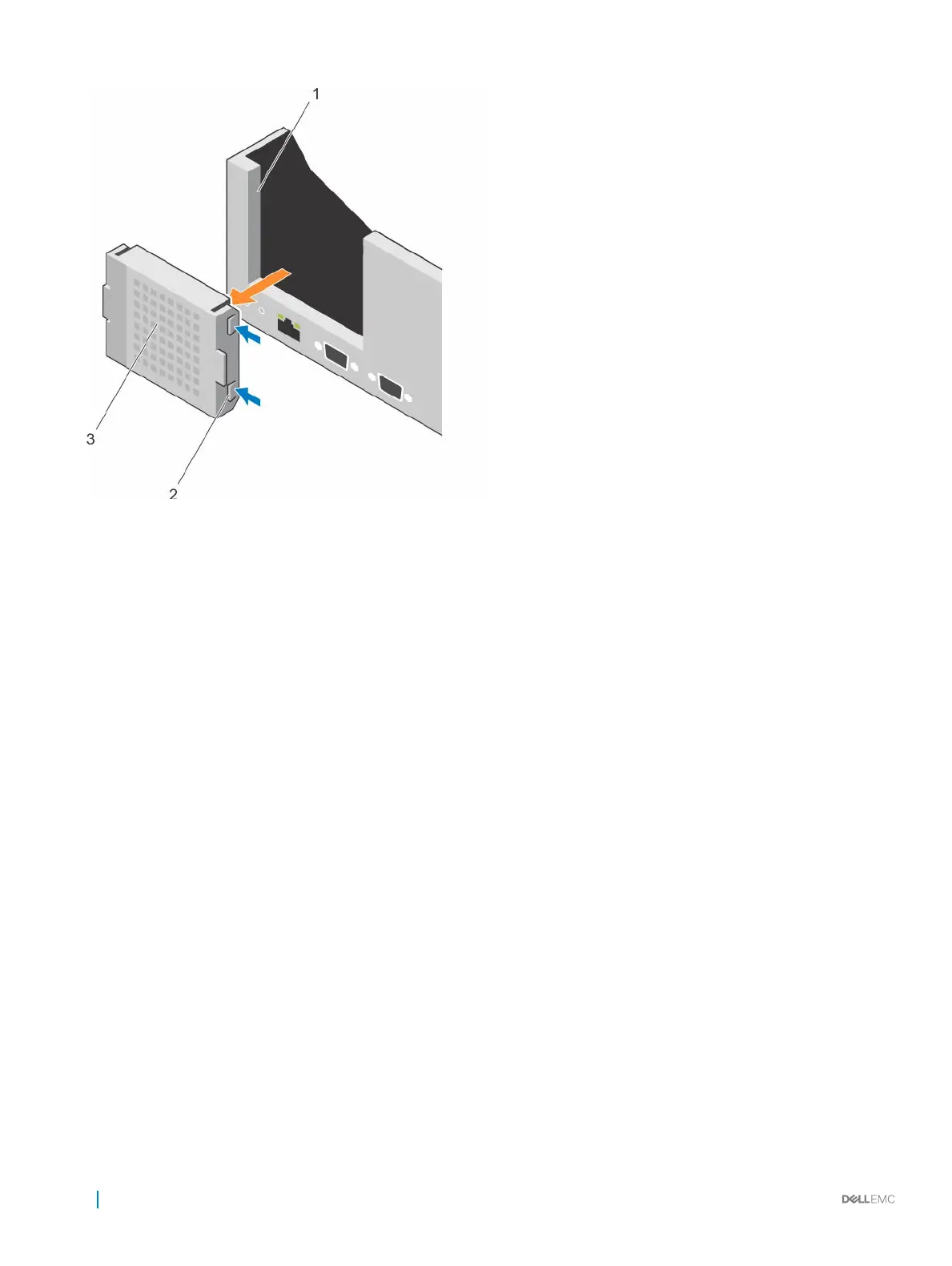

Figure 35. Removing the riser 1 blank
1
slot on the chassis 2 tab (2)
3 riser 1 blank
Next steps
1 Install the expansion card risers.
2 Follow the procedure listed in the After working inside your appliance section.
Installing the riser 1 blank
Prerequisites
Steps
To install the riser 1 blank, align the blank with the slot on the chassis and insert it into the chassis until it clicks into place.
78
Installing and removing components
