Dell EMC VxRail P470 - Installing the Integrated Storage Controller Card

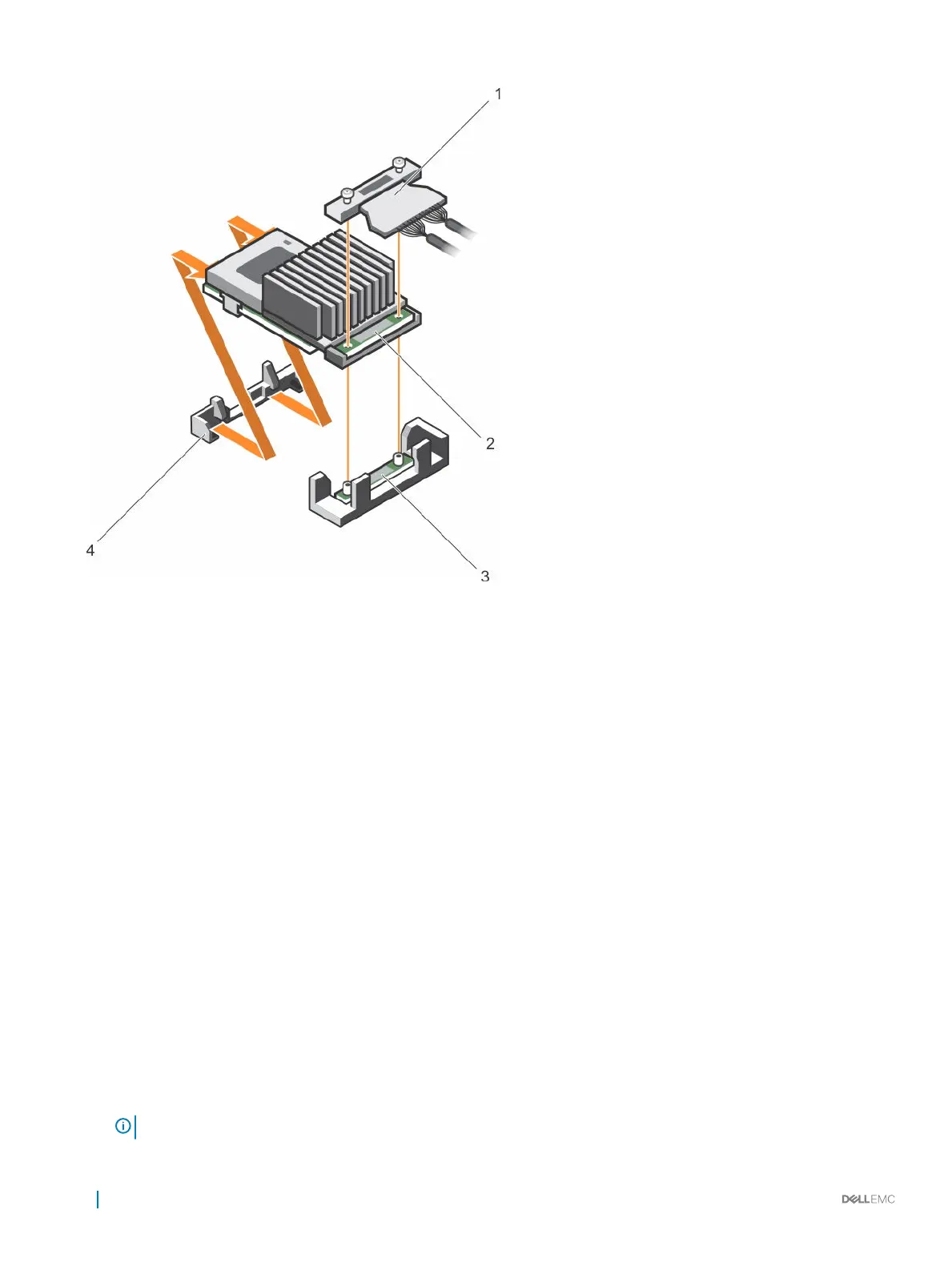

Figure 51. Removing the integrated storage controller card
1
integrated storage controller cable 2 integrated storage controller card
3 integrated storage controller card connector on the
system board
4 integrated storage controller card holder
Next steps
1 Install the cooling shroud.
2 Installing the integrated storage controller card.
3 Follow the procedure listed in the After working inside your appliance section.
Installing the integrated storage controller card
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your appliance section.
3 Remove the cooling shroud.
4 Keep the Phillips #2 screwdriver ready.
Steps
1 Align the end of the integrated storage controller card with the controller card connector on the system board.
2 Lower the connector side of the integrated storage controller card into the integrated storage controller card connector on the
system board.
NOTE
: Ensure that the tabs on the system board align with the screw holes on the integrated storage controller card.
94 Installing and removing components
