Dell EMC VxRail P470 - Removing Expansion Card Risers

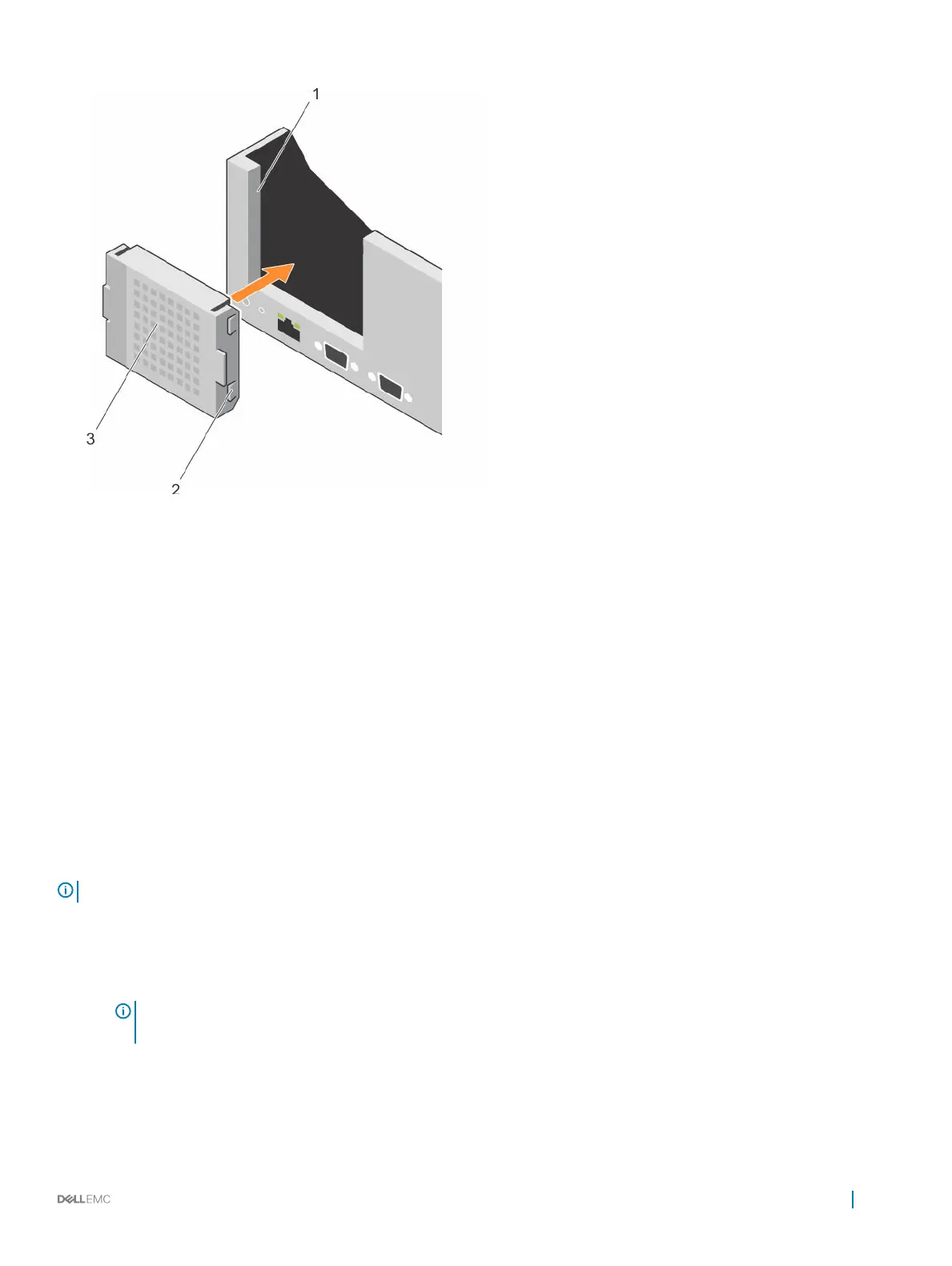

Figure 36. Installing the riser 1 blank
1
slot on the chassis 2 tab (2)
3 riser 1 blank
Next steps
1 Install the expansion card risers.
2 Follow the procedure listed in the After working inside your appliance section.
Removing expansion card risers
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your appliance section.
3 If installed, remove any expansion card installed on risers 2 and 3.
NOTE
: The expansion card riser 1 can be used only when both the processors are installed.
Steps
1 Holding the slots on the expansion card riser, lift the riser from the riser connector on the system board.
2 To remove expansion card risers 2 and 3, hold the edges of the expansion card riser, and lift the riser from the riser connector on the
system board.
NOTE
: To ensure proper cooling, the riser 1 blank must be installed in the riser 1 slot. Remove the riser 1 blank only if
you are installing riser 1.
