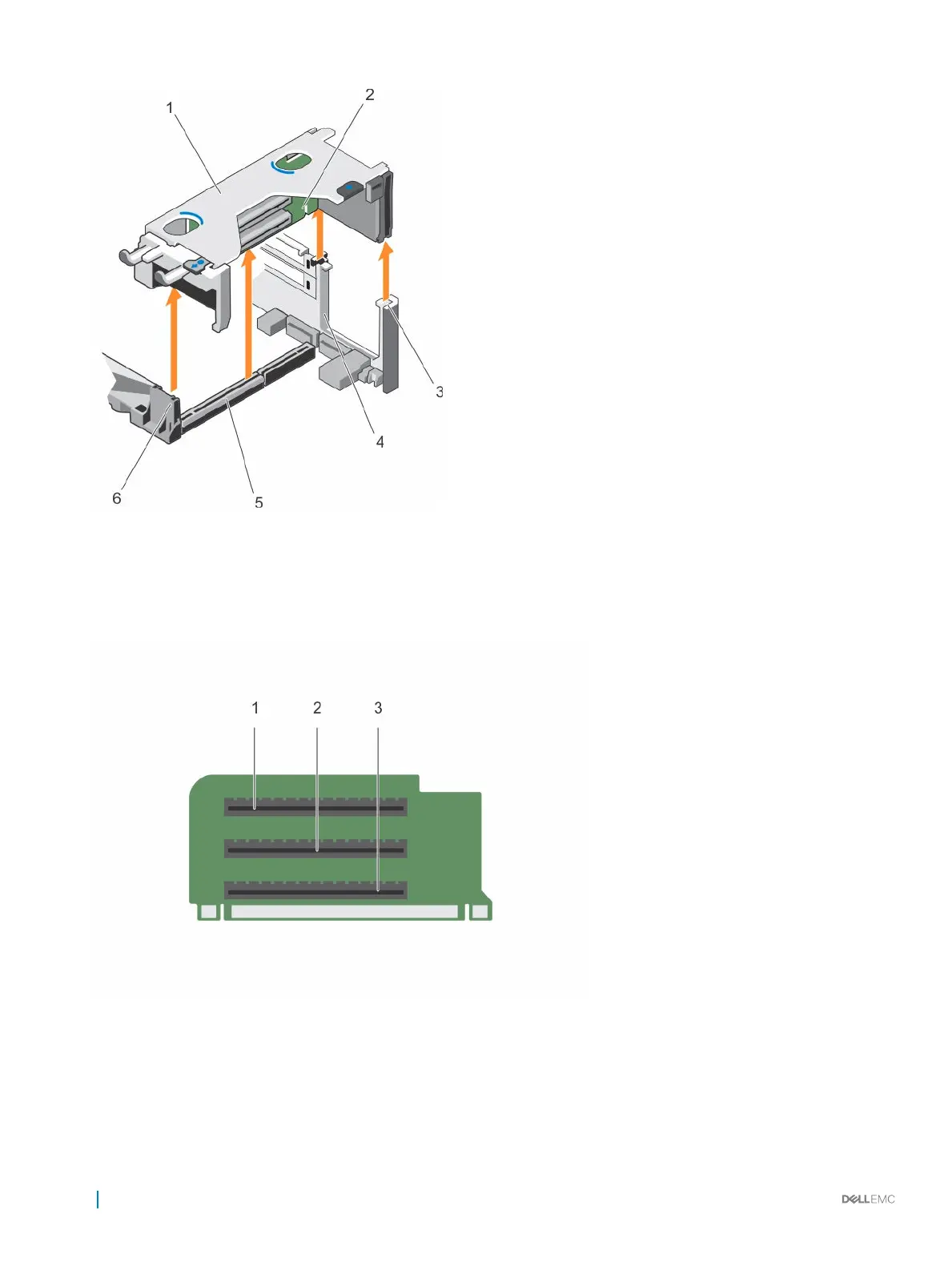

Figure 37. Removing the expansion card riser 1
1
expansion card riser 1 cage 2 expansion card riser 1
3 riser guide-back (right) 4 riser guide-back (left)
5 expansion card riser 1 connector 6 riser guide-front
Figure 38. Identifying connectors on the expansion card riser 1
1
expansion card slot 1 2 expansion card slot 2
3 expansion card slot 3
80 Installing and removing components
