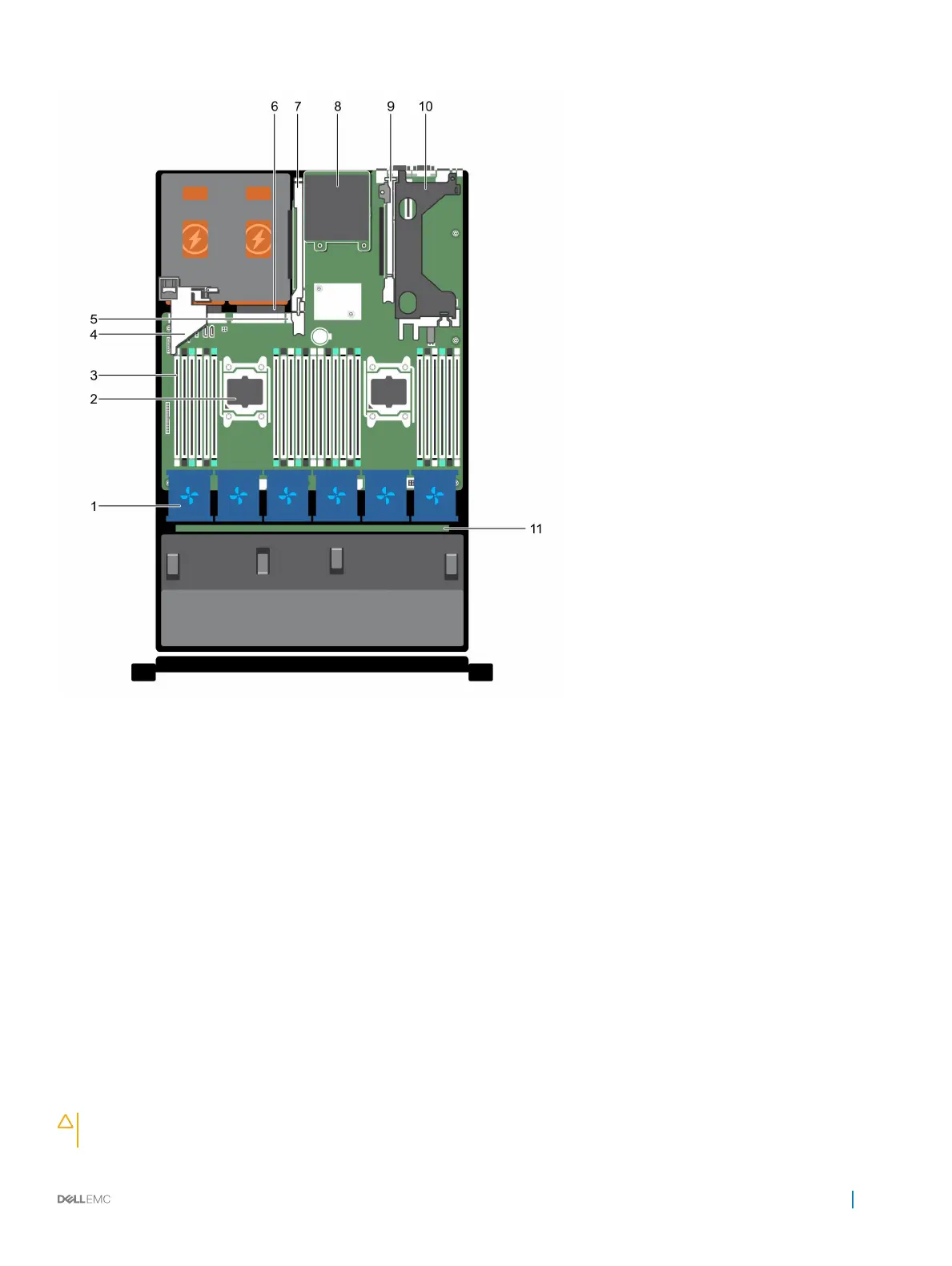

Figure 16. Inside the appliance
1
cooling fan in the cooling fan assembly (6) 2 processor (2)
3 DIMMs (24) 4 PCIe card holder
5 internal USB port 6 power supply unit (2)
7 expansion card riser 3 8 network daughter card
9 expansion card riser 2 10 expansion card riser 1
11 hard drive backplane
Cooling shroud
The cooling shroud aerodynamically directs the airflow across the entire appliance. The airflow passes through all the critical parts of the
appliance, where the vacuum pulls air across the entire surface area of the heat sink, thus allowing increased cooling.
Removing the cooling shroud
Prerequisites
CAUTION
: Never operate your appliance with the cooling shroud removed. The appliance may get overheated quickly, resulting
in shutdown of the appliance and loss of data.
Installing and removing components 55
