For instructions, see the documentation accompanying the card.
2 Press tab A and rotate the latch clockwise.
3 Press tab B and rotate the latch down.
4 Holding the card by its edges, position the card so that the card-edge connector aligns with the expansion card connector.
5 Insert the card-edge connector firmly into the expansion card connector until the card is fully seated.
6 Close the latches of tab A and tab B.

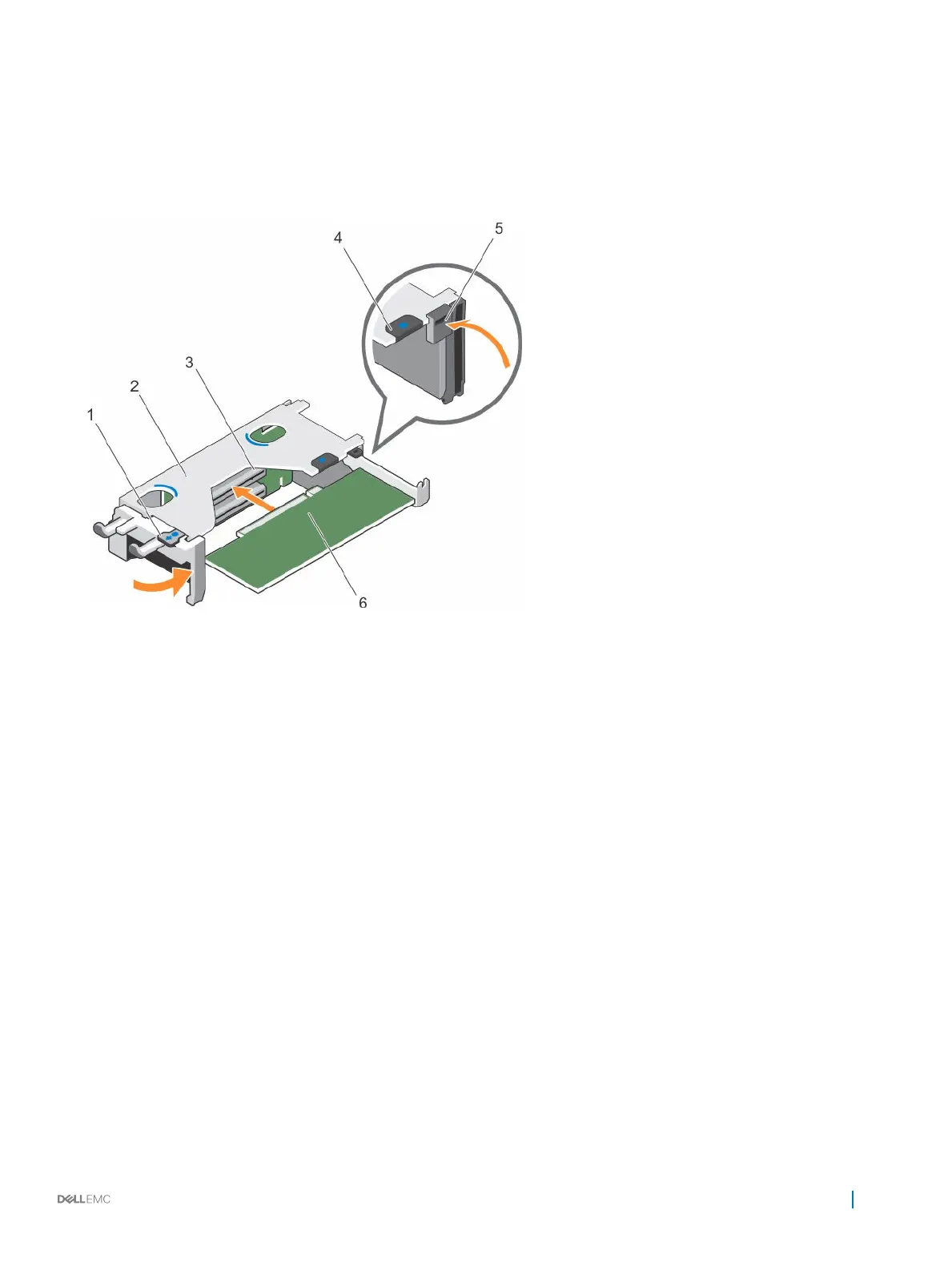

Figure 34. Installing an expansion card into the expansion card riser 1
1
tab A 2 expansion card riser 1 cage
3 expansion card connector 4 tab B
5 latch 6 expansion card
Next steps
1 Install the expansion card riser.
2 If applicable, connect any cables to the expansion card.
3 Follow the procedure listed in the After working inside your appliance section.
4 Install any device drivers required for the card as described in the documentation for the card.
Removing the riser 1 blank
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your appliance section.
3 Remove the expansion card riser.
Steps
Press the tabs on the riser 1 blank and push the riser 1 blank out of the chassis.
Installing and removing components
77
