1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your appliance section.
Steps
Holding the touch points, lift the cooling shroud away from the appliance.

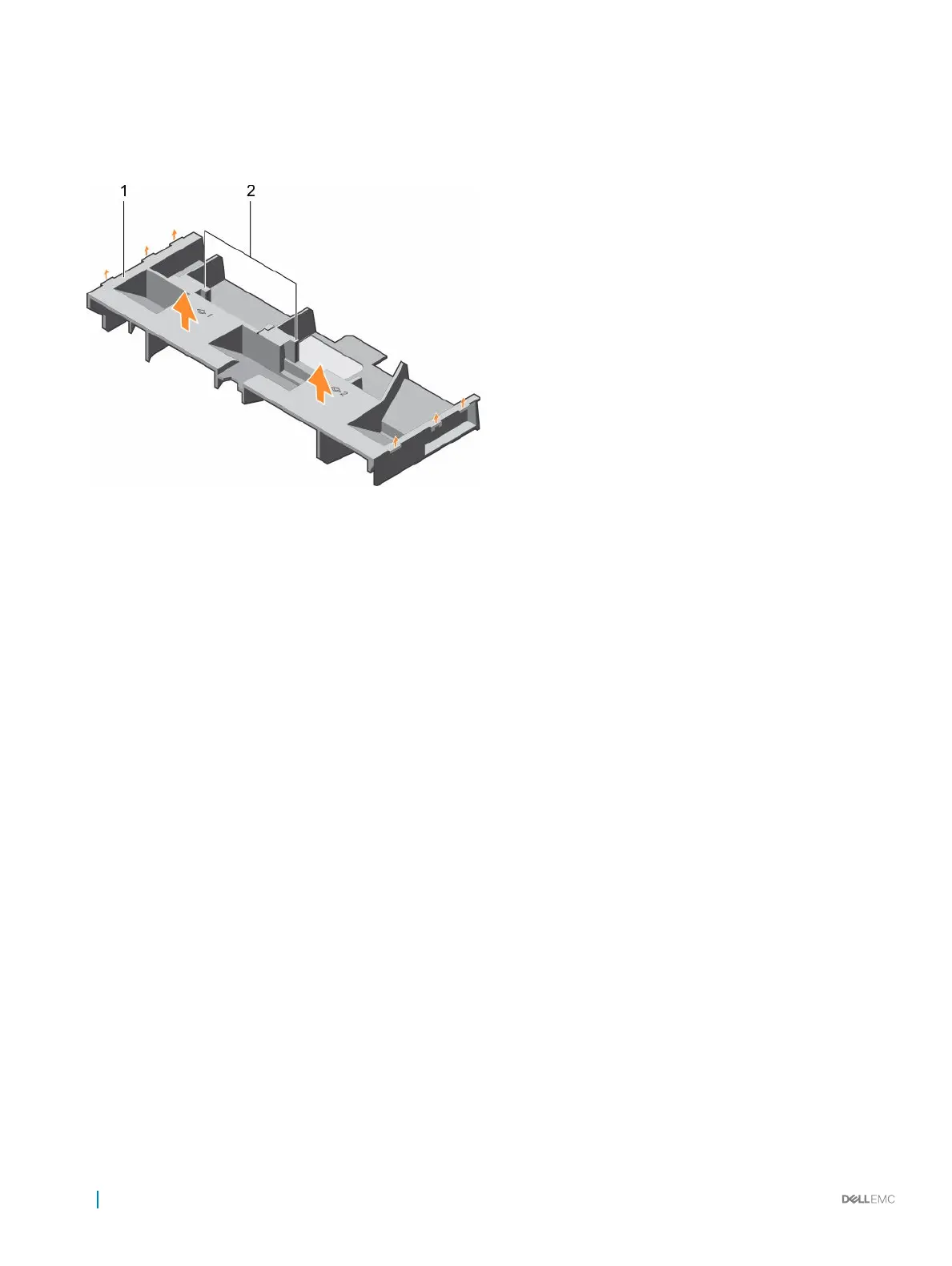

Figure 17. Removing the cooling shroud
1
cooling shroud 2 touch point (2)
Next steps
1 Install the cooling shroud.
2 Follow the procedure listed in the After working inside your appliance section.
Installing the cooling shroud
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your appliance section.
3 If applicable, route the cables inside the appliance along the chassis wall and secure the cables by using the cable-securing bracket.
Steps
1 Align the tabs on the cooling shroud with the securing slots on the chassis.
2 Lower the cooling shroud into the chassis until it is firmly seated.
56
Installing and removing components
