6 Close the expansion card latch.

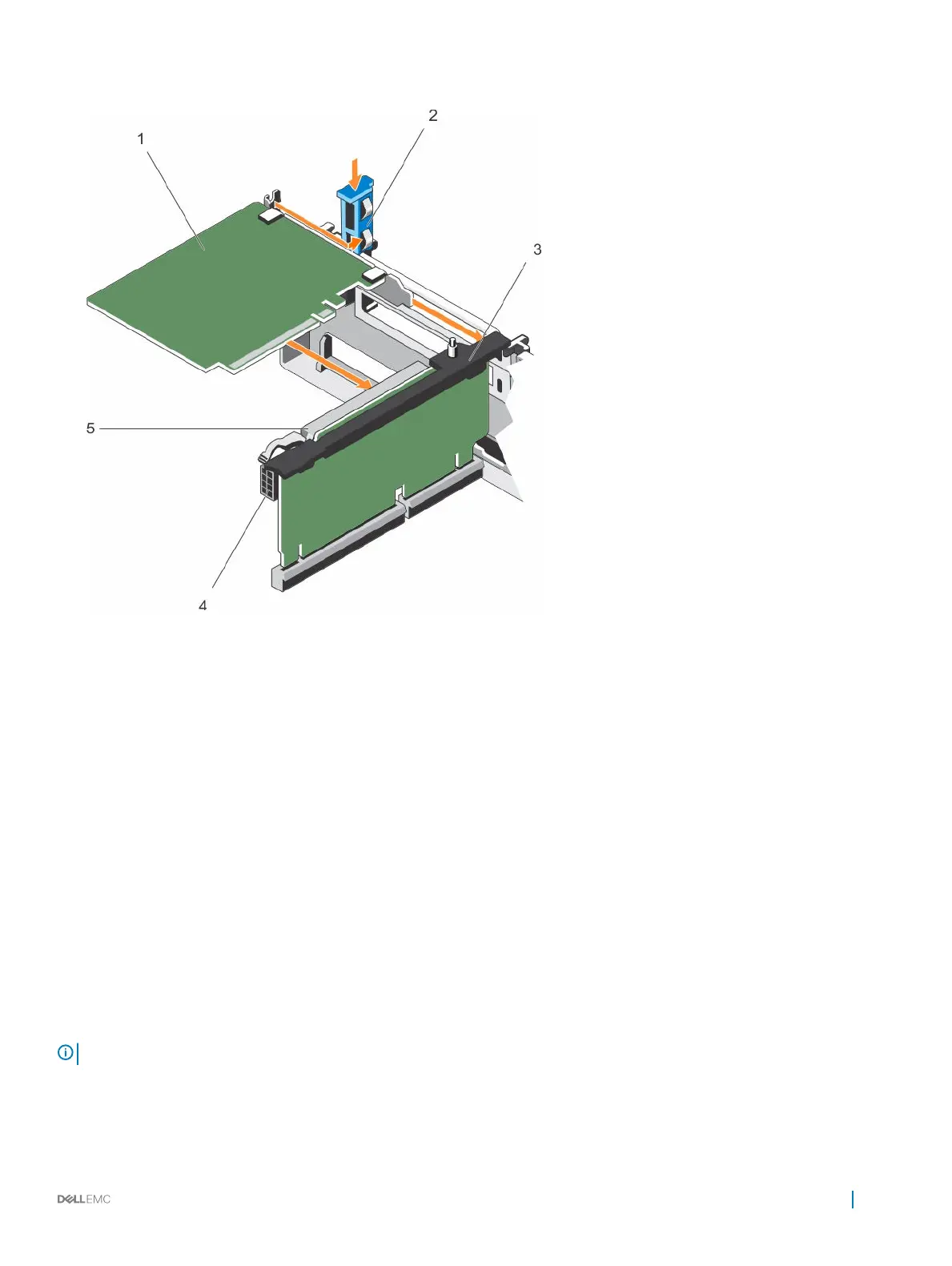

Figure 32. Installing an expansion card into the expansion card riser 2 or 3
1
expansion card 2 expansion card latch
3 expansion card riser 4 power connector (for GPU cards)
5 expansion card connector
Next steps
1 Follow the procedure listed in the After working inside your appliance section.
2 Install any device drivers required for the card as described in the documentation for the card.
Removing an expansion card from the expansion card riser 1
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your appliance section.
3 Disconnect any cables connected to the expansion card.
4 Remove the expansion card riser.
NOTE
: The expansion card riser 1 can be used only when both the processors are installed.
Steps
1 Press tab A and rotate the latch clockwise.
2 Press tab B and rotate the latch downward.
