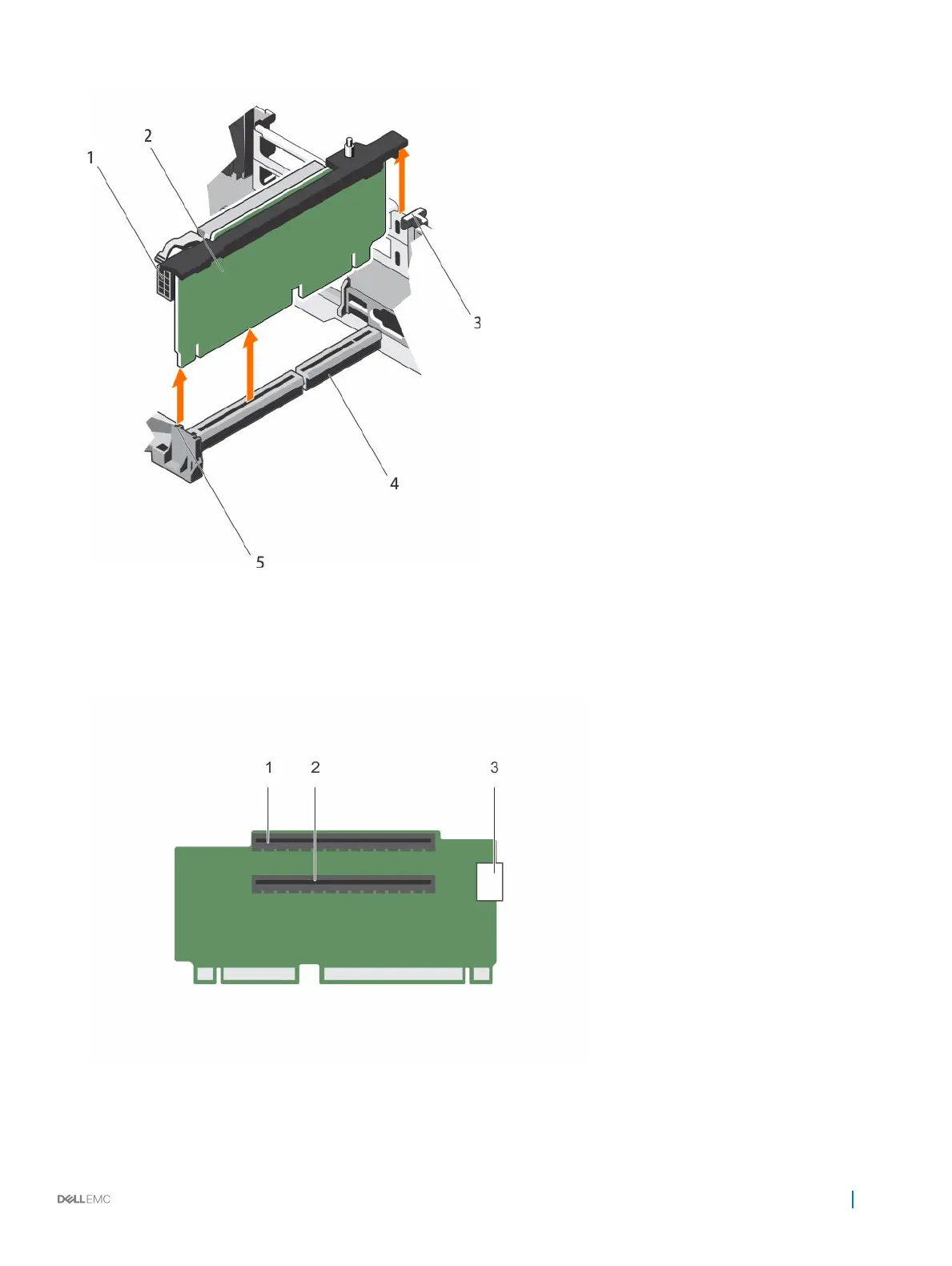

Figure 39. Removing the expansion card riser 2
1
power connector (for GPU cards) 2 expansion card riser 2
3 riser guide-back 4 expansion card riser 2 connector
5 riser guide-front
Figure 40. Identifying connectors on the expansion card riser 2
1
expansion card slot 4 2 expansion card slot 5
Installing and removing components 81
