3 power connector (for GPU cards)

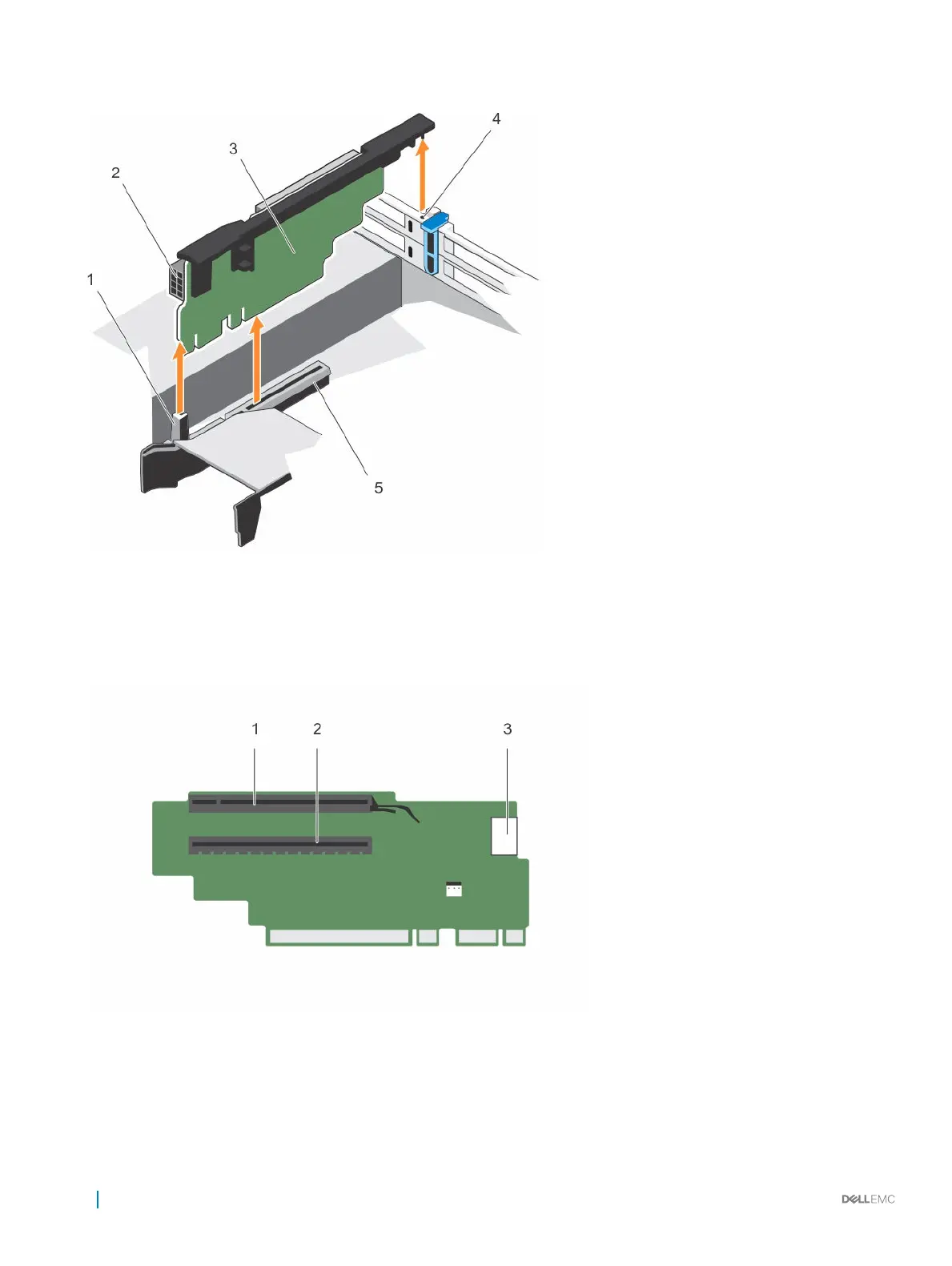

Figure 41. Removing the expansion card riser 3
1
riser guide-front 2 power connector (for GPU cards)
3 expansion card riser 3 4 riser guide-back
5 expansion card riser 3 connector
Figure 42. Identifying connectors on the expansion card riser 3 (default)
1
expansion card slot 6 2 expansion card slot 7
3 power connector (for GPU cards)
