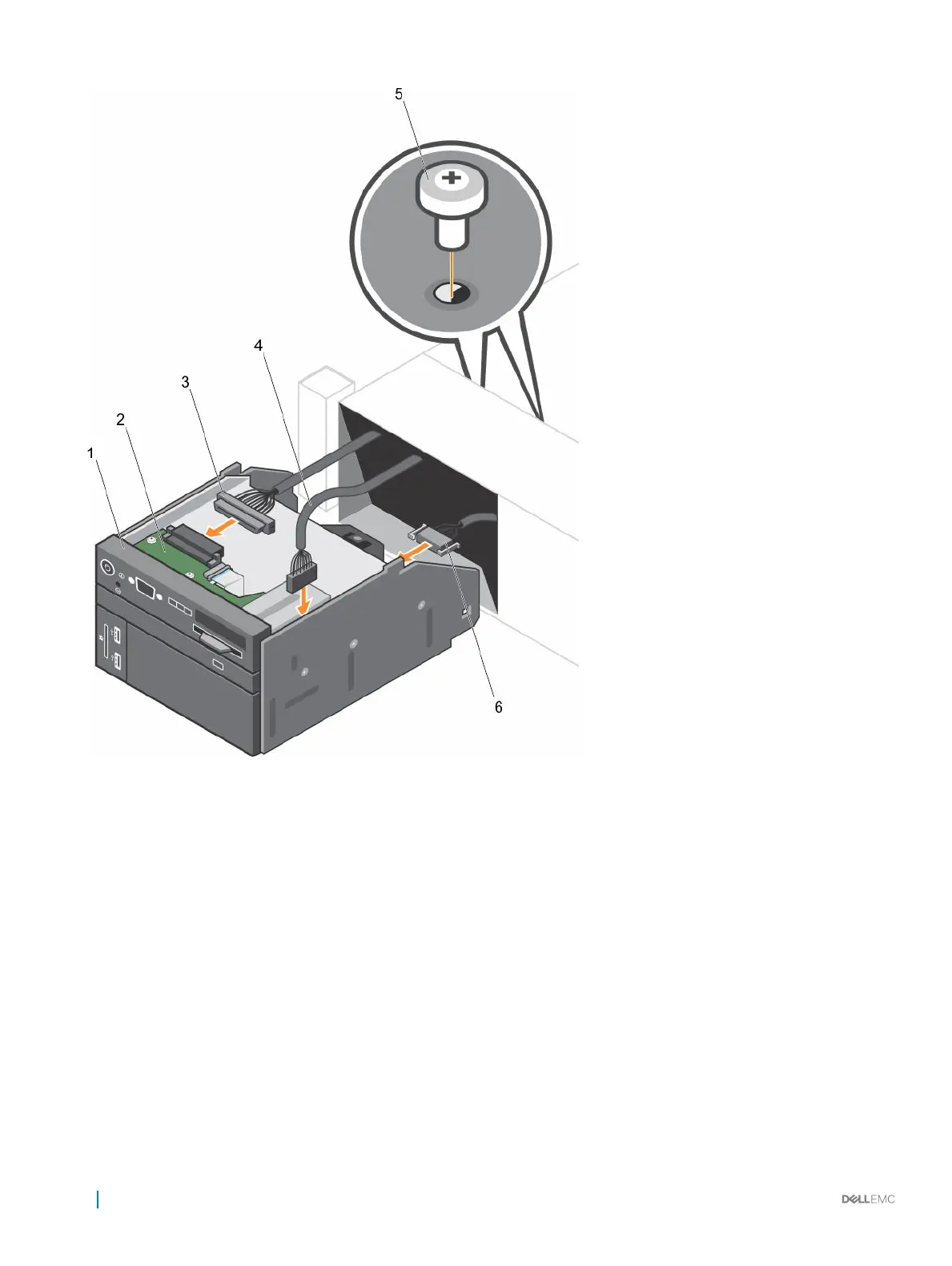

Figure 70. Installing the control panel—2.5 inch hard drive appliance
1
control panel 2 control panel board
3 control panel connector cable 4 USB connector cable
5 screw (2) 6 vFlash media connector cable
116 Installing and removing components
