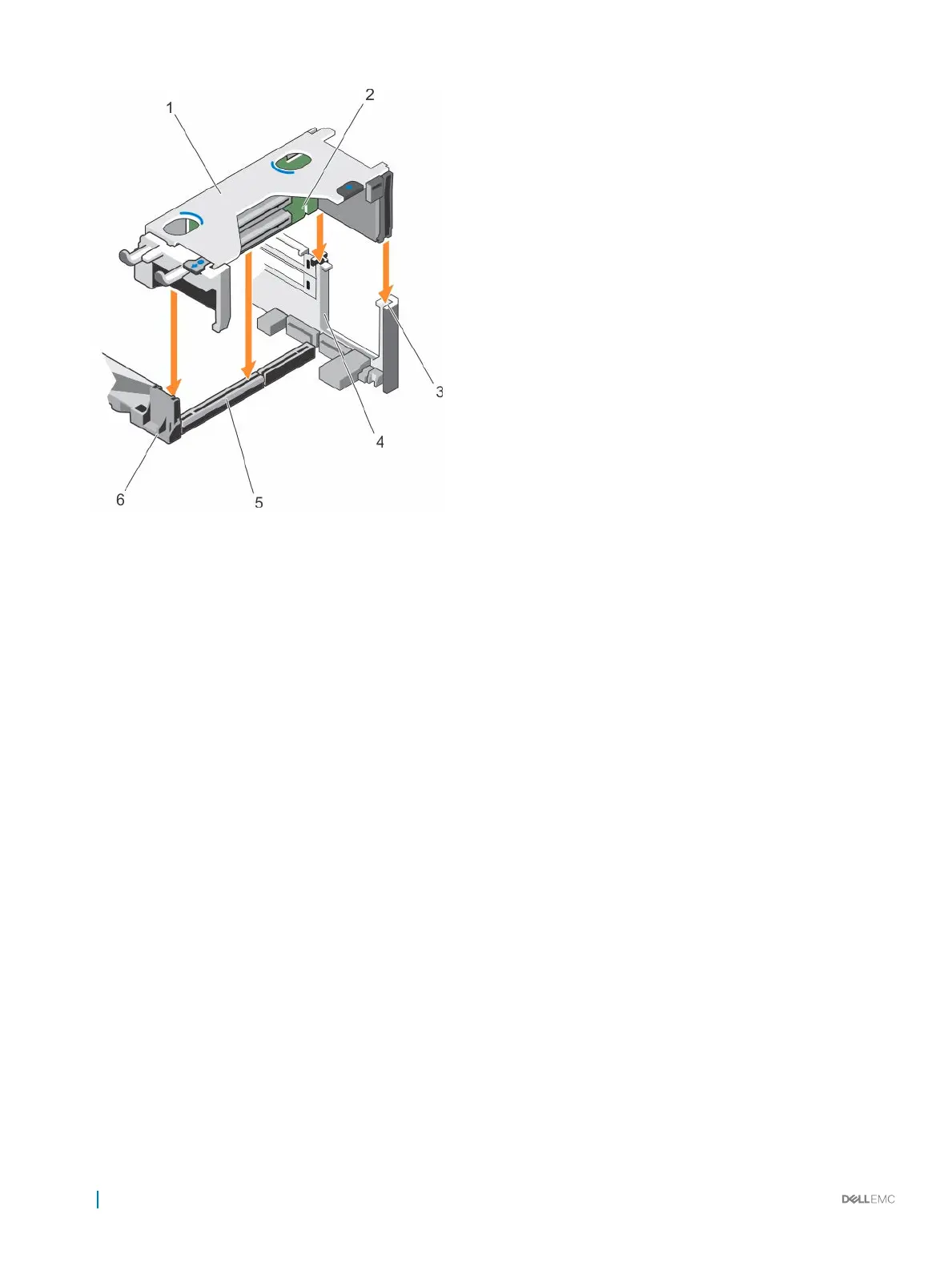

Figure 44. Installing the expansion card riser 1
1
expansion card riser 1 cage 2 expansion card riser 1
3 riser guide-back (right) 4 riser guide-back (left)
5 expansion card riser 1 connector 6 riser guide-front
