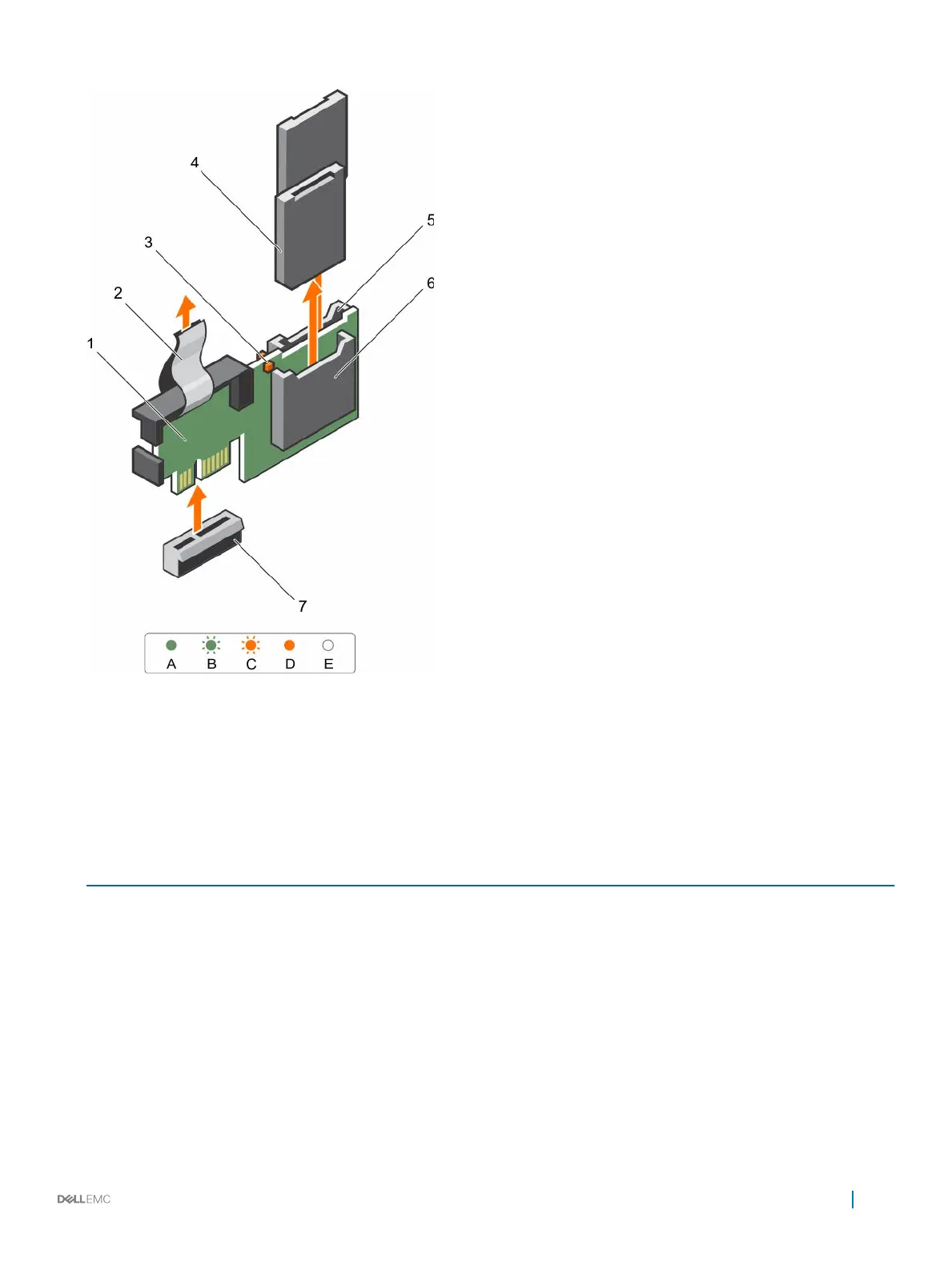

Figure 49. Removing the internal dual SD module (IDSDM)
1
IDSDM 2 pull tab
3 IDSDM connector
The following table describes the IDSDM indicator codes:
Table 30. IDSDM indicator codes
Convention IDSDM indicator code Description
A Green Indicates that the card is online.
B Flashing green Indicates rebuild or activity.
C Flashing amber Indicates card mismatch or that the card has failed.
D Amber Indicates that the card is offline, has failed, or is write protected.
E Not lit Indicates that the card is missing or is booting.
Next steps
1 Install the IDSDM.
2 If removed, install the SD cards.
3 Follow the procedure listed in the After working inside your appliance section.
Installing and removing components
91
