3
1
Click
Restart Printer
.

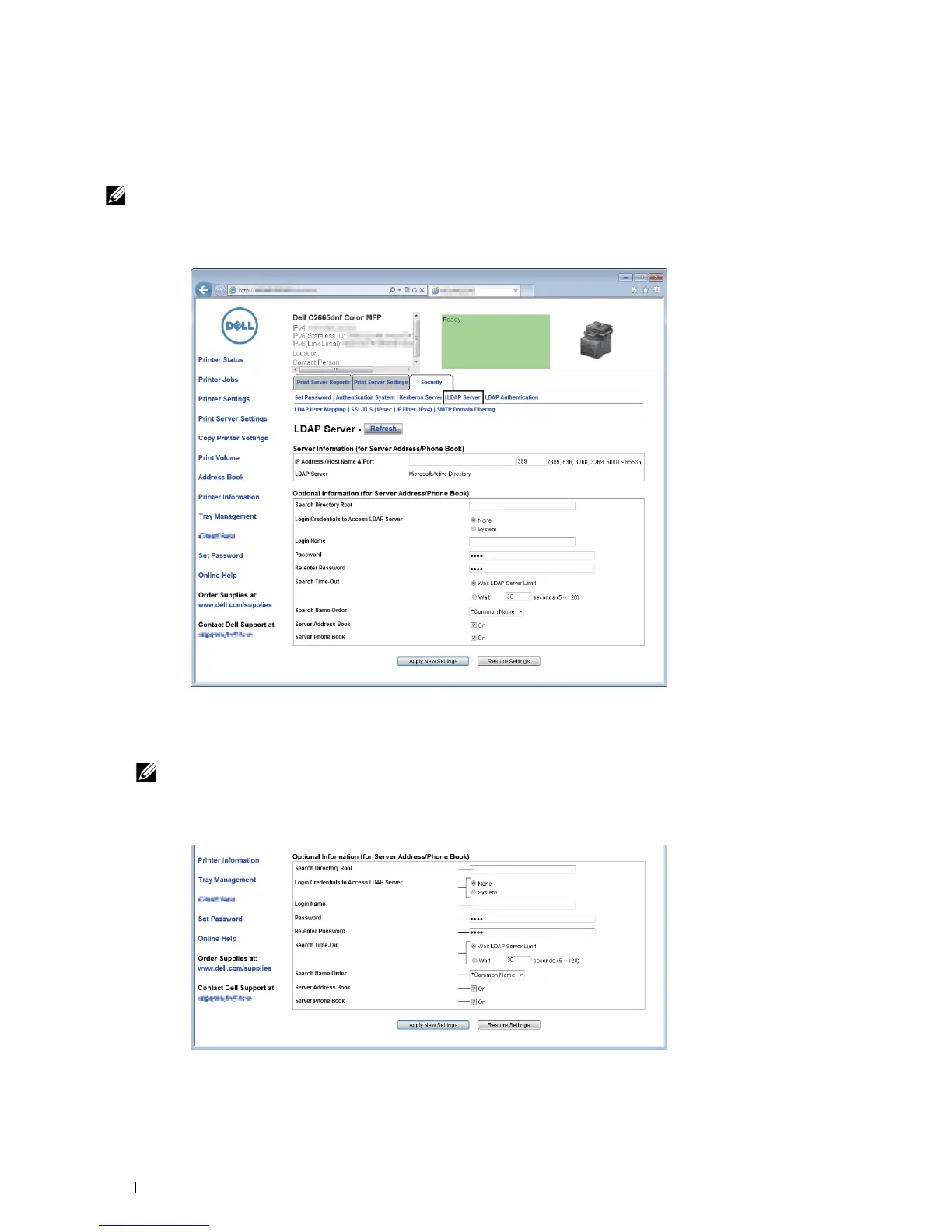

Setting LDAP Server
NOTE: When SSL/TLS communication is required to access the LDAP server, enter a check in the Enable check box for LDAP-
SSL/TLS Communication in SSL/TLS under the Security tab. For more information, see "SSL/TLS."
Select
Print Server Settings
, click the
Security
tab, and then select
LDAP Server
.
2
In the
IP Address/Host Name & Port
text box under
Server Information
(
for Server Address/Phone Book
), enter
IP address or the host name, and the port number. The port number must be 389, 3268, or between 5,000 and
65,535.
NOTE: When LDAPS communication is required, set the port number to 636, and when you use the global catalog, set the
port number to 3269.
3
Under
Optional information
(
for Server Address/Phone Book
), set the following items.
b
f
a
c
d
g
h
i
e
Using the Server Address Book and Server Phone Book 430
