13

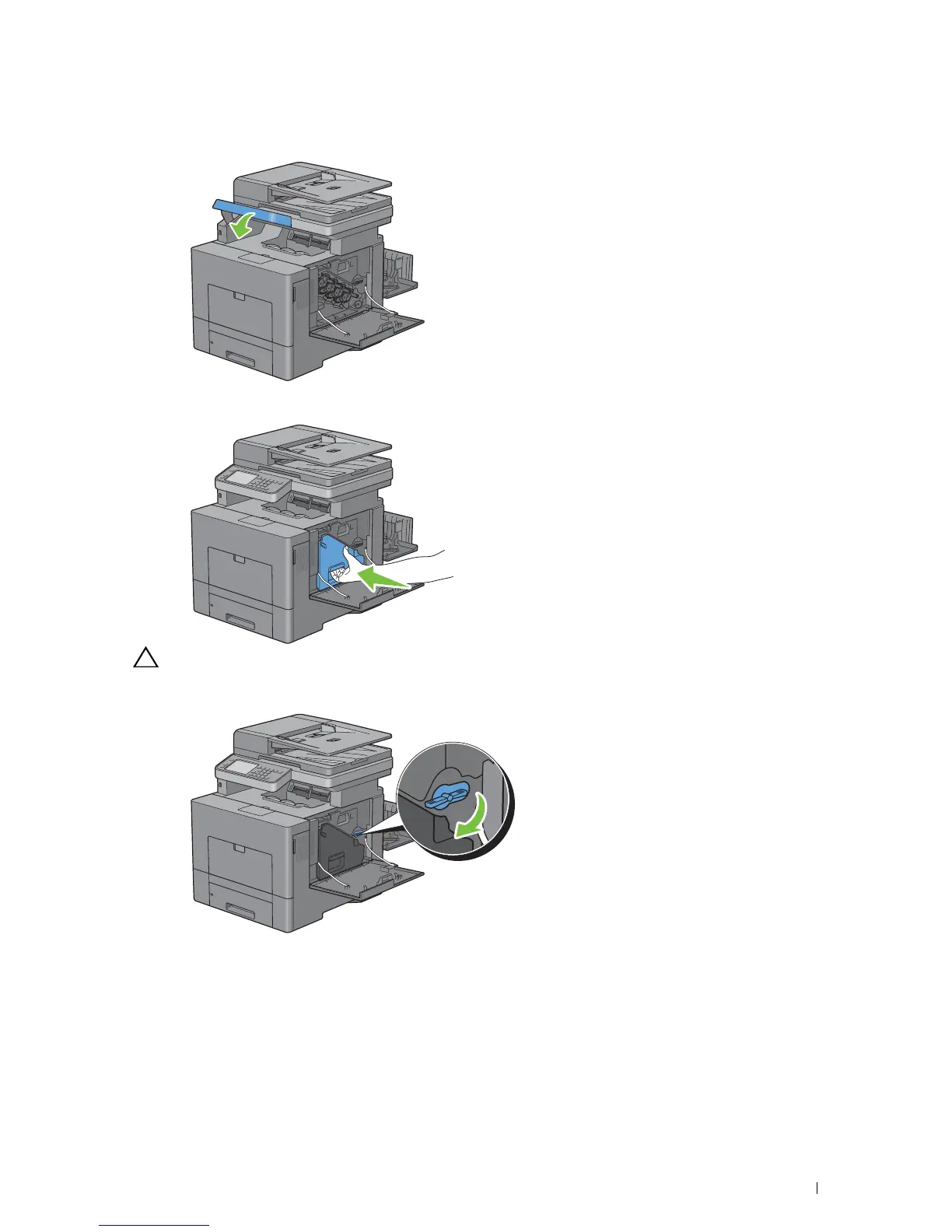

Lower the operator panel back in place.

14

Reinsert the removed waste toner box.

CAUTION: If the waste toner box does not fit into place properly, make sure that the transfer belt unit is fully inserted.

15

Turn the waste toner box lock lever 90-degrees clockwise to lock the waste toner box.

Maintaining Your Printer 495
