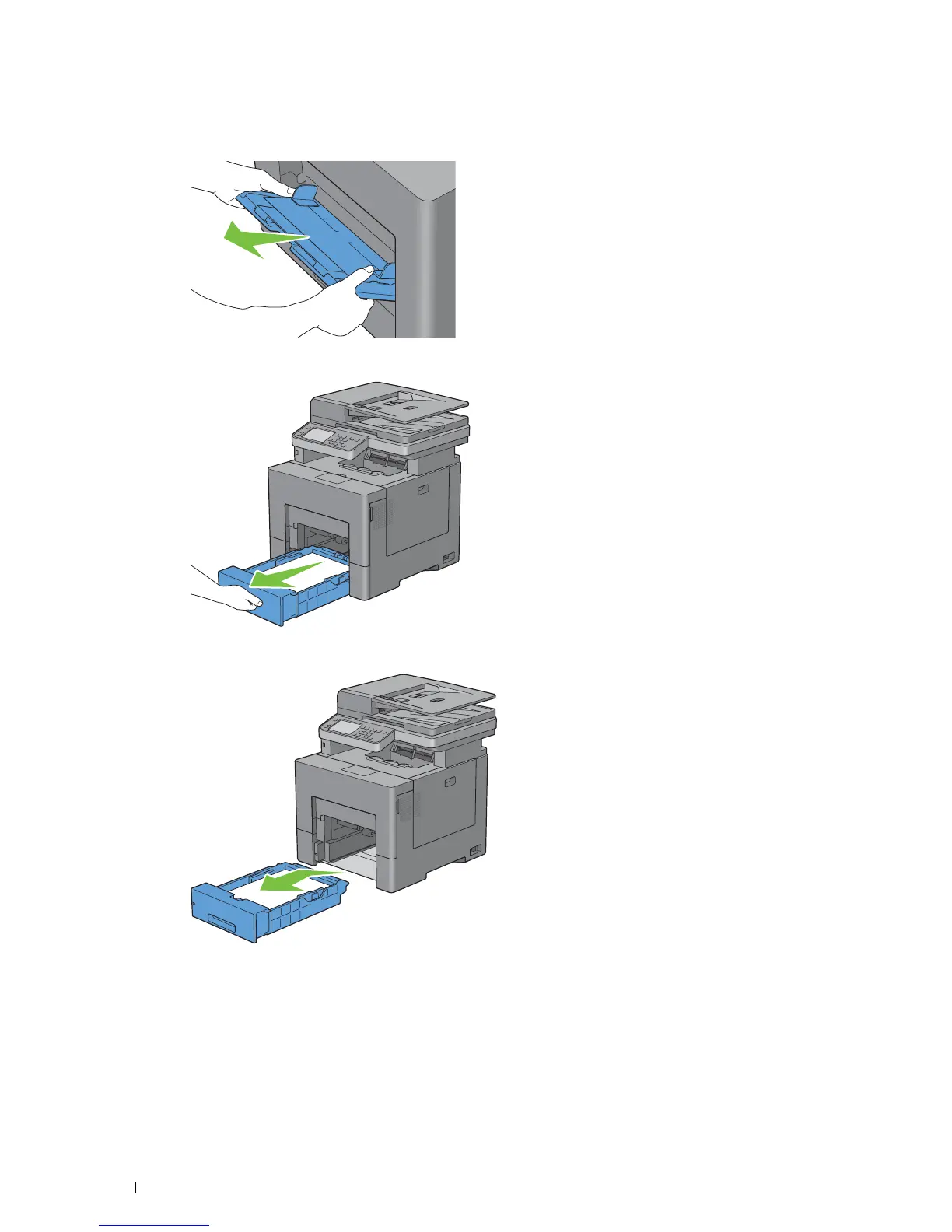

Grasp both sides of the MPF, and then pull it out of the printer.

3

Pull tray1 out of the printer about 200 mm.

4

Hold tray1 with both hands, and remove it from the printer.

Clearing Jams 518
