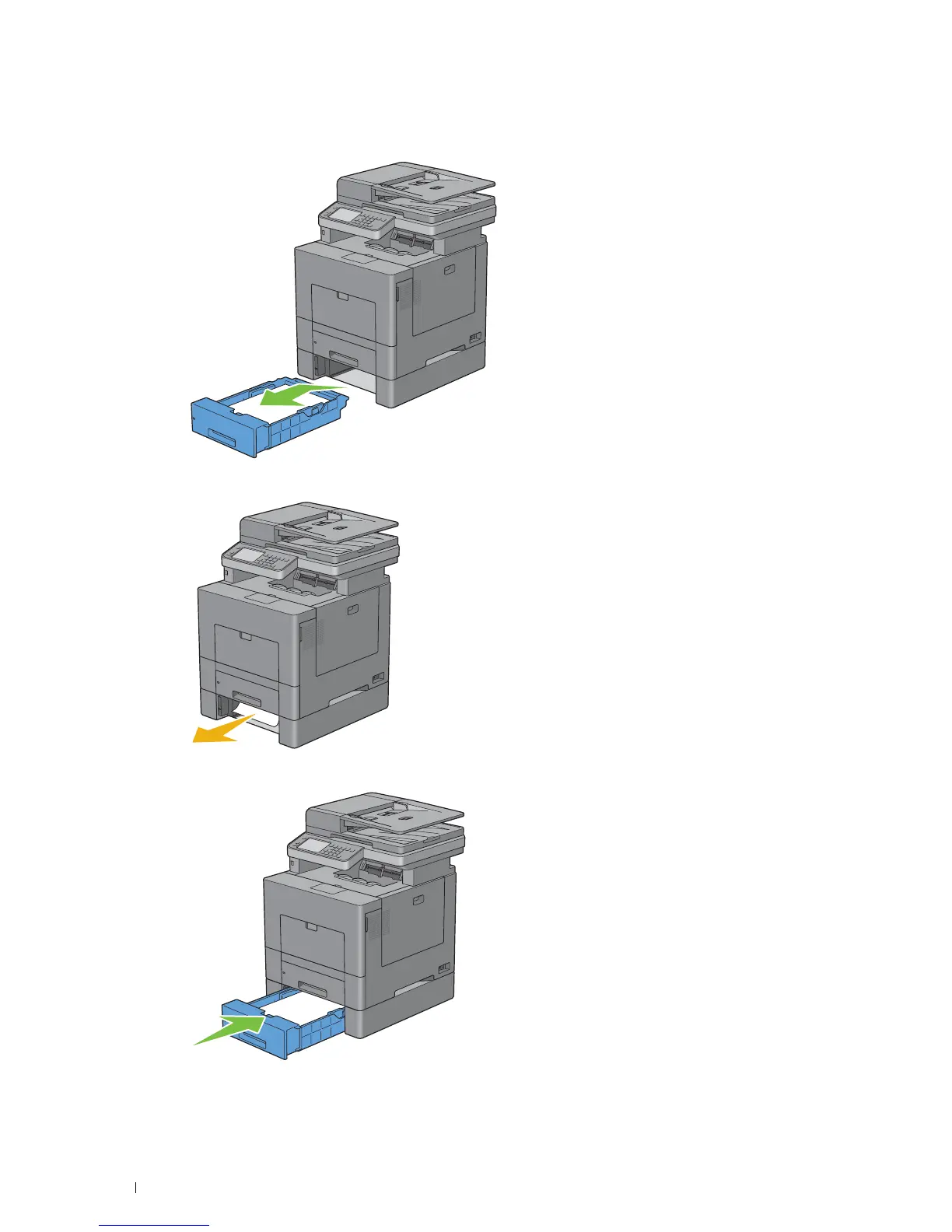

Hold the optional 550-sheet feeder with both hands, and remove it from the printer.

3

Remove the jammed paper.

4

Insert the optional 550-sheet feeder into the printer, and push until it stops.

Clearing Jams 528
