Dell Precision M6300 - Video Connector; S-Video TV-Out Connector

248 Adding and Replacing Parts

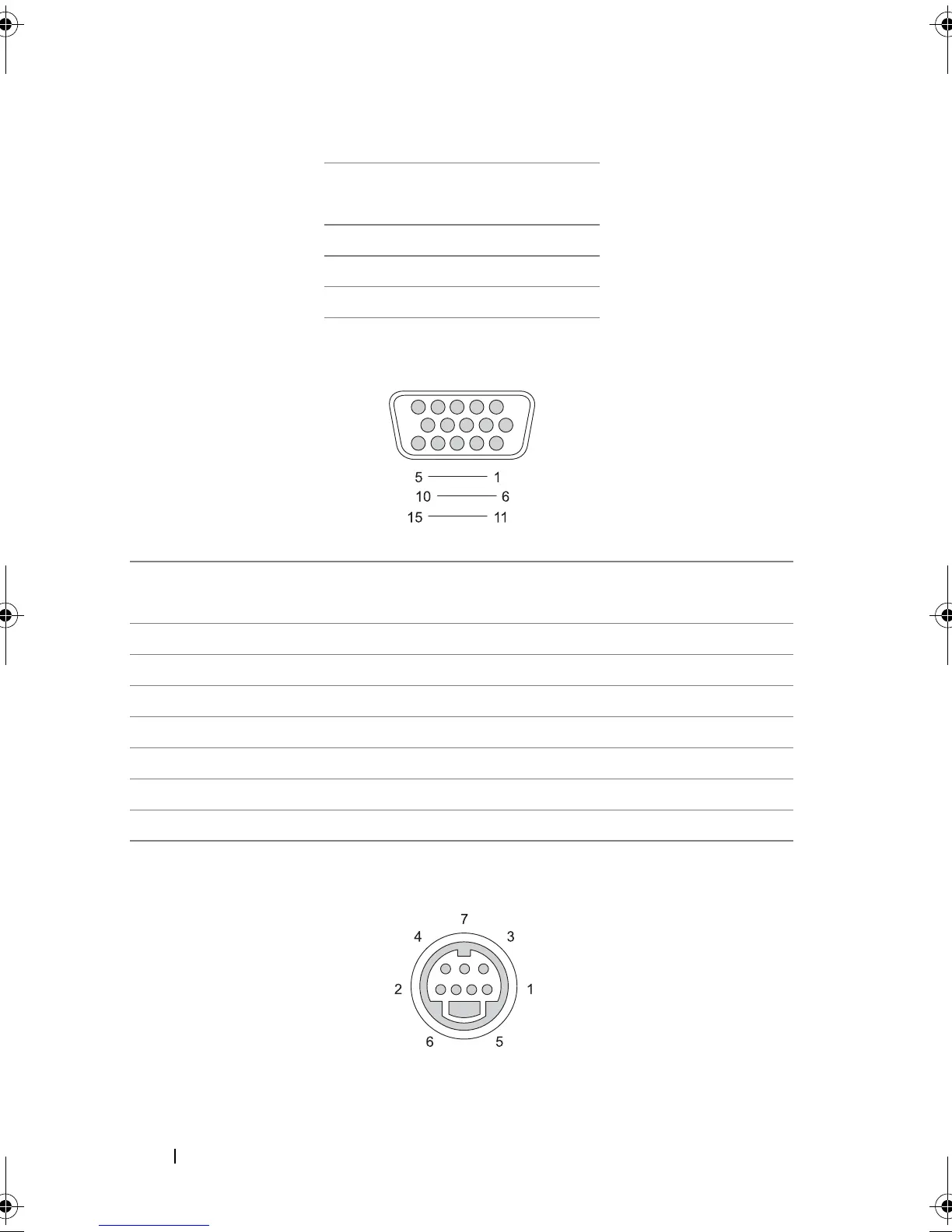

Video Connector
S-Video TV-Out Connector
Pin Signal
1 USB5V+
2 USBP–
3 USBP+
4 GND
Pin Signal Pin Signal
1 CRT_R 9 5V+
2 CRT_G 10 GND
3 CRT_B 11 MONITOR_DETECT–
4 NC 12 DDC_DATA
5 GND 13 CRT_HS
6 GND 14 CRT_VS
7 GND 15 DDC_CLK
8 GND
