Dell SCv3000 Deployment Guide

Item Name Icon Description
4 Hard drives — Can have up to 30 internal 2.5-inch SAS hard drives
SCv3000 and SCv3020 Storage System Drives
The SCv3000 and SCv3020 storage system supports Dell Enterprise Plus Value drives.
The drives in an SCv3000 storage system are installed horizontally. The drives in an SCv3020 storage system are installed vertically. The
indicators on the drives provide status and activity information.

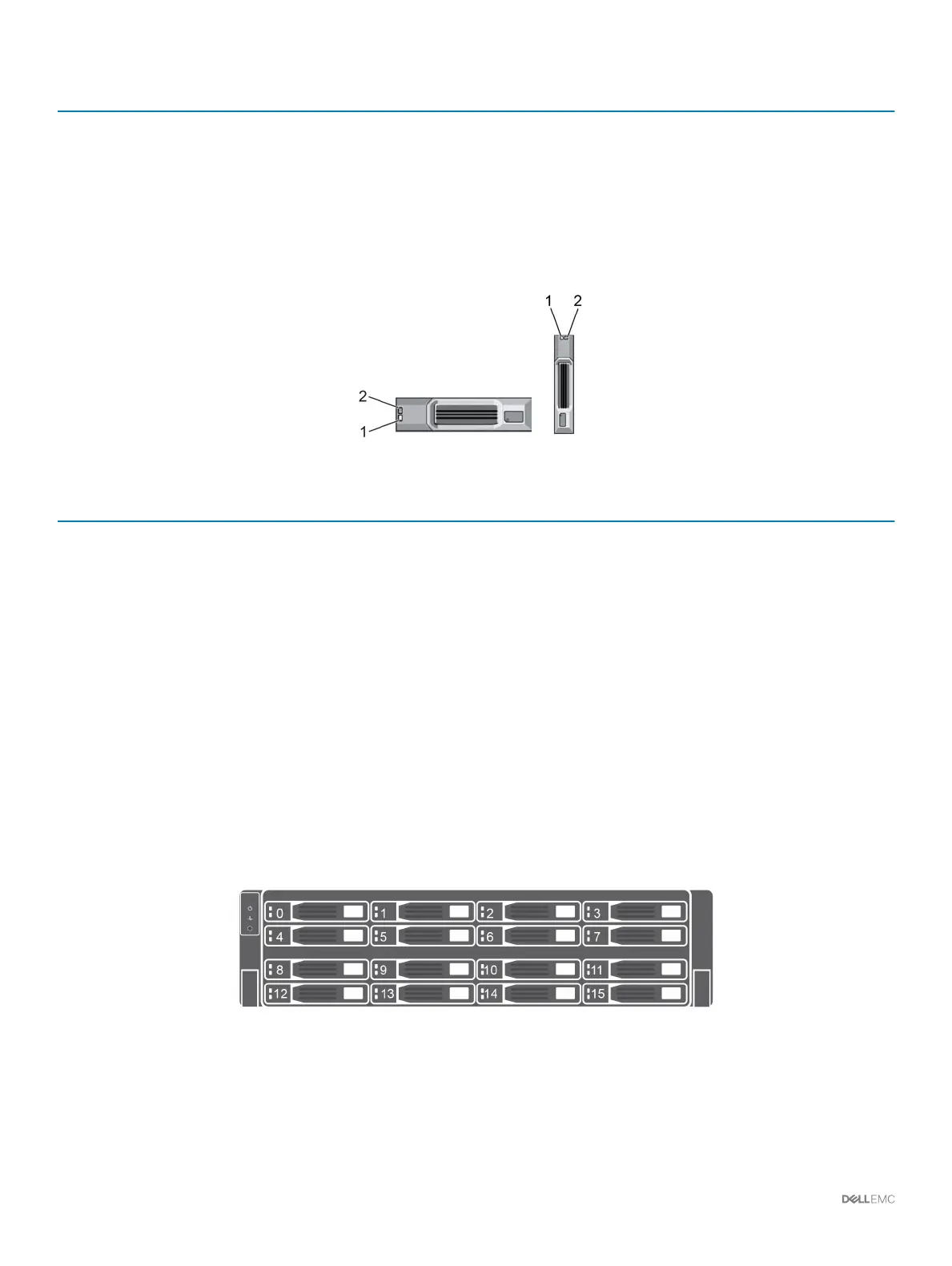

Figure 8. SCv300 and SCv320 Expansion Enclosure Drive Indicators
Item Control/Feature Indicator Code
1 Drive activity indicator
• Blinking green – Drive has I/O activity
• Steady green – Drive is detected and has no faults
2 Drive status indicator
• Steady green – Normal operation
• Blinking green – A command was sent to the drive to make the LED blink so that you can
identify the drive in the rack.
• Blinking amber – Hardware or rmware fault
SCv3000 and SCv3020 Storage System Drive Numbering
The storage system holds up to 16 or 30 drives, which are numbered from left to right in rows starting from 0 at the top-left drive. Drive
numbers increment from left to right, and then top to bottom such that the rst row of drives is numbered from 0 to 4 from left to right,
and the second row of drives is numbered from 5 to 9 from left to right.
Storage Manager identies drives as XX-YY, where XX is the number of the unit ID of the storage system and YY is the drive position
inside the
storage system.
Figure 9. SCv3000 Storage System Drive Numbering
18
About the SCv3000 and SCv3020 Storage System

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
