Dell SCv3000 Deployment Guide

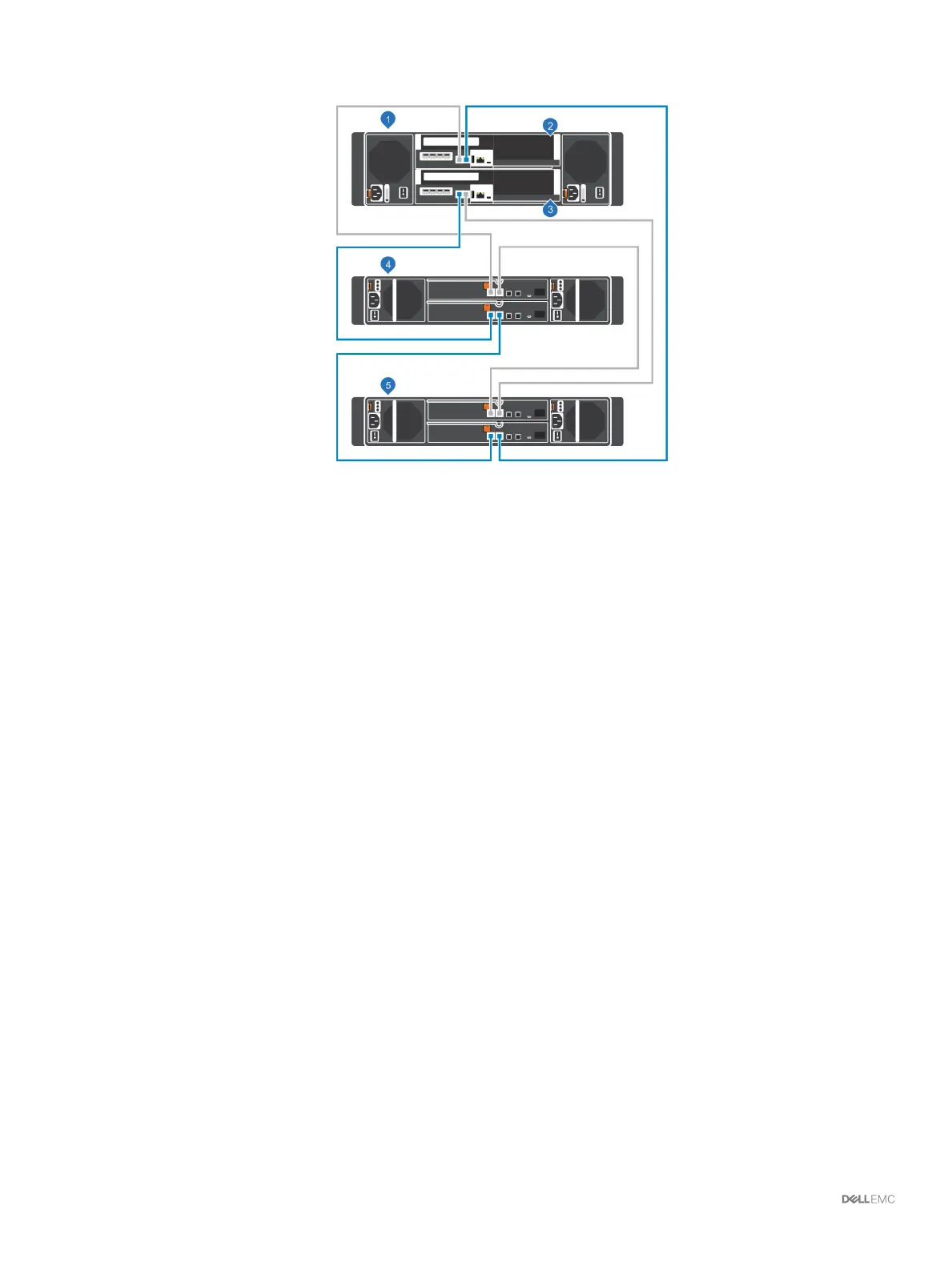

Figure 55. Connect the B-Side Cables to the Expansion Enclosures
1
Storage system
2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure 1
5 Expansion enclosure 2
2 Label the back-end cables.
Install New SCv360 Expansion Enclosures in a Rack
Install the expansion enclosures in a rack, but do not connect the expansion enclosures to the storage system. For more information, see
the SCv360 Expansion Enclosure Getting Started Guide
About this task
Steps
1 Cable the expansion enclosures together to form a chain.
a Connect a SAS cable from expansion enclosure 1: left, port 3 to expansion enclosure 2: left, port 1.
b Connect a SAS cable from expansion enclosure 1: right, port 3 to expansion enclosure 2: right, port 1.
c Repeat the previous steps to connect additional expansion enclosures to the chain.
74
Adding or Removing Expansion Enclosures

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
