Dell SCv3000 Deployment Guide

Connecting to Host Servers with iSCSI HBAs or
Network Adapters
A storage system with iSCSI front-end ports connects to one or more Ethernet switches, which connect to one or more host servers with
iSCSI HBAs or network adapters.
Cable the Storage System with 2–Port iSCSI IO Cards
Connect the iSCSI ports on the storage controllers to host servers with iSCSI HBAs. The iSCSI ports of the storage controllers connect to
the host servers through the Ethernet switches in the SAN.
About this task

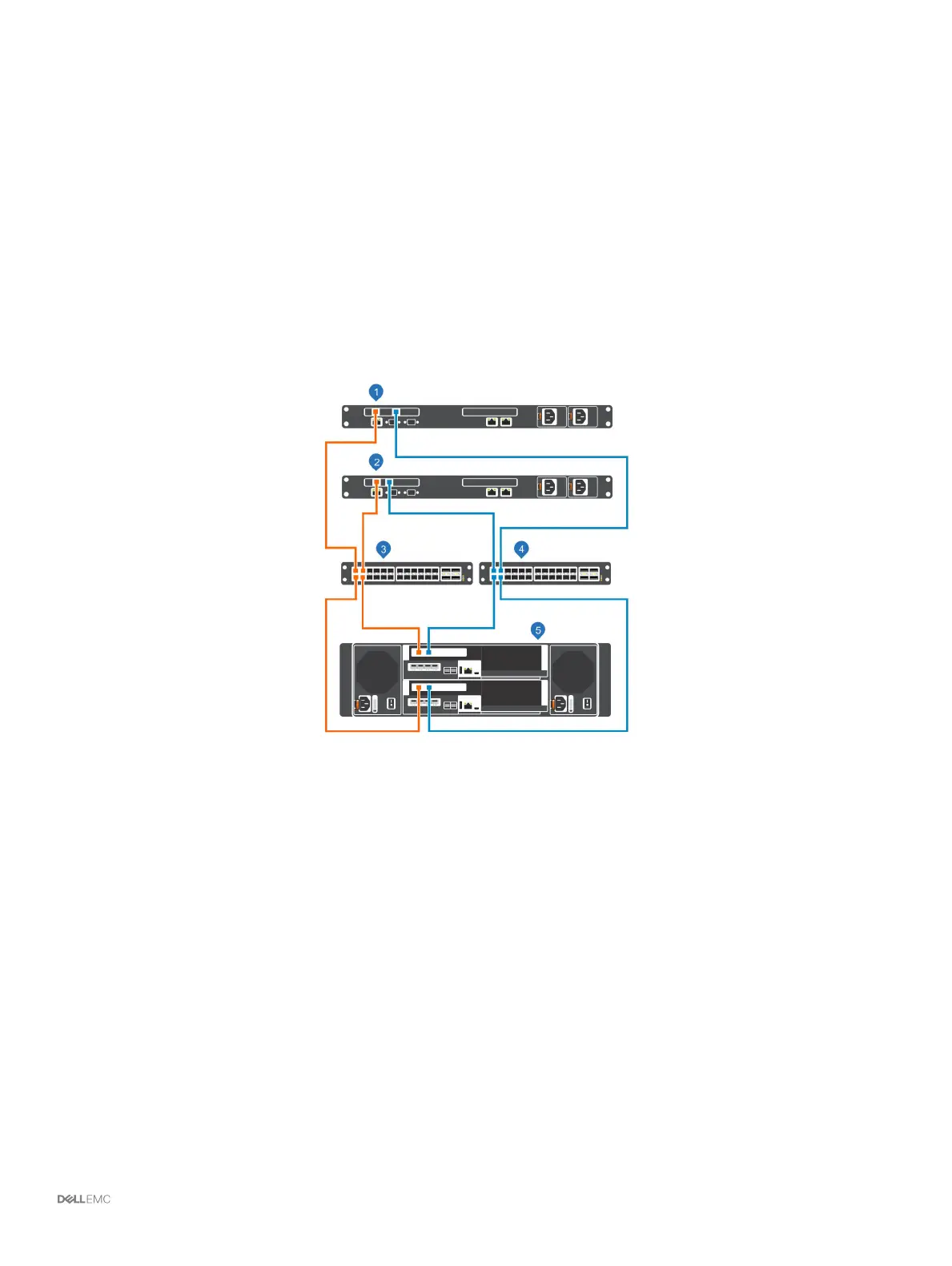

Figure 34. Connect the
Storage System to Host Servers with iSCSI HBAs
1
Host server 2 Host server
3 Ethernet switch 1 (fault domain 1) 4 Ethernet switch 2 (fault domain 2)
5 SCv3000 and SCv3020 storage system
Steps
1 Connect each host server to both iSCSI networks.
2 Connect fault domain 1 (shown in orange) to iSCSI network 1.
• Connect port 1 of the iSCSI HBA in the top storage controller to switch 1.
• Connect port 1 of the iSCSI HBA in the bottom storage controller to switch 1.
3 Connect iSCSI fault domain 2 (shown in blue) to iSCSI network 2.
• Connect port 2 of the iSCSI HBA in the top storage controller to switch 2.
• Connect port 2 of the iSCSI HBA in the bottom storage controller to switch 2.
Connect the Front-End Cabling
41

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
