Dell SCv3000 Deployment Guide

SCv3000 and SCv3020 and Two SCv300 and SCv320
Expansion Enclosures

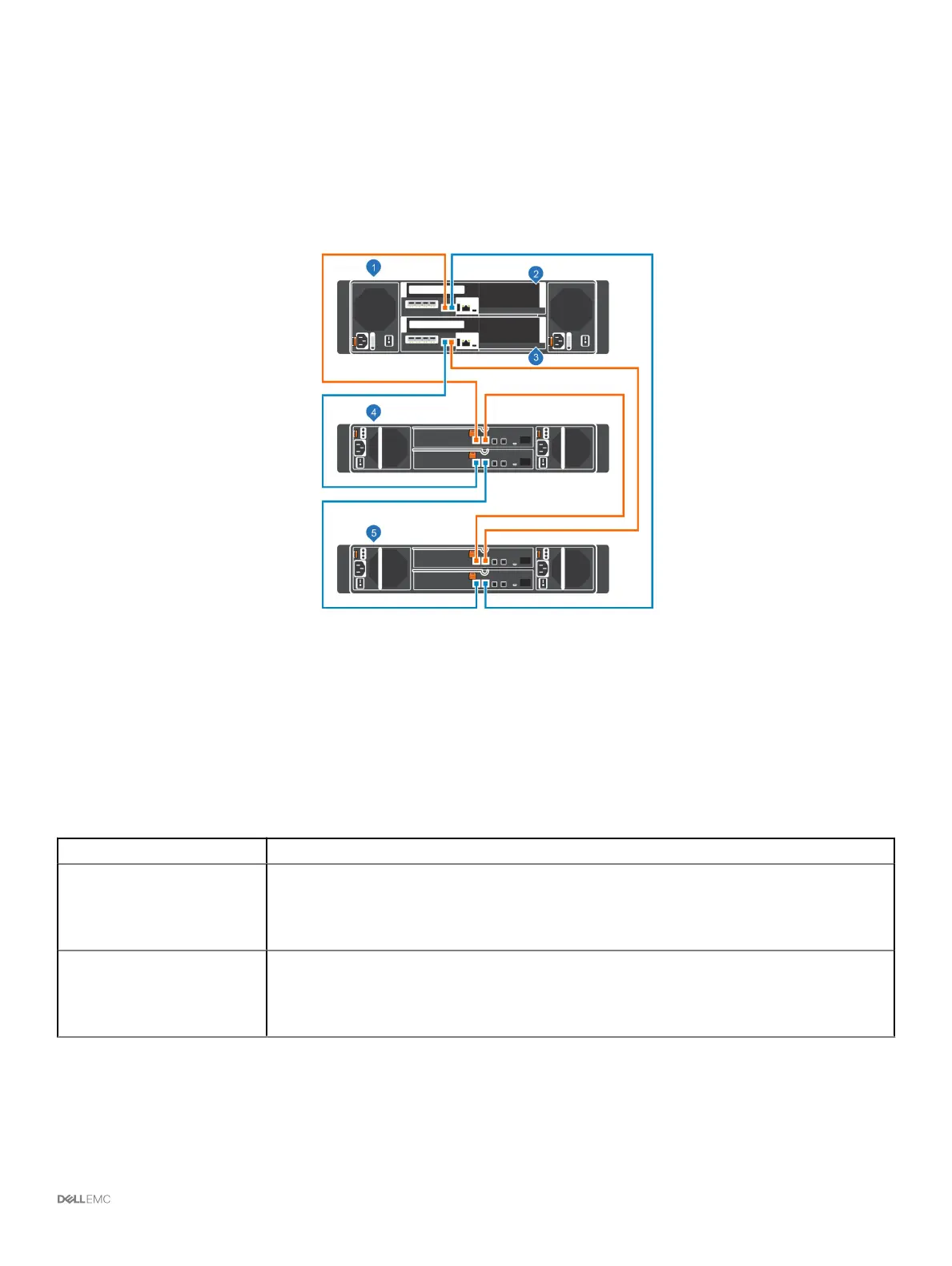

This gure shows an SCv3000 and SCv3020 storage system cabled to two SCv300 and SCv320 expansion enclosures.
Figure 46. SCv3000 and SCv3020 and Two SCv300 and SCv320 Expansion Enclosures
1
Storage system 2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure 1
5 Expansion enclosure 2
The following table describes the back-end SAS connections from an SCv3000 and SCv3020 storage system to two SCv300 and SCv320
expansion enclosures.
Table 3.
SCv3000 and SCv3020 Connected to Two SCv300 and SCv320 Expansion Enclosures
Path Connections
Chain 1: Side A (orange)
1 Storage controller 1: port 1 to expansion enclosure 1: top EMM, port 1
2 Expansion enclosure 1: top EMM, port 2 to expansion enclosure 2: top EMM, port 1
3 Expansion enclosure 2: top EMM, port 2 to storage controller 2: port 2
Chain 1: Side B (blue)
1 Storage controller 2: port 1 to expansion enclosure 1: bottom EMM, port 1
2 Expansion enclosure 1: bottom EMM, port 2 to expansion enclosure 2: bottom EMM, port 1
3 Expansion enclosure 2: bottom EMM, port 2 to storage controller 1: port 2
Connect the Back-End Cabling 53

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
