SCv3000 and SCv3020 Storage System Hardware
The SCv3000 and SCv3020 storage system ships with Dell Enterprise Plus Value drives, two redundant power supply/cooling fan modules,
and two redundant storage controllers.
Each storage controller contains the front-end, back-end, and management communication ports of the storage system.
SCv3000 and SCv3020 Storage System Front-Panel View
The front panel of the storage system contains power and status indicators, and a system identication button.
In addition, the hard drives are installed and removed through the front of the storage system chassis.

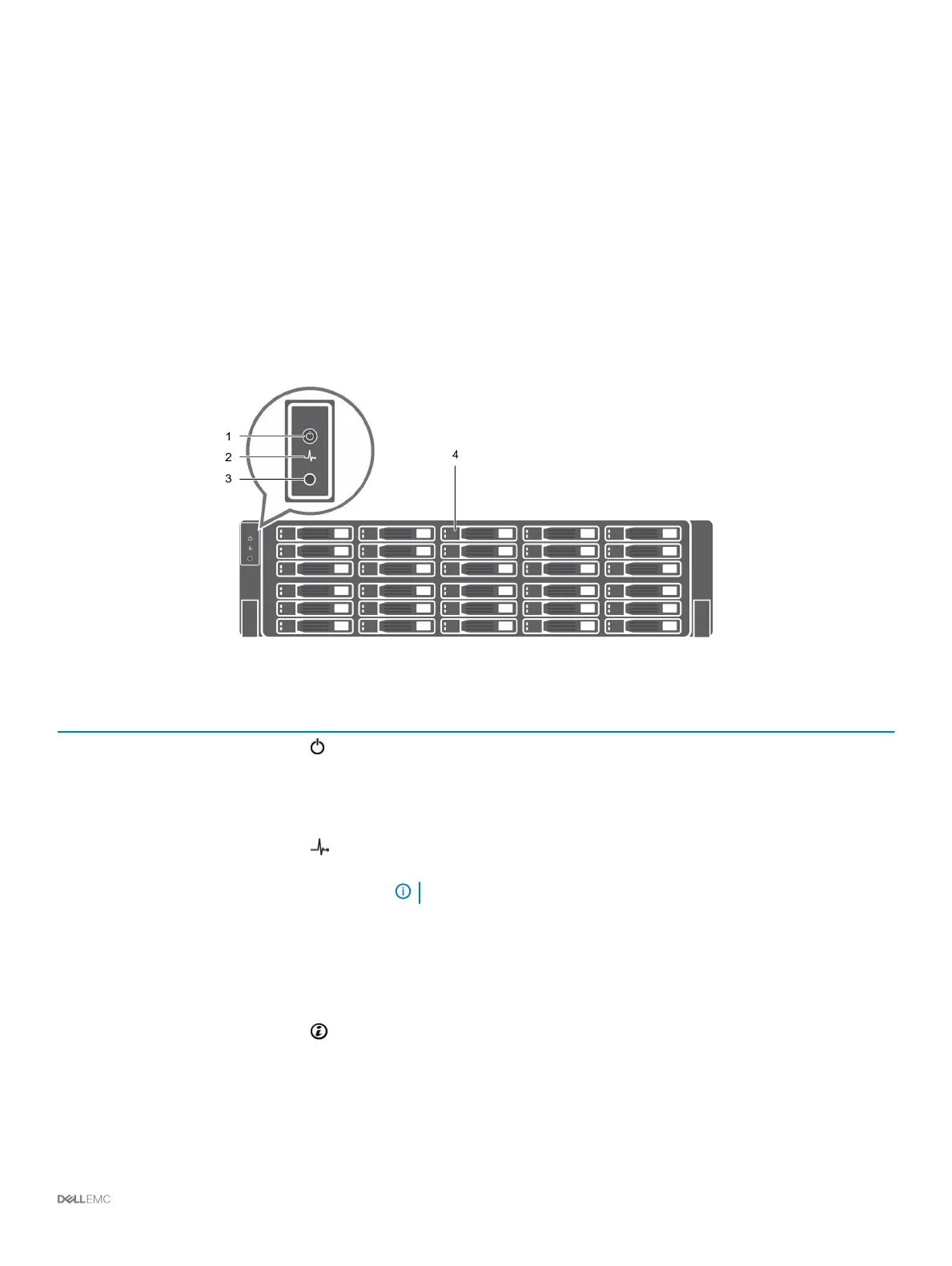

Figure 7. SCv3000 and SCv3020 Storage System Front-Panel View
Item
Name Icon Description
1 Power indicator Lights when the storage system power is on
• O – No power
• On steady green – At least one power supply is providing power to the storage
system
2 Status indicator Lights when the startup process for both storage controllers is complete with no
faults detected.
NOTE: The startup process can take 5–10 minutes or more.
• O – One or both storage controllers are running startup routines, or a fault
has been detected during startup
• On steady blue – Both storage controllers have completed the startup process
and are in normal operation
• Blinking amber – Fault detected
3 Identication button Blinking blue continuously – A user sent a command to the storage system to
make the LED blink so that the user can identify the storage system in the rack.
• The identication LED blinks on the control panel of the chassis, to allow users
to nd the storage system when looking at the front of the rack.
• The identication LEDs on the storage controllers also blink, which allows users
to nd the storage system when looking at the back of the rack.
About the SCv3000 and SCv3020 Storage System 17

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
