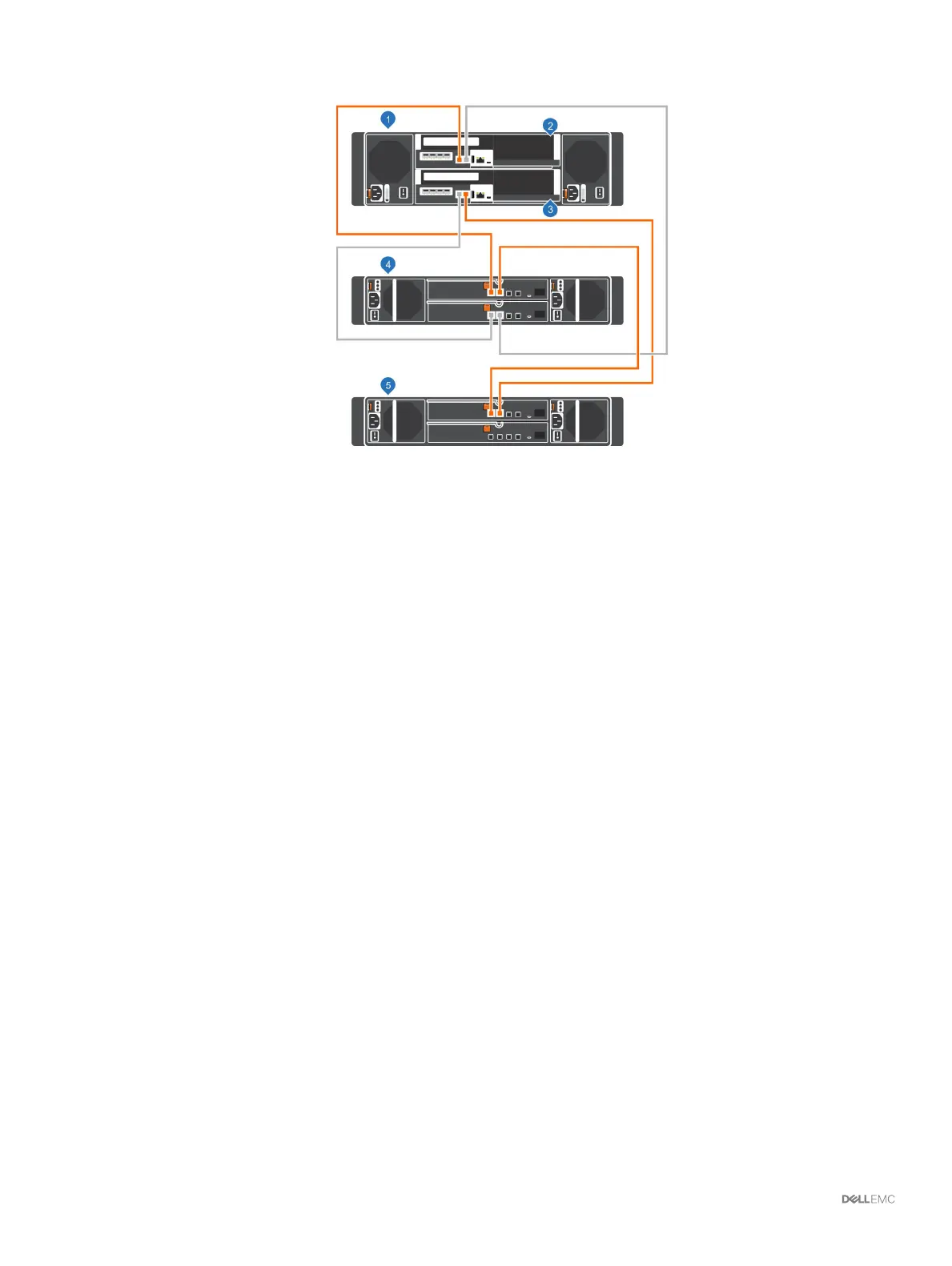

Figure 61. Connect A-Side Cables to the New Expansion Enclosure
1
Storage system 2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure 1
5 New expansion enclosure (2)
5 Label the back-end cables.
Add an SCv300 and SCv320 Expansion Enclosure to the B-
Side of the Chain
Connect the expansion enclosure to one side of the chain at a time to maintain drive availability.
1 Disconnect the B-side cable (shown in blue) from the expansion enclosure: bottom EMM, port B. The A-side cables continue to carry
I/O while the B-side is disconnected.
80
Adding or Removing Expansion Enclosures

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
