Dell SCv3000 Deployment Guide

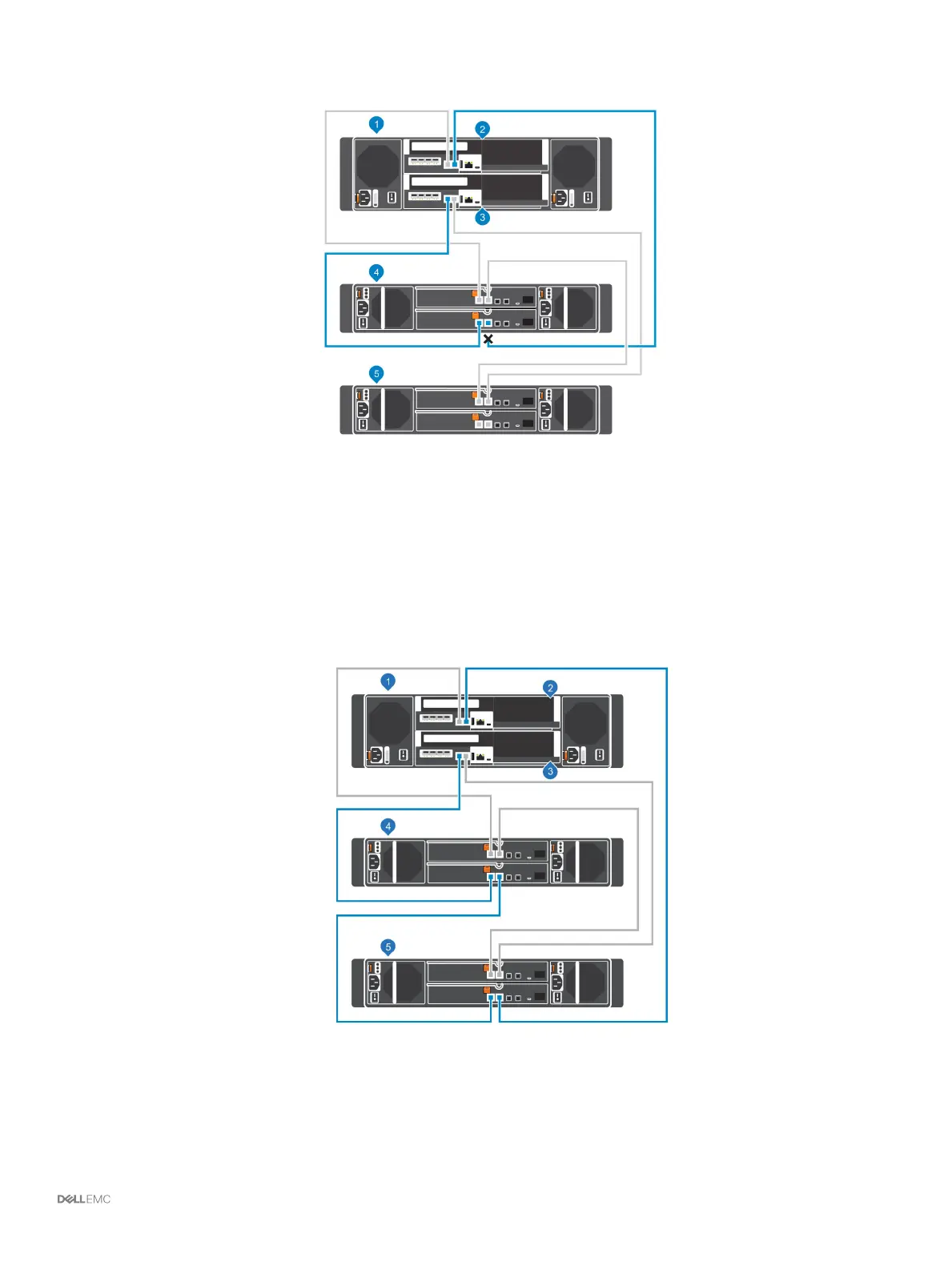

Figure 62. Disconnect B-Side Cable from the Existing Expansion Enclosure
1 Storage system 2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure 1
5 New expansion enclosure (2)
2 Use a new SAS cable to connect expansion enclosure 1: bottom EMM, port 2 to the new expansion enclosure (2): bottom EMM, port
1.
3 Connect the B-side cable that was disconnected in step 1 to the new expansion enclosure (2): bottom EMM, port 2.
Figure 63. Connect B-Side Cables to the New Expansion Enclosure
1
Storage system 2 Storage controller 1
Adding or Removing Expansion Enclosures 81

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
