Dell SCv3000 Deployment Guide

Example

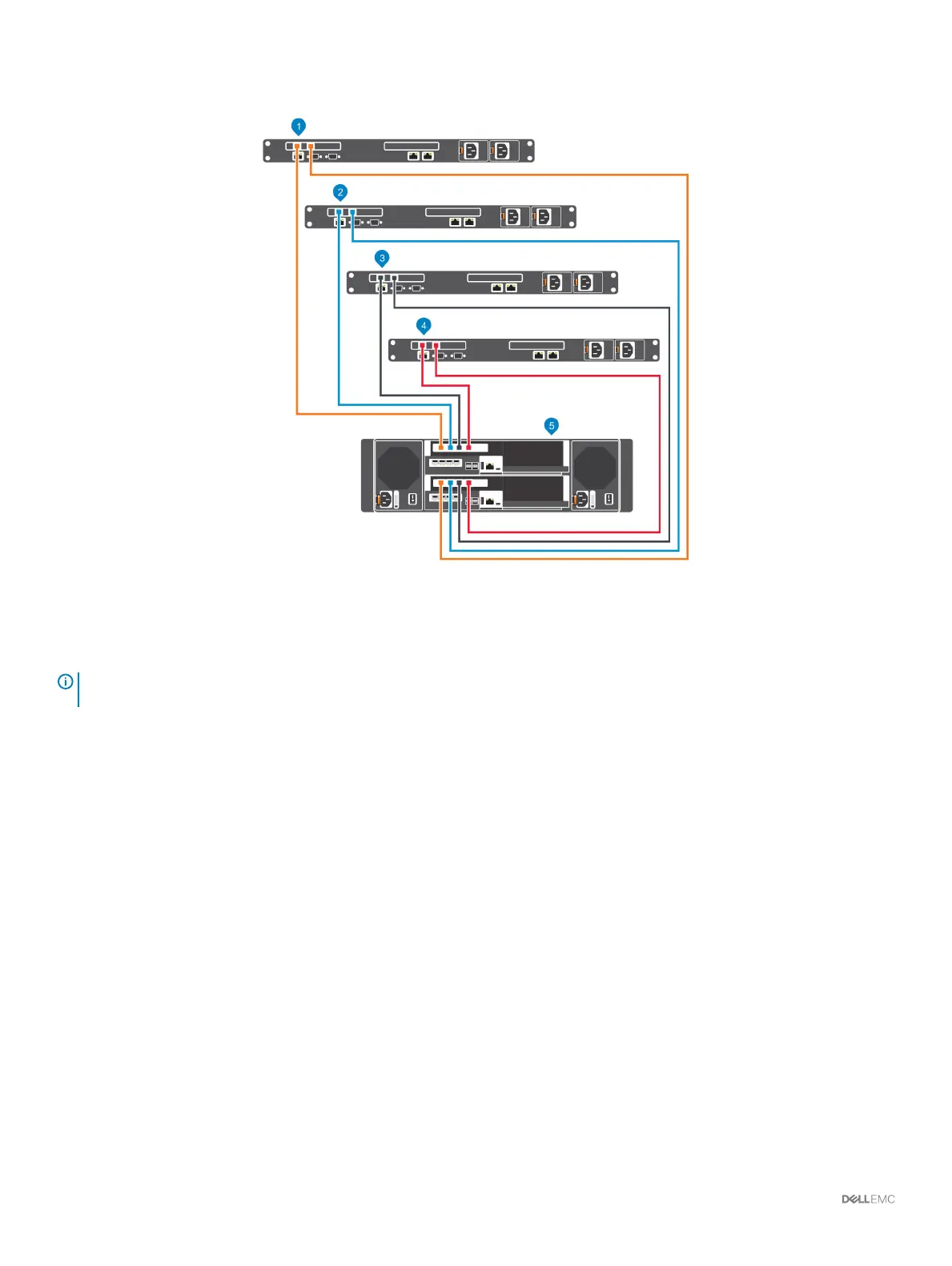

Figure 39. Storage System with Two 4-Port SAS Storage Controllers Connected to Four Host Servers with One SAS HBA per Server
Next step
Install or enable MPIO on the host servers.
NOTE
: For the latest best practices, see the Dell Storage Center Best Practices document on the Dell TechCenter site (http://
en.community.dell.com/techcenter/storage/).
Labeling the Front-End Cables
Label the front-end cables to indicate the storage controller and port to which they are connected.
Prerequisite
Locate the pre-made front-end cable labels that shipped with the storage system.
About this task
Apply cable labels to both ends of each cable that connects a storage controller to a front-end fabric or network, or directly to host servers.
Steps
1 Starting with the top edge of the label, attach the label to the cable near the connector.
46
Connect the Front-End Cabling

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
