• Connect port 1 of the Fibre Channel HBA in the bottom storage controller to switch 1.
3 Connect Storage Center fault domain 2 (shown in blue) to fabric 2.
• Connect port 2 of the Fibre Channel HBA in the top storage controller to switch 2.
• Connect port 2 of the Fibre Channel HBA in the bottom storage controller to switch 2.
Cable the Storage System with 4-Port Fibre Channel IO Cards
Connect the Fibre Channel ports on the storage controllers to host servers with Fibre Channel HBAs. The Fibre Channel ports of the
storage controllers connect to the host servers through the Fibre Channel switches in the SAN.
About this task

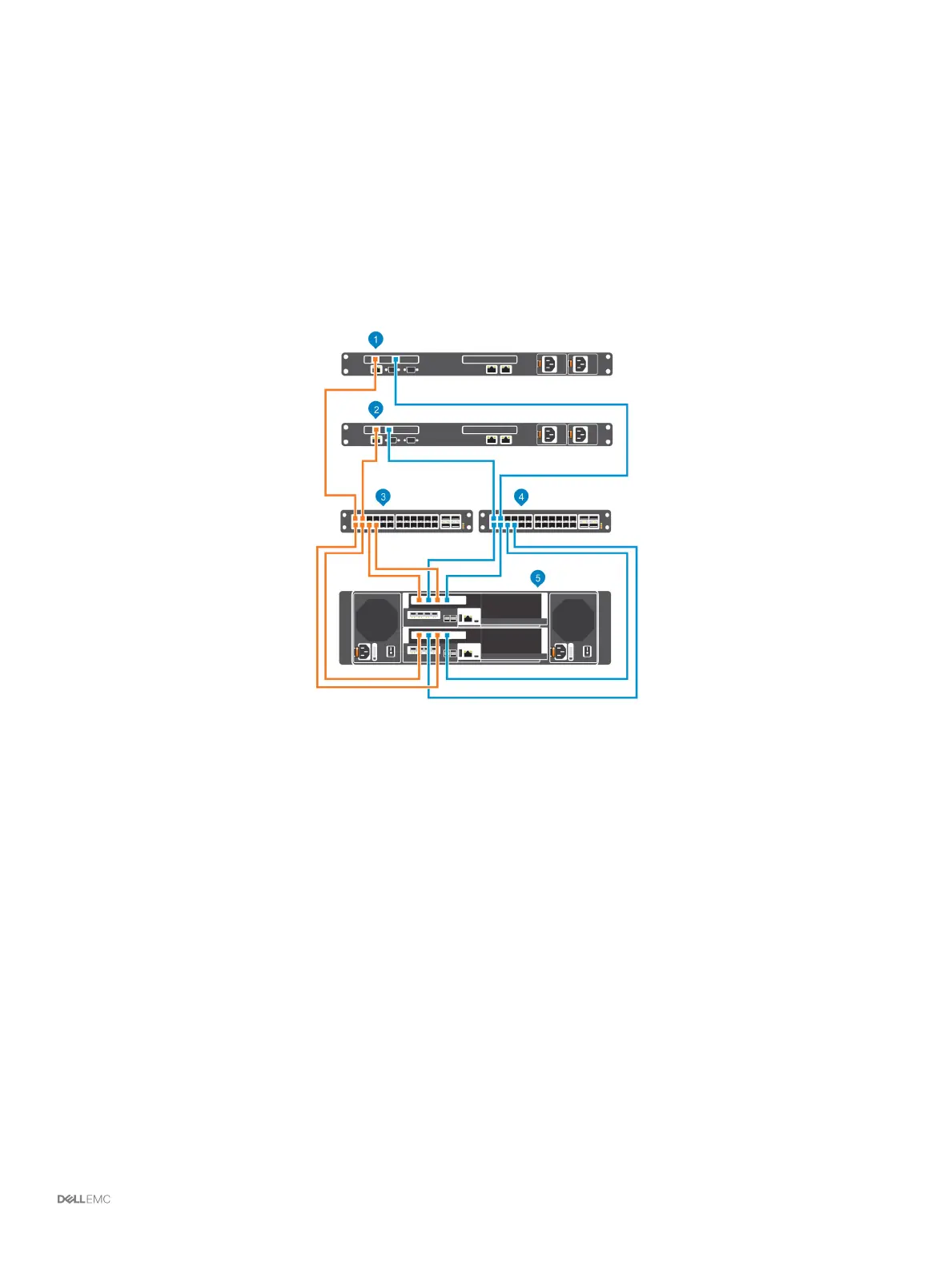

Figure 31. Connect the Storage System to Fibre Channel Host Servers
1
Host server 2 Host server
3 Fibre Channel switch 1 (member of fault domain 1) 4 Fibre Channel switch 2 (member of fault domain 2)
5 SCv3000 and SCv3020 storage system
Steps
1 Connect each host server to both Fibre Channel fabrics.
2 Connect fault domain 1 (shown in orange) to fabric 1.
• Connect port 1 of the Fibre Channel HBA in the top storage controller to switch 1.
• Connect port 3 of the Fibre Channel HBA in the top storage controller to switch 1.
• Connect port 1 of the Fibre Channel HBA in the bottom storage controller to switch 1.
• Connect port 3 of the Fibre Channel HBA in the bottom storage controller to switch 1.
3 Connect fault domain 2 (shown in blue) to fabric 2.
• Connect port 2 of the Fibre Channel HBA in the top storage controller to switch 2.
• Connect port 4 of the Fibre Channel HBA in the top storage controller to switch 2.
• Connect port 2 of the Fibre Channel HBA in the bottom storage controller to switch 2.
• Connect port 4 of the Fibre Channel HBA in the bottom storage controller to switch 2.
Connect the Front-End Cabling
39

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
