Dell SCv3000 Deployment Guide

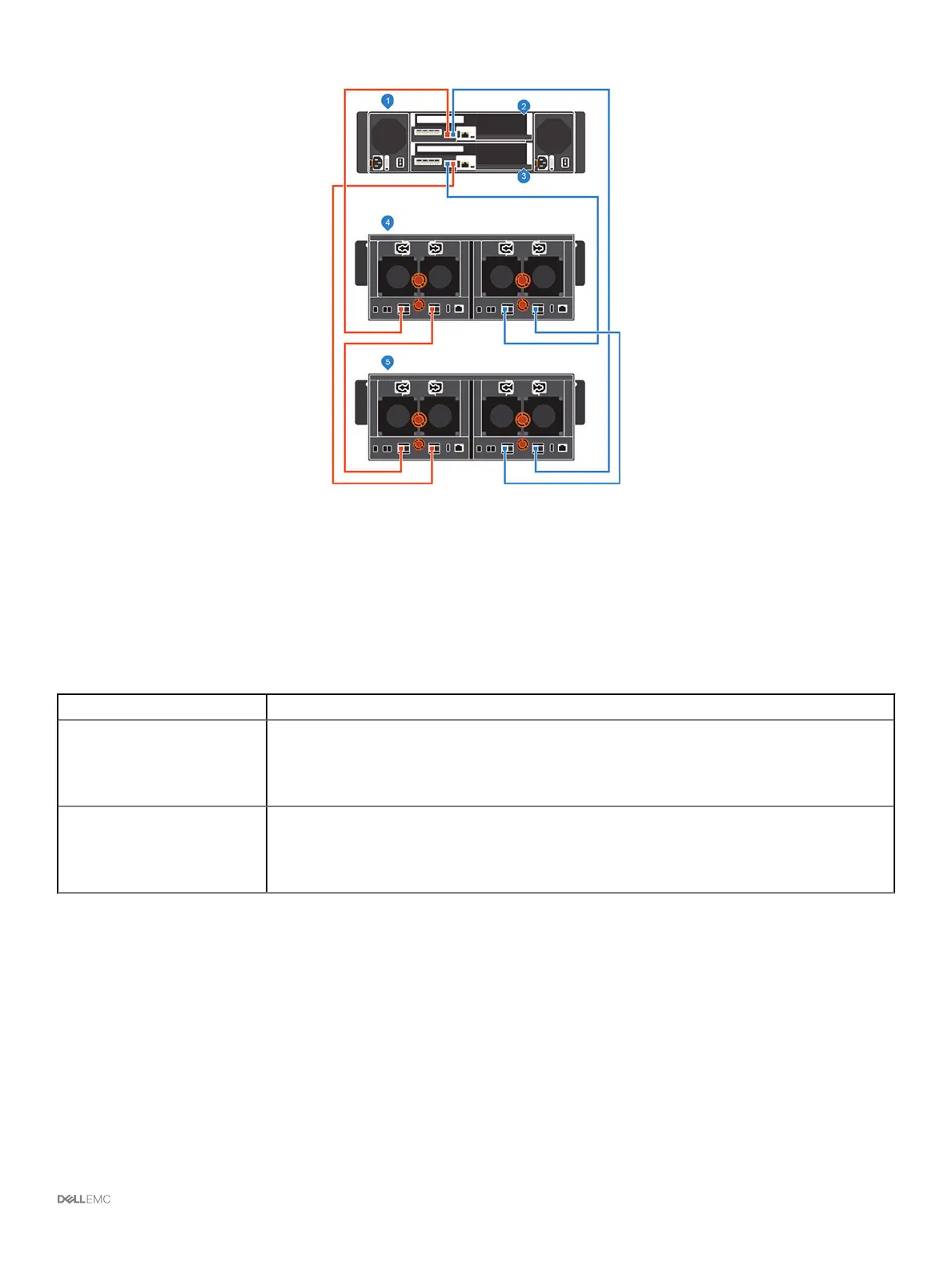

Figure 48. SCv3000 and SCv3020 and Two SCv360 Expansion Enclosures
1
Storage system 2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure 1
5 Expansion enclosure 2
The following table describes the back-end SAS connections from an SCv3000 and SCv3020 storage system to two SCv360 expansion
enclosures.
Table 5.
SCv3000 and SCv3020 and Two SCv360 Expansion Enclosures
Path Connections
Chain 1: Side A (orange)
1 Storage controller 1: port 1 to expansion enclosure 1: left EMM, port 1
2 Expansion enclosure 1: left EMM, port 3 to expansion enclosure 2: left EMM, port 1
3 Expansion enclosure 2: left EMM, port 3 to storage controller 2: port 2
Chain 1: Side B (blue)
1 Storage controller 2: port 1 to expansion enclosure 1: right EMM, port 1
2 Expansion enclosure 1: right EMM, port 3 to expansion enclosure 2: right EMM, port 1
3 Expansion enclosure 2: right EMM, port 3 to storage controller 1: port 2
Label the Back-End Cables
Label the back-end cables that interconnect the storage controllers or label the back-end cables that connect the storage system to the
expansion enclosures.
Prerequisite
Locate the cable labels provided with the expansion enclosures.
About this task
Apply cable labels to both ends of each SAS cable to indicate the chain number and side (A or B).
Steps
1 Starting with the top edge of the label, attach the label to the cable near the connector.
Connect the Back-End Cabling
55

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
