Dell SCv3000 Deployment Guide

SCv3000 and SCv3020 and One SCv300 and SCv320
Expansion Enclosure

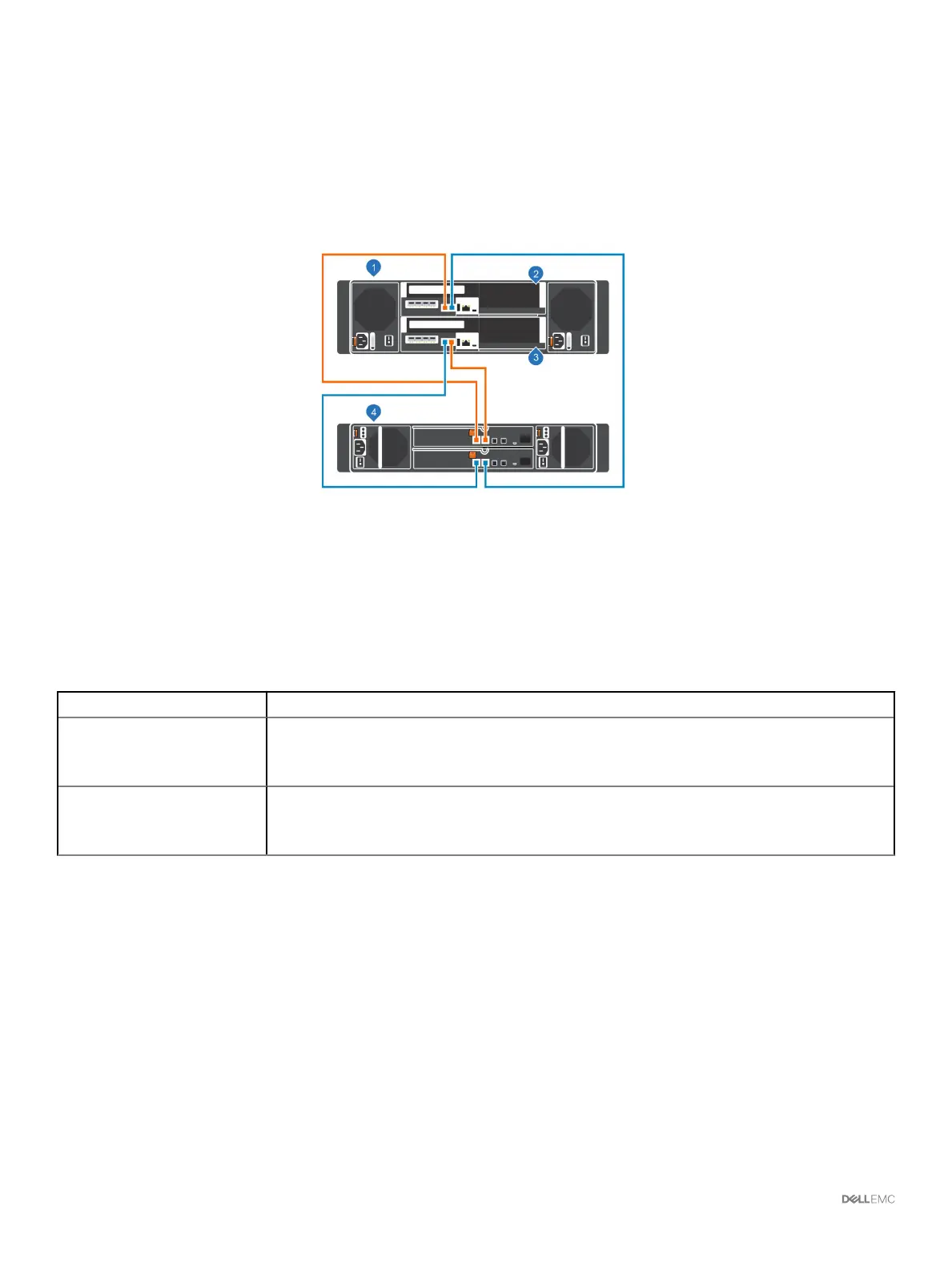

This gure shows an SCv3000 and SCv3020 storage system cabled to one SCv300 and SCv320 expansion enclosure.
Figure 45. SCv3000 and SCv3020 and One SCv300 and SCv320 Expansion Enclosure
1
Storage system 2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure
The following table describes the back-end SAS connections from an SCv3000 and SCv3020 storage system to one SCv300 and SCv320
expansion enclosure.
Table 2.
SCv3000 and SCv3020 Connected to One SCv300 and SCv320 Expansion Enclosure
Path Connections
Chain 1: Side A (orange)
1 Storage controller 1: port 1 to the expansion enclosure: top EMM, port 1
2 Expansion enclosure: top EMM, port 2 to storage controller 2: port 2
Chain 1: Side B (blue)
1 Storage controller 2: port 1 to the expansion enclosure: bottom EMM, port 1
2 Expansion enclosure: bottom EMM, port 2 to storage controller 1: port 2
52 Connect the Back-End Cabling

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
