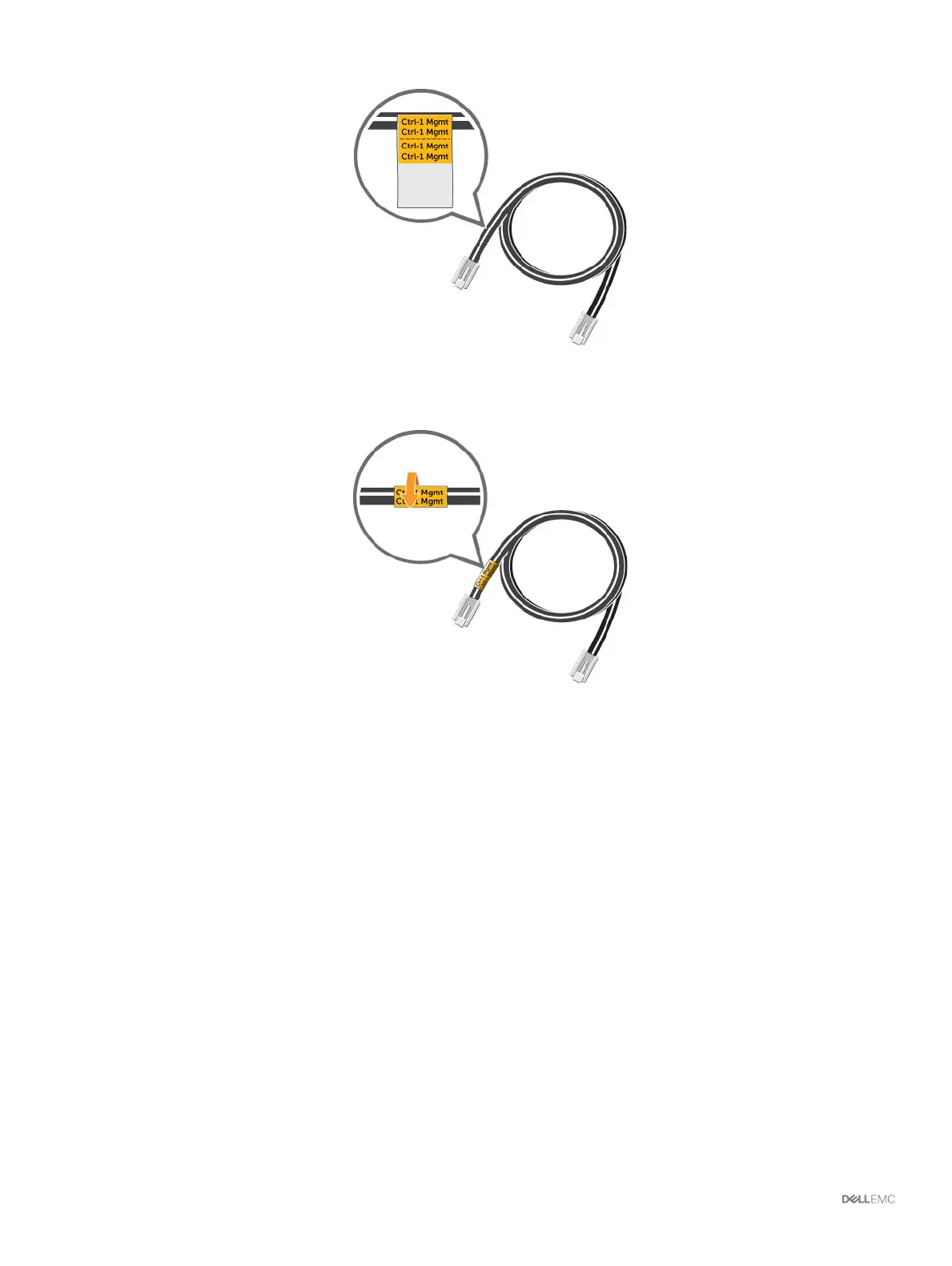

Figure 43. Attach Label to Cable
2 Wrap the label around the cable until it fully encircles the cable. The bottom of each label is clear so that it does not obscure the text.
Figure 44. Wrap Label Around Cable
3 Apply a matching label to the other end of the cable.
50
Connect the Front-End Cabling
