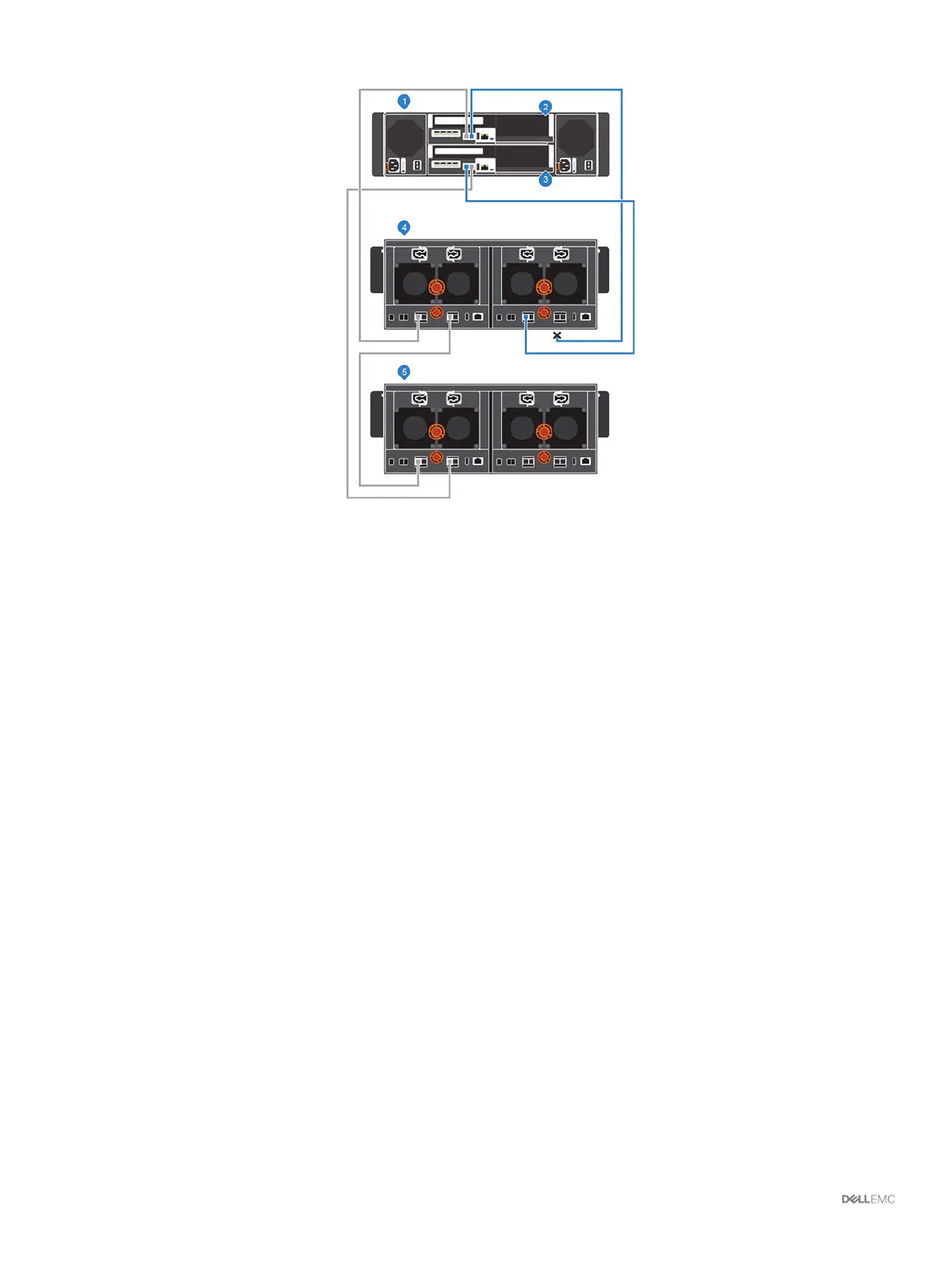

Figure 66. Disconnect B-Side Cable from the Existing Expansion Enclosure
1
Storage system 2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure 1
5 New expansion enclosure (2)
2 Use a new SAS cable to connect expansion enclosure 1: right EMM, port 3 to the new expansion enclosure (2): right EMM, port 1.
3 Connect the B-side cable that was disconnected in step 1 to the new expansion enclosure (2): right EMM, port 3.
84
Adding or Removing Expansion Enclosures
