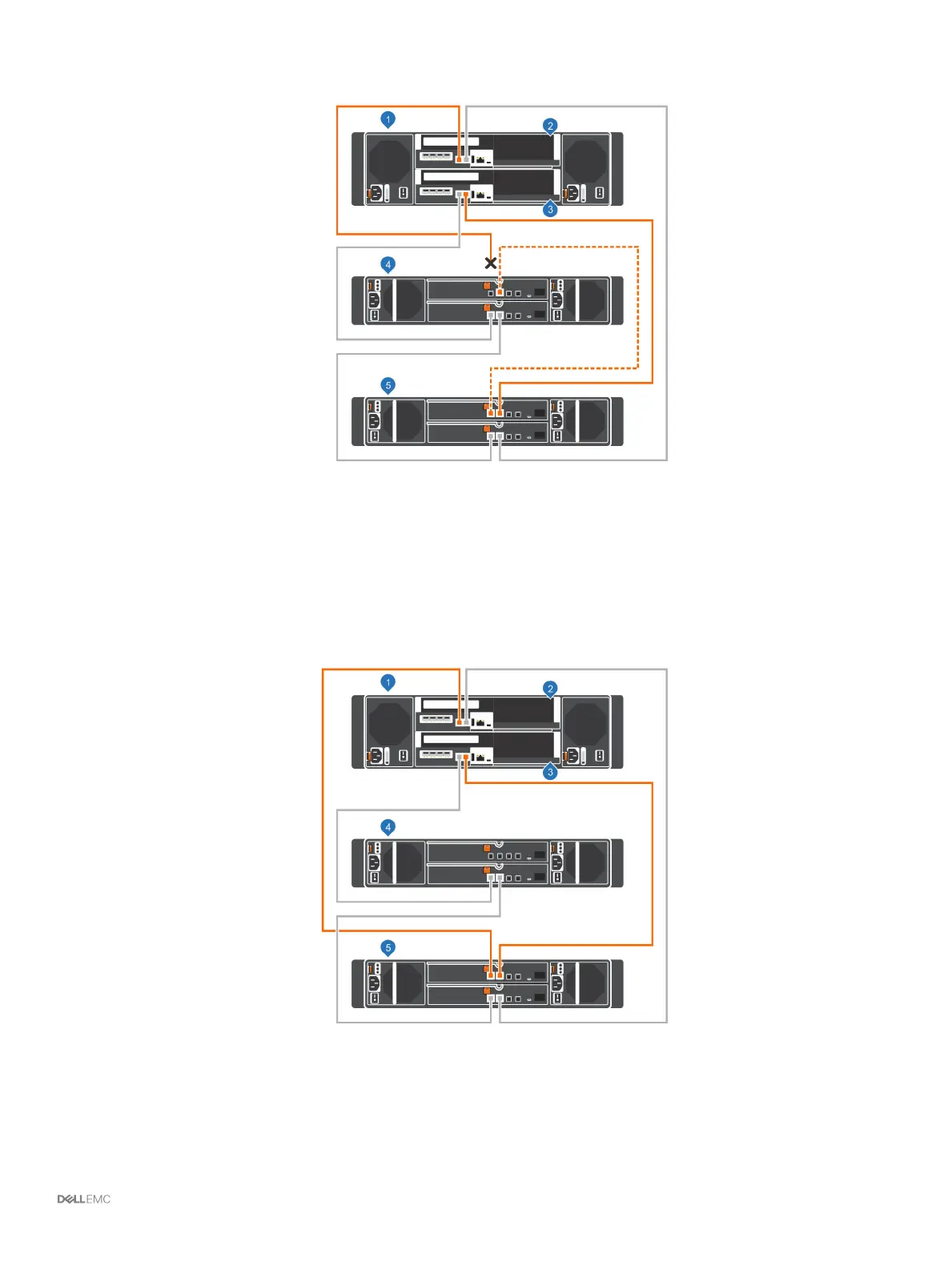

Figure 68. Disconnecting the A-Side Cables from the Expansion Enclosure
1
Storage system
2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure 1
5 Expansion enclosure 2
3 Connect the A-side cable to expansion enclosure 2: top EMM, port 1.
Figure 69. Reconnecting the A-Side Cable to the Remaining Expansion Enclosure
1
Storage system
2 Storage controller 1
Adding or Removing Expansion Enclosures 87
