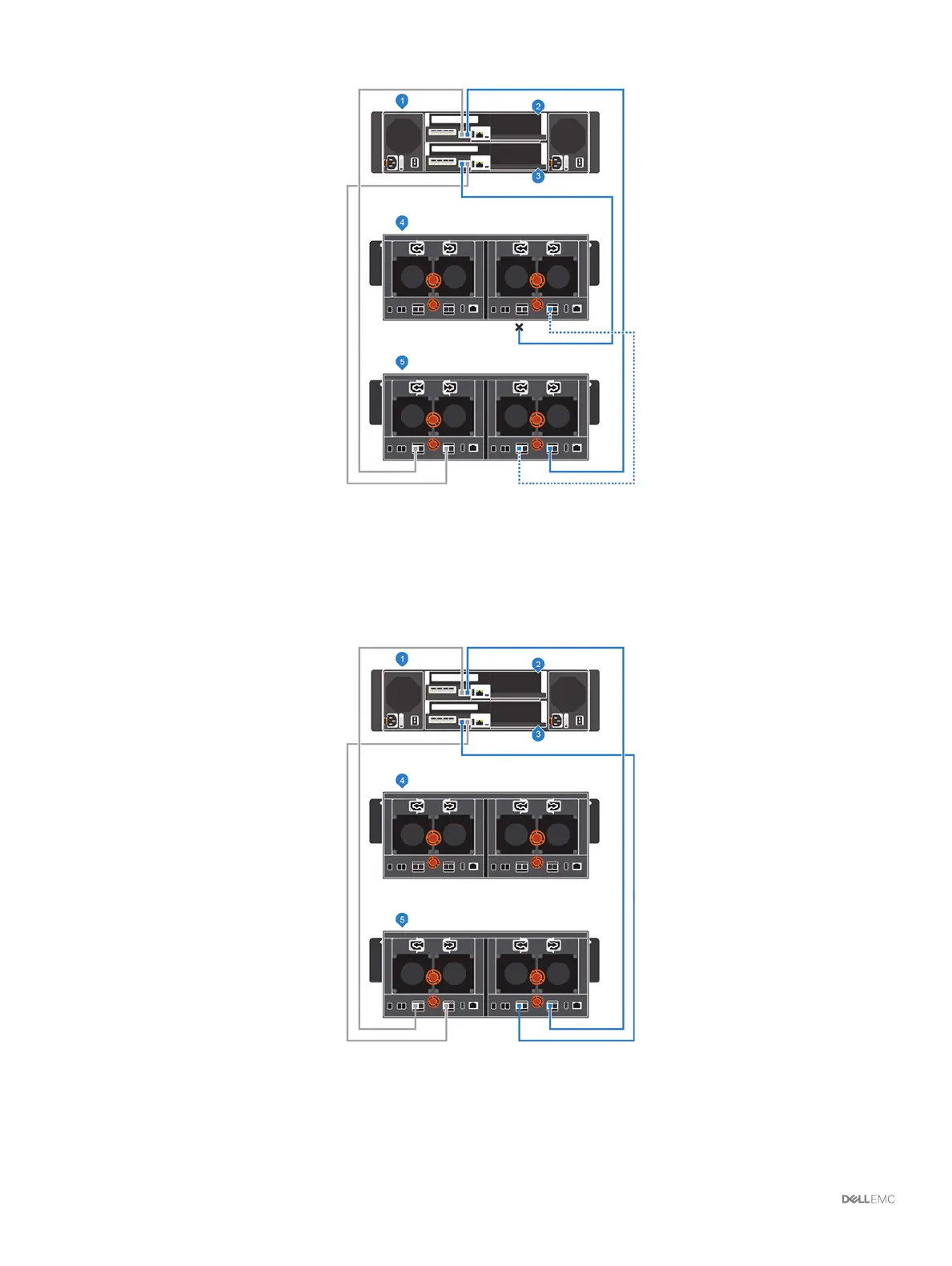

Figure 74. Disconnecting the B-Side Cables from the Expansion Enclosure
1
Storage system
2 Storage controller 1
3 Storage controller 2 4 Expansion enclosure
3 Connect the B-side cable to expansion enclosure 2: right EMM, port 1.
The expansion enclosure is now disconnected and can be removed.
Figure 75. Reconnecting the B-Side Cable to the Remaining Expansion Enclosure
1
Storage system
2 Storage controller 1
92 Adding or Removing Expansion Enclosures
