Chapter 6 Control Modes of Operation ASDA-B2
6-4 Revision September 2013
Please note:
1.

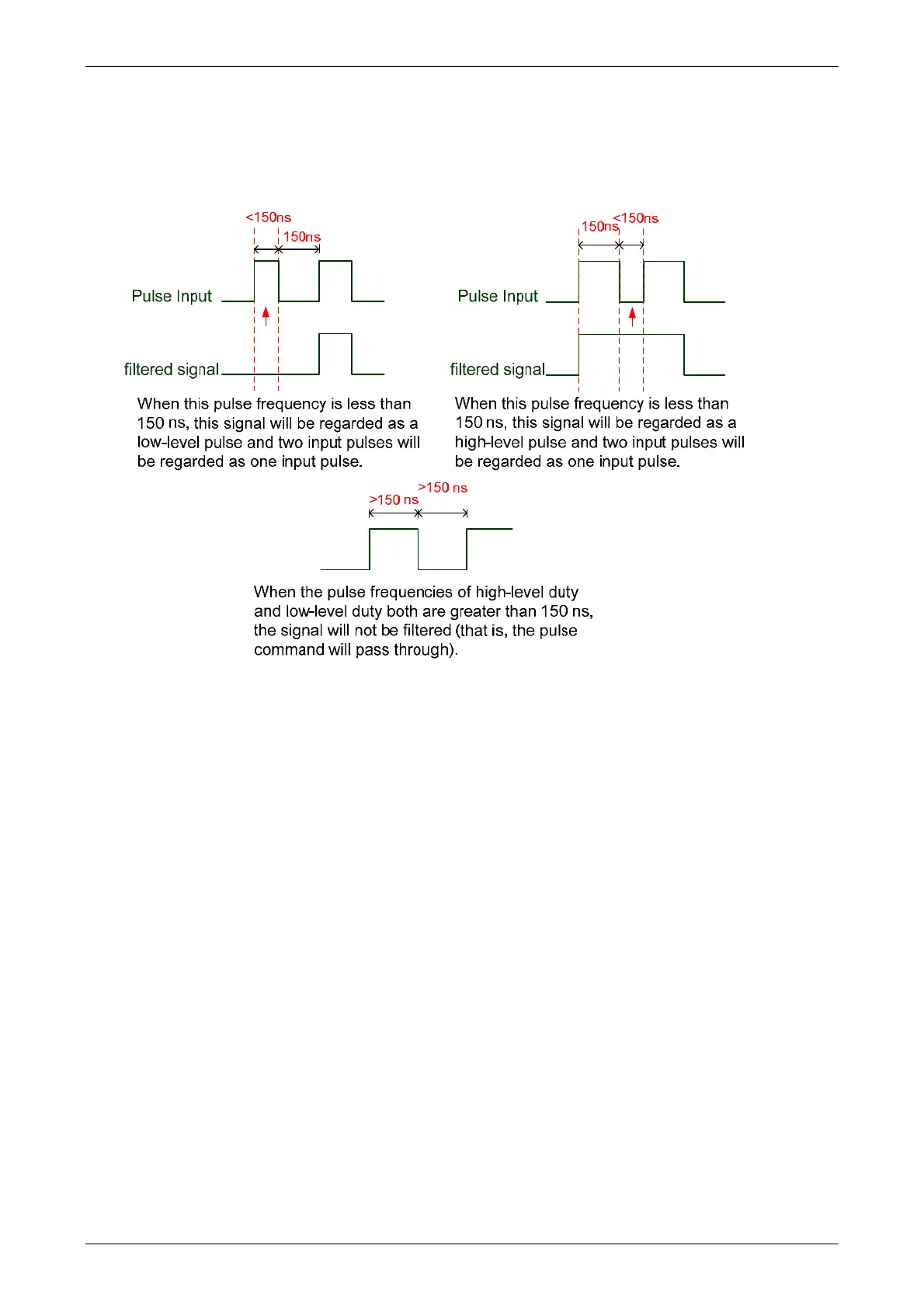

If an input pulse of 2~4MHz is used, it is recommended to change the setting value B (Input
pulse filter) and set this setting value to 4. Please note that this function is available for DSP
version V1.036 sub05, CPLD version V10 and later models only.
Note: If the signal is a 4Mpps high input pulse, setting the value B to 4 is able to ensure that the
signal will not be filtered and will be certainly delivered.
