Delta Electronics ASDA-B2 series User Manual

Chapter 6 Control Modes of Operation ASDA-B2
6-44 Revision September 2013
MON2 output voltage= 8 ×
Motor toque
(unit: Volts)
(Max. motor torque ×
P1-05
)
100

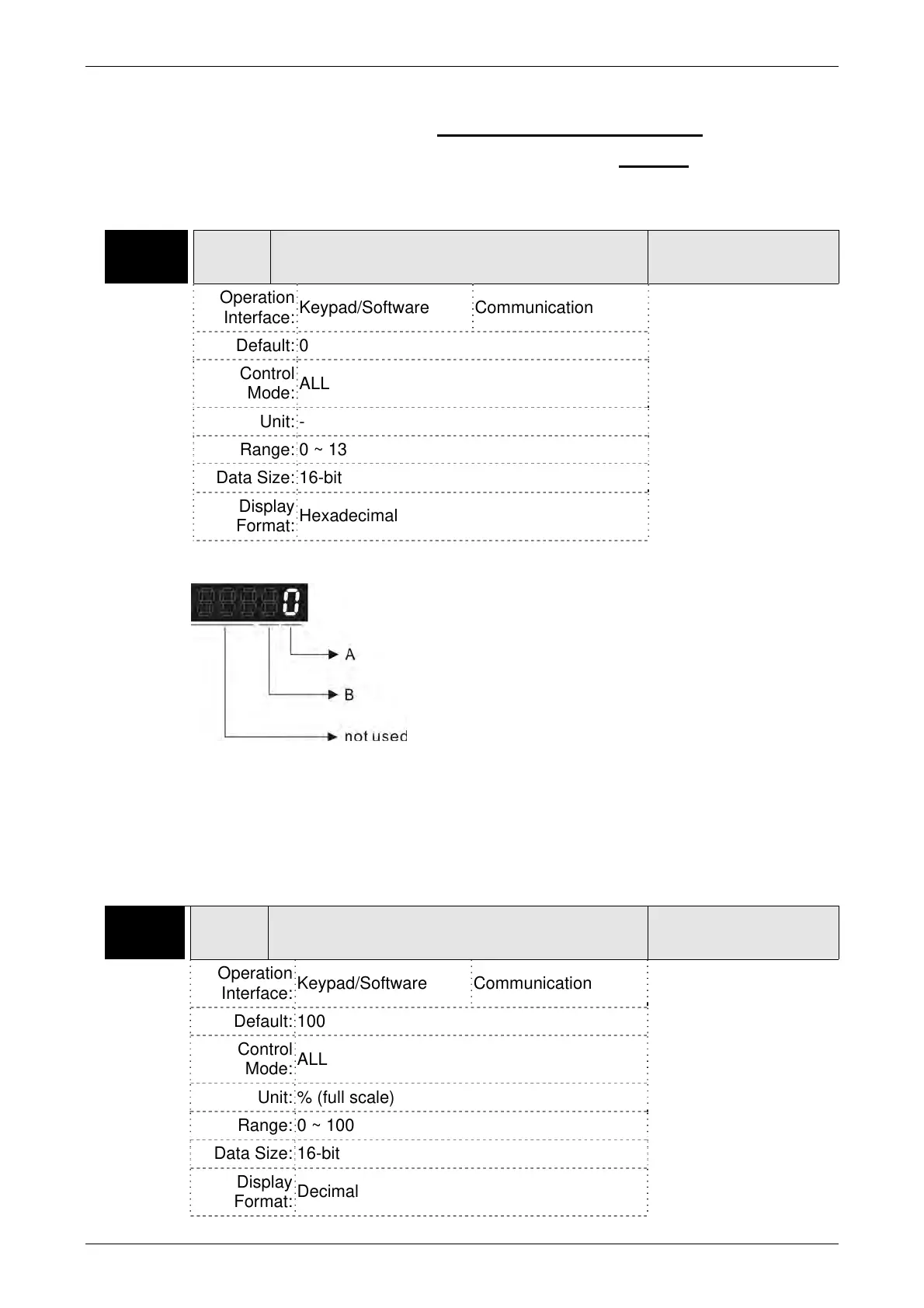

P1-03 AOUT Pulse Output Polarity Setting
Address: 0106H
0107H
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 3.3.3
Default: 0
Control
Mode:
ALL
Unit: -
Range: 0 ~ 13
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings:
A: Analog monitor outputs polarity
0: MON1(+), MON2(+)
1: MON1(+), MON2(-)
2: MON1(-), MON2(+)
3: MON1(-), MON2(-)
B: Position pulse outputs polarity
0: Forward output
1: Reverse output
P1-04 MON1 Analog Monitor Output Proportion 1 (MON1)
Address: 0108H
0109H
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 6.4.4
Default: 100
Control
Mode:
ALL
Unit: % (full scale)
Range: 0 ~ 100
Data Size: 16-bit
Display
Format:
Decimal
